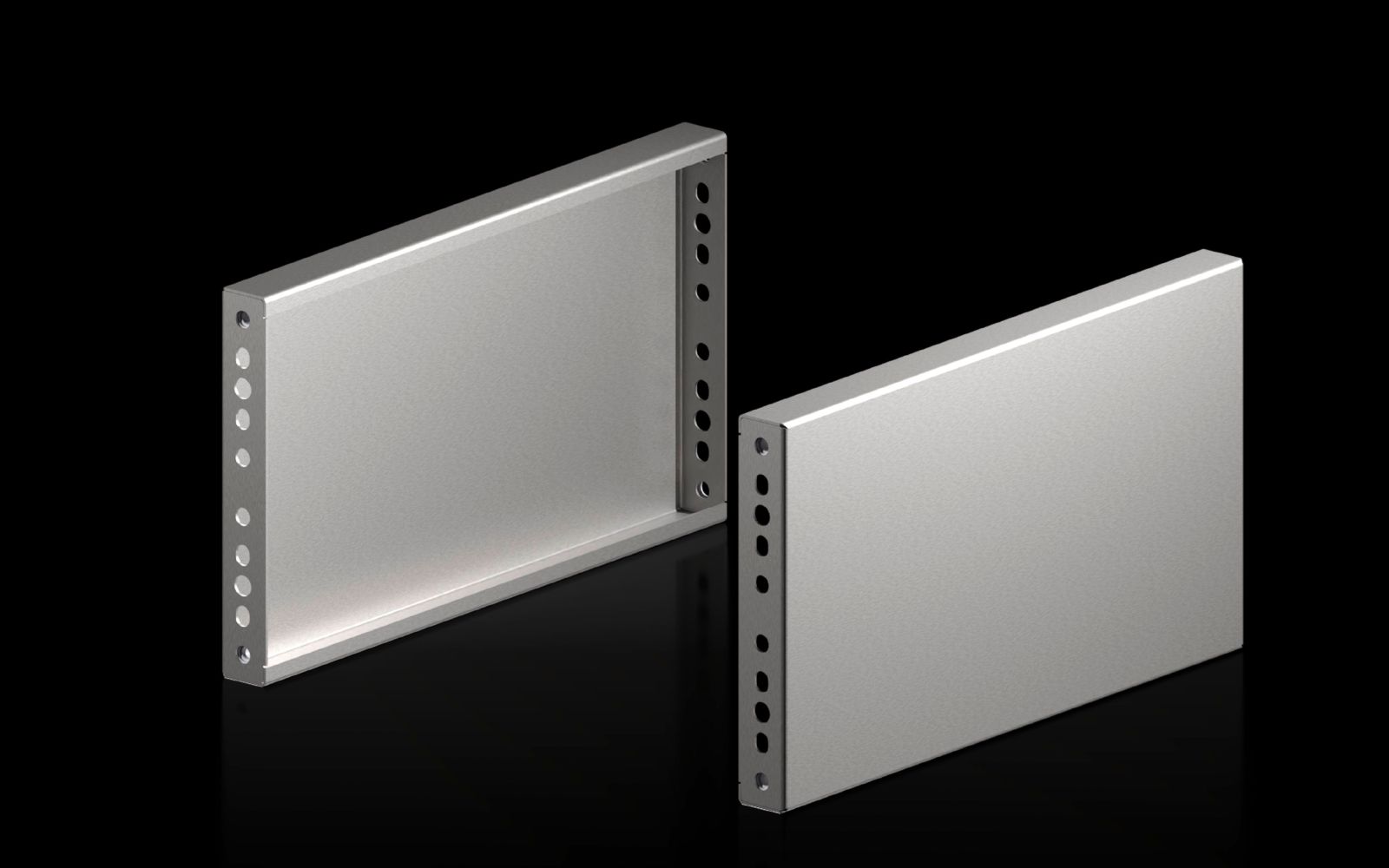

Rittal 8660081 VX VX plinth trim panel 1=2 side H:200 mm for D:500 mm stainless steel

Your rating:
Average rating
product review for Rittal 8660081 VX VX plinth trim panel 1=2 side H:200 mm for D:500 mm stainless steel
( 4 / 5 ) 1 ratings
Rittal 8660081
This image may differ from the desired article.
Rittal 8660081Rittal 8660081Rittal 8660081
-6% 135,36 EUR 144,72 EUR
( 161,08 EUR incl. VAT )
≈ £113.30  |  ≈ $148.76
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 3 pieces
1x Rittal 8660081 VX VX plinth trim panel 1=2 side H:200 mm for D:500 mm stainless steel
Datasheet:file_download Download
Lieske Part No.:877367
Mfg Part No: 8660081
UPC/EAN: 4028177037748
Weight:2.8 kg
Type:VX 8660081

Product information for Rittal 8660081:

The VX plinth trim panel, side, type VX 8660081, from Rittal is an accessory for the plinth system, specifically designed for the lateral finishing covering of plinth units. The product is manufactured from stainless steel 1.4301 (AISI 304), a material known for its high corrosion resistance and mechanical strength. The surface features a brushed finish with grit 400, providing an even, slightly textured appearance and facilitating easy cleaning. The height of the trim panel is 200 mm, and it is designed for enclosures with a depth of exactly 500 mm. The trim panel is compatible with enclosure types VX, VX SE, TS, and PC. The packaging unit includes two pieces, and the delivery scope includes the required mounting hardware.

Applications

The plinth trim panel serves as an optical and functional finishing cover for the lateral edges of plinth units in enclosures. It prevents dust, moisture, or foreign objects from entering the lower section of the enclosure and simultaneously protects the components located below. Its use in industrial environments, particularly in areas with increased requirements for mechanical durability and environmental conditions, is intended. The trim panel is suitable for applications where a clean, closed front appearance of the enclosure is desired, for example in production plants, automation systems, or in process industries.

Functions and Equipment in Detail

The trim panel is designed as a lateral finishing profile and fits precisely into the designated mounting openings of plinth units. The use of stainless steel 1.4301 ensures high resistance to atmospheric influences, chemicals, and mechanical stresses. The brushed surface with grit 400 provides an even, non-reflective surface that integrates well into industrial environments. The included mounting hardware enables secure and durable installation on plinth units.

Technology Explained Simply

The plinth trim panel is a mechanical component that does not perform any electrical or electronic functions. Its main purpose is to cover the lateral edges of plinth units, thereby improving the external appearance of the enclosure. The use of stainless steel 1.4301 (AISI 304) ensures long service life and low maintenance requirements. The brushed surface with grit 400 is a standard finish that is both aesthetically pleasing and functionally advantageous, as it is easy to clean and does not have deep grooves where dirt or moisture could accumulate.

Compatibility and Accessories

The trim panel is specifically designed for plinth units of types VX, VX SE, TS, and PC, which have a depth of 500 mm. Components of the 1st generation of the plinth system are not compatible with those of the 2nd generation, which must be considered during planning and selection of components. The trim panel is part of the plinth system and is used in conjunction with other plinth components such as plinth plates, walls, or corners to ensure a closed and clean enclosure of the lower section of the enclosure.

Mounting and Installation

Installation is carried out at the lateral edges of the plinth units, using the included mounting hardware. The trim panel is inserted into the designated mounting openings and then secured. The installation requires no special tools or additional mounting effort. The precise fit ensures a secure and clean connection without visible gaps or misalignment.

Advantages in Operation

The use of the plinth trim panel improves the external appearance of the enclosure and protects the lower areas from contamination and mechanical damage. The material choice of stainless steel 1.4301 ensures high long-term stability, even under harsh operating conditions. The brushed surface facilitates cleaning and reduces dirt accumulation. Compatibility with the specified enclosure types and precise alignment with a depth of 500 mm ensures seamless integration into existing systems. The delivery with mounting hardware reduces additional purchasing effort and speeds up installation.

Type rating according to UL 50E

The plinth trim panel meets the requirements of the UL 50E standard in categories Type 1, Type 3R, Type 4, Type 4X, and Type 12. These certifications refer to protection against dust, water, mechanical impacts, and other environmental conditions. Type 1 protects against solid foreign objects, Type 3R against rain, Type 4 against splashing water, Type 4X against splashing water and chemical substances, and Type 12 protects against dust and splashing water. These certifications make the trim panel suitable for a wide range of industrial applications, particularly in environments with increased requirements for environmental resistance.

The packaging unit includes two pieces, and the product is delivered with the required mounting hardware. The precise fit and material quality ensure reliable and durable performance in industrial use.

General
MaterialStainless steel 1.4301 (AISI 304)
Surface protectionLinear grind, grit 400
Scope of deliveryIncluding mounting hardware
NoteComponents of the 1st generation of the socket system cannot be combined with components of the 2nd generation of the socket system.
Height200 mm
Suitable forHousing type: VX, VX SE, TS, PC, depth: = 500 mm
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12


Product data sheet
Datasheet for Rittal 8660081, EAN: 4028177037748

Questions & answers

What is the delivery time of Rittal 8660081 VX VX plinth trim panel 1=2 side H:200 mm for D:500 mm stainless steel?

The article Rittal 8660081 VX VX plinth trim panel 1=2 side H:200 mm for D:500 mm stainless steel is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660081 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660081 VX VX plinth trim panel 1=2 side H:200 mm for D:500 mm stainless steel always at the best possible price. We can give you a discount of 2% on Rittal 8660081 VX VX plinth trim panel 1=2 side H:200 mm for D:500 mm stainless steel if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
