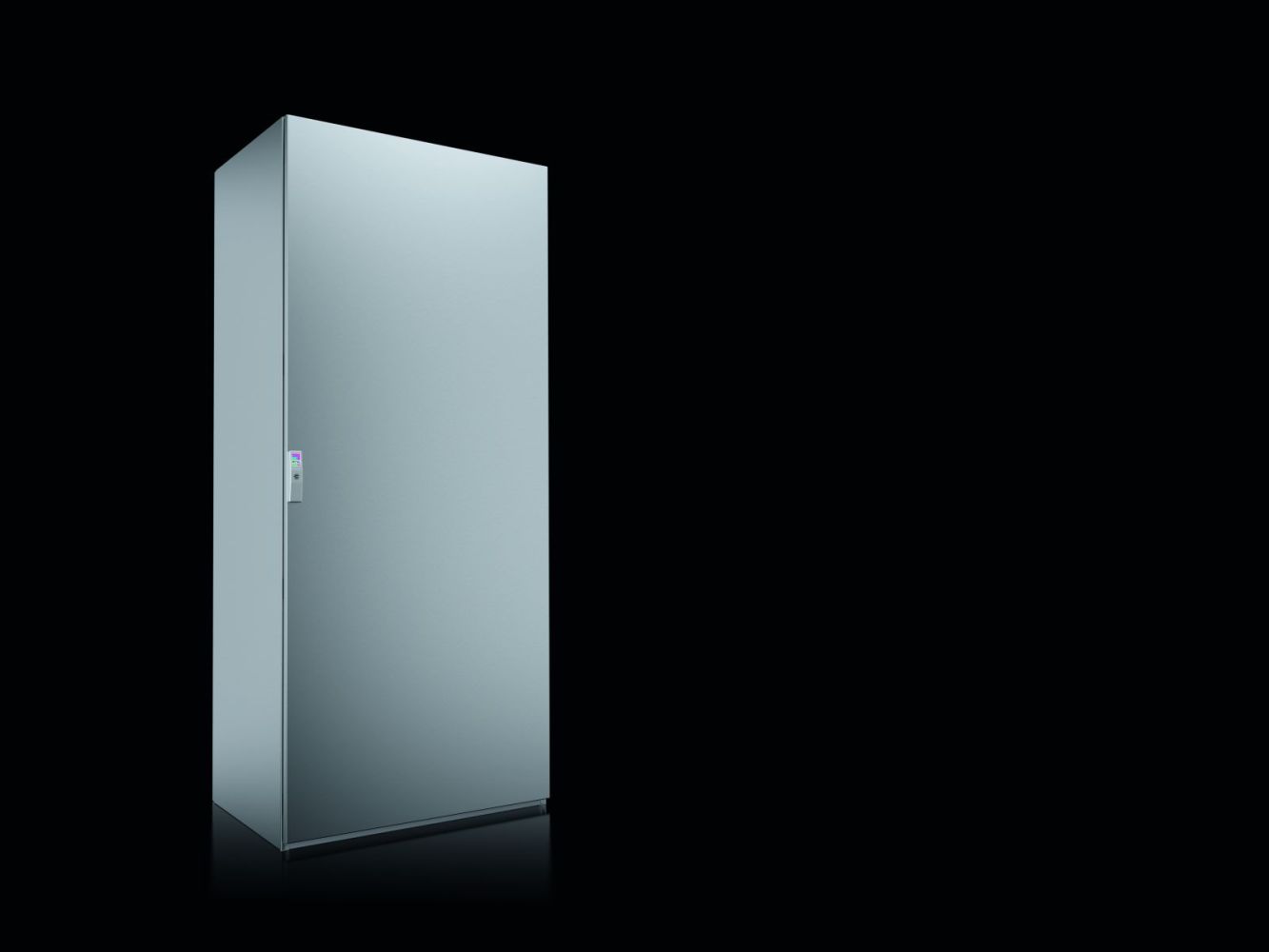

Rittal 5852600 SE system single enclosure 800x1800x500 mm stainless steel
|
2.544,95 EUR |
|
|
( 3.028,49 EUR incl. VAT ) ≈ £2,130.12 | ≈ $2,796.90 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055488 |
| Mfg Part No: | 5852600 |
| UPC/EAN: | 4028177959354 |
| Weight: | 125.35 kg |
| Type: | SE 5852600 |
Product information for Rittal 5852600:
Applications include industrial control systems, automation technology, machine building and plant engineering, particularly in environments with increased humidity, dust load or aggressive atmosphere. The use of stainless steel 1.4301 ensures high corrosion resistance, making the enclosure suitable for outdoor use or in damp-cold production environments. The protection rating IP 55 according to EN 60 529 protects against dust and splashing water from any direction, enabling safe operation in humid or slightly soiled environments. Additionally, the enclosure meets the protection ratings NEMA 3R and NEMA 12 as well as the Type Ratings Type 1, 2, 3, 3R, 12 according to UL 50E. The IK code IK10 guarantees high protection against mechanical impacts, such as shocks or vibrations.
Functions and equipment in detail include a removable rear panel with foamed seal and automatic equipotential bonding. The base group consists of a base frame and multiple divided, movable base plates made of stainless steel 1.4301, which are removable and replaceable. The mounting plate made of steel sheet (3.0 mm) is C-bent on the sides and depth-adjustable in 25 mm increments via integrated plastic gliding pieces and mounting rails. The mounting plate features an integrated mounting grid, simplifying component positioning. The delivery includes two mounting rails (18 x 39 mm).
Technology explained simply shows that the enclosure, door and rear panel have a linear ground surface (grit 400), resulting in a uniform, easy-to-clean surface. The base plates are plain, the mounting plate is galvanized. Material thickness is 1.5 mm for enclosure, rear panel and base plates, and 2.0 mm for the door. The mounting plate is made of 3.0 mm steel sheet. The system perforation in 25 mm grid enables flexible and space-saving mounting of components. The integrated mounting levels in the enclosure and on the vertical profiles support modular construction.
Compatibility and accessories include use with the baying system VX25. Suitable accessories include transport eyes made of stainless steel 1.4301, circuit diagram pockets, system chassis, comfort handles, lock inserts, mounting brackets, C-profile rails, support rollers, 180° hinges, door latches for escape routes, and lock inserts made of zinc die-cast. These components enable application-specific adaptation of the enclosure to different mounting and safety requirements.
Mounting and installation is performed via the pre-fabricated construction, which does not require additional side walls. The mounting plate is depth-adjustable, allowing flexible adaptation to different mounting heights. The base plates are removable, facilitating access to the base area. The door is interchangeable, allowing it to be hinged on the left or right side as required. The use of internal hexagon sheet metal screws 2486.400 is recommended to account for the material hardness of stainless steel.
Operational advantages lie in high corrosion resistance, easy installation, flexible adaptation via accessories, and high mechanical stability. The integrated mounting levels and DIN grid facilitate modular construction. The protection ratings IP 55, NEMA 3R/12 and IK10 ensure reliable operation in demanding environments. The automatic equipotential bonding at door, rear panel and base plates increases electrical safety.
The enclosure is designed for use in industrial plants where high reliability, service-friendliness and long-term stability are required. The materials and construction meet the requirements for industrial enclosures in automation technology and machine building industry.
| General | |
| Material | Housing: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, Door: stainless steel 1.4301 (AISI 304), 2.0 mm, outside brushed finish, Rear panel: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, Base plates: stainless steel 1.4301 (AISI 304), 1.5 mm, Mounting plate: sheet steel, 3.0 mm |
| Surface protection | Housing, door and rear panel: brushed finish, grain 400, base plates: plain, mounting plate: galvanised |
| Scope of delivery | Housing top and sides closed, door(s), for single-door cabinets door hinge on right, changeable to left, rear panel, removable, mounting plate, base plates, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 800 mm |
| Height | 1.800 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Note | Due to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 384,75 |
