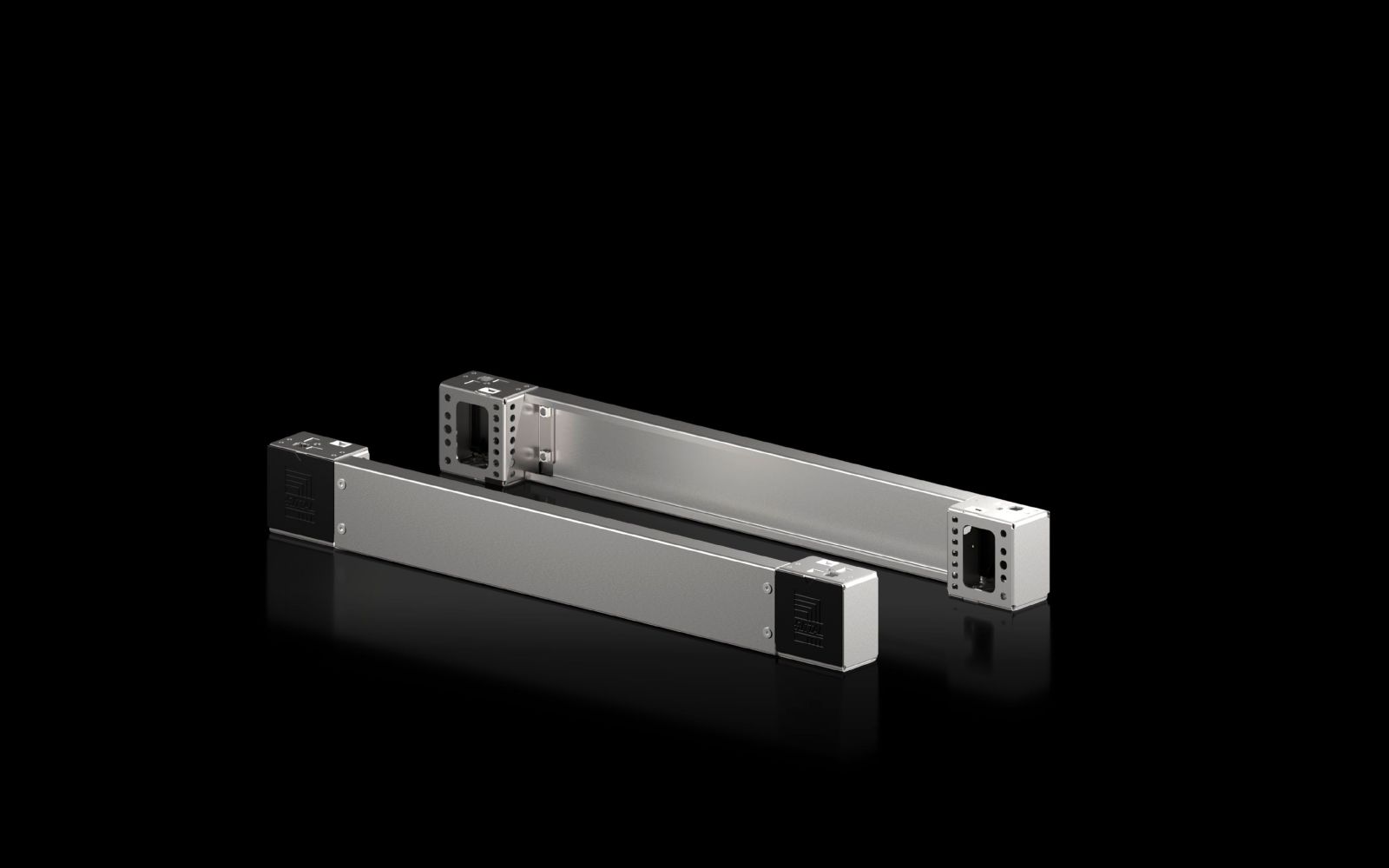

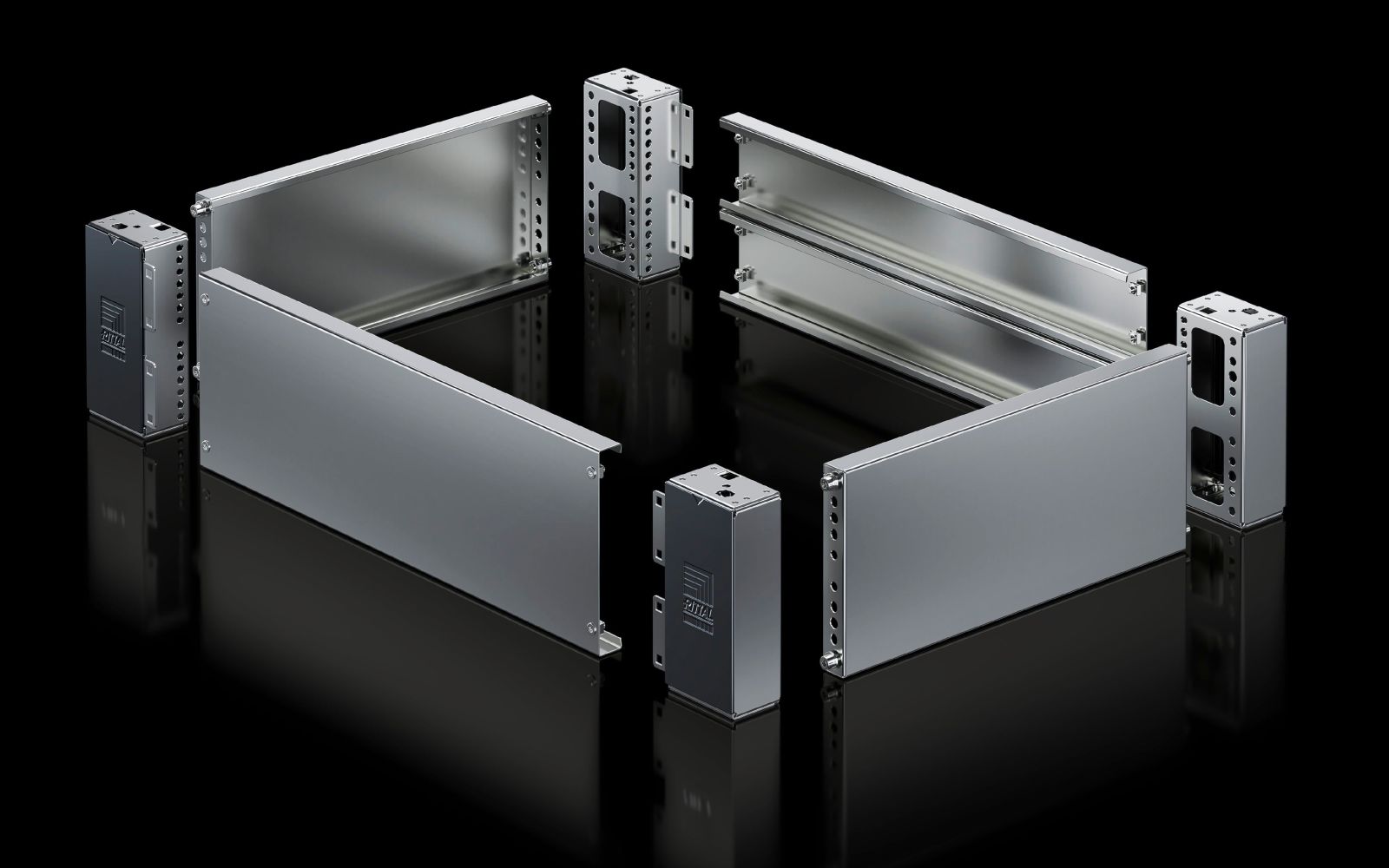

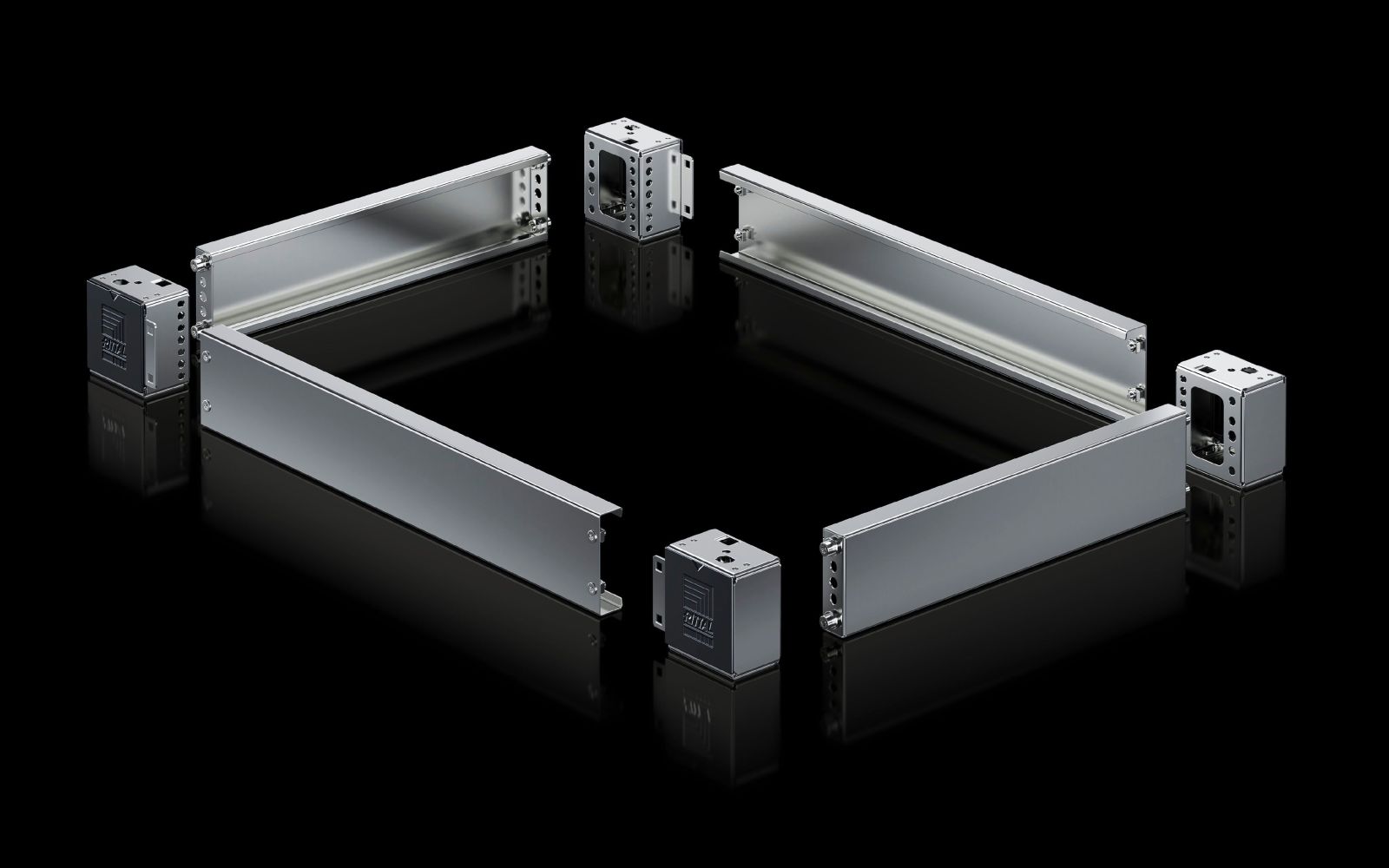

Rittal 8660051 VX plinth corner piece with trim panel, H: 100 mm, W: 800 mm
|
186,84 EUR |
|
|
( 222,34 EUR incl. VAT ) ≈ £156.39 | ≈ $205.34 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 877397 |
| Mfg Part No: | 8660051 |
| UPC/EAN: | 4028177037861 |
| Weight: | 4.826 kg |
| Type: | VX 8660051 |
Product information for Rittal 8660051:
Applications
This plinth corner piece is used in industrial electrical engineering and machine building, where a stable and durable mounting base for enclosures and control systems is required. It is compatible with housing types VX, VX SE, TS, and PC, which have a width of 800 mm. Its use in environments with increased requirements for mechanical stability and resistance to external influences is ensured, as the product meets type ratings according to UL 50E: Type 1, Type 3R, Type 4, Type 4X, and Type 12. These approvals include protection against dust, splashing water, dirt, and other environmental influences, enabling use indoors and outdoors.
Functions and Equipment in Detail
The plinth corner pieces feature large openings that allow optimal access to the screw connections. This significantly simplifies installation and maintenance. The integrated plinth trim panels at the front and rear ensure a clean visual appearance and support stabilization between plinths. The ABS cover caps included in the delivery scope can be replaced, if required, with stainless steel cover caps for the VX plinth system to enhance material consistency.
Technology Explained Simply
The use of stainless steel 1.4301 (AISI 304) ensures high corrosion resistance, especially in humid or aggressive environments. The brushed finish, grain 400, provides a uniform, easy-to-clean surface finish that also achieves a good visual effect. The ABS cover caps are resistant to mechanical stress and chemical influences, making them suitable for industrial applications. The plinth corner pieces are seamlessly bayable, enabling a continuous and stable mounting base.
Compatibility and Accessories
The plinth corner piece is designed for enclosures with a width of 800 mm and fits housing types VX, VX SE, TS, and PC. It is part of the 1st generation plinth system and cannot be combined with components of the 2nd generation. Various mounting accessories are available, including mounting brackets, mounting plates, cable strain relief rails, levelling elements, and plinth adapters. These components enable flexible and stable integration into existing enclosure constructions.
Installation and Mounting
Installation is carried out using the fastening materials included in the delivery scope. The plinth corner pieces are attached to the corners of the plinth unit, with the integrated front and rear trim panels supporting visual and mechanical stability. The large openings in the corner piece facilitate access to the screw connections, reducing installation time and simplifying maintenance.
Operational Advantages
The use of Rittal VX 8660051 provides a stable and durable mounting base for enclosures. The high corrosion resistance of the stainless steel ensures a long service life, even in demanding environments. The integrated trim panels and seamless bayability of the corner pieces ensure a clean and professional appearance. Compatibility with various housing types and the availability of additional components enable flexible adaptation to different requirements.
| General | |
| Material | Socket corner piece: stainless steel 1.4301 (AISI 304), socket faceplate front/back: stainless steel 1.4301 (AISI 304), cover caps: ABS |
| Surface protection | Linear grind, grit 400 |
| Scope of delivery | Including mounting hardware, 4 socket corner pieces, 4 end caps, 2 socket front/rear covers, 100 mm |
| Note | Socket inserts, required on the sides to complete a socket unit and provide additional stabilization between sockets. The included cover caps can be replaced, if required, with stainless steel cover caps for VX socket system, stainless steel. Components of the 1st generation of the socket system cannot be combined with components of the 2nd generation of the socket system. |
| Height | 100 mm |
| Suitable for | Cabinet type: VX, VX SE, TS, PC, width: = 800 mm |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
Questions & answers
What is the delivery time of Rittal 8660051 VX plinth corner piece with trim panel, H: 100 mm, W: 800 mm?
The article Rittal 8660051 VX plinth corner piece with trim panel, H: 100 mm, W: 800 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660051 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8660051 VX plinth corner piece with trim panel, H: 100 mm, W: 800 mm always at the best possible price. We can give you a discount of 2% on Rittal 8660051 VX plinth corner piece with trim panel, H: 100 mm, W: 800 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
