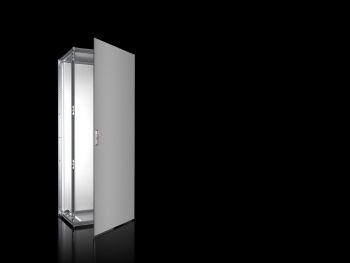

Rittal 8458000 VX bayed enclosure system IP66/NEMA 4x, W x H x D: 800x2000 mm
|
3.904,25 EUR |
|
|
( 4.646,06 EUR incl. VAT ) ≈ £3,267.86 | ≈ $4,290.77 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440952 |
| Mfg Part No: | 8458000 |
| UPC/EAN: | 4028177924482 |
| Weight: | 143.6 kg |
| Type: | VX 8458.000 |
Product information for Rittal 8458000:
Applications
This enclosure system is suitable for use in environments with high requirements for protection against dust, water and mechanical impacts. The protection rating IP 66 according to EN 60 529 ensures complete dust tightness and protection against strong splashing water from any direction. Additionally, the enclosure meets the NEMA classification 4X, enabling use in outdoor or damp, corrosive environments. The type rating according to UL 50E includes categories Type 1, Type 3R, Type 4, Type 4X and Type 12, ensuring worldwide usability in various standards regions. The IK10 rating indicates high mechanical strength against impact loads.
Functions and Equipment in Detail
The enclosure system consists of an enclosure frame made of stainless steel 1.4301 (1.5 mm), a roof (1.5 mm), a front door (2.0 mm), a rear panel (1.5 mm) and a base plate (1.5 mm), all with an externally brushed surface (grit 400). The door is standard right-hinged, but can be tool-free converted to left-hinged. The door is fitted with a PU foam seal and features a bar lock with 3 mm double-bar lock insert according to DIN 43668, providing a four-point locking mechanism. The door opening angle is 130° and can be tool-free extended to 180°. The clearance from the floor is 17 mm.
Technology Explained Simply
The construction is based on a symmetrical profile frame structure with closed and profiled hollow profiles, which are perforated in a 25 mm grid. This enables flexible component mounting and quick installation. The horizontal profiles feature a groove above the seal, providing additional protection. The mounting plate is C-flanged on the sides and depth-adjustable via integrated plastic glides and reusable mounting rails. The entire structure is designed for a load capacity up to 15,000 N. The inner side of the enclosure frame offers two mounting levels, accessible from inside and outside, simplifying internal installation.
Compatibility and Accessories
The system is compatible with standard baying connectors VX, enabling baying combinations while maintaining the protection rating IP 66/NEMA 4X. Suitable accessories include stainless steel 1.4301 lifting eyes, circuit diagram pockets, VX plinth corner pieces with trim panel, VX system chassis, baying brackets, comfort handles for lock inserts, cable strain relief rail, side panels, swing frames and partial mounting plates. These components allow individual adaptation to specific operational requirements.
Mounting and Installation
Mounting is done via integrated blind rivet nuts M6 on the profile, enabling protection-rated fastening of fittings. The mounting plate is depth-adjustable and features an integrated mounting grid for positioning components. For internal installation, the use of the internal hexagon sheet metal screw 2486.400 is recommended, as the stainless steel material has high hardness. Floor mounting is done via the welded base frame with integrated base reinforcement.
Operational Advantages
The enclosure system offers high mechanical stability, long-term corrosion resistance due to the use of stainless steel 1.4301, and a globally recognized protection rating. The modular design and baying capability allow flexible expansion and adaptation to changing requirements. The depth-adjustable mounting plate and 25 mm perforation simplify installation and maintenance. The use of reusable mounting rails and plastic glides reduces installation effort and increases efficiency during commissioning.
| General | |
| Material | Cabinet frame: Stainless steel 1.4301 (AISI 304), 1.5 mm, roof: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed, door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed, rear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed, base plate: Stainless steel 1.4301 (AISI 304), 1.5 mm, mounting plate: Steel sheet, 3.0 mm |
| Surface protection | Cabinet frame and base plates: plain, door, roof and rear panel: exterior brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet frame, door, door hinge right, reversible to left, roof, base plate, rear panel, mounting plate, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Note | Due to material hardness, we recommend using the internal hex socket sheet metal screw 2486.400 for internal installation. For rack-mounted combinations, standard rack connectors VX can be used while maintaining IP 66/NEMA 4X protection rating. |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 397,75 |
