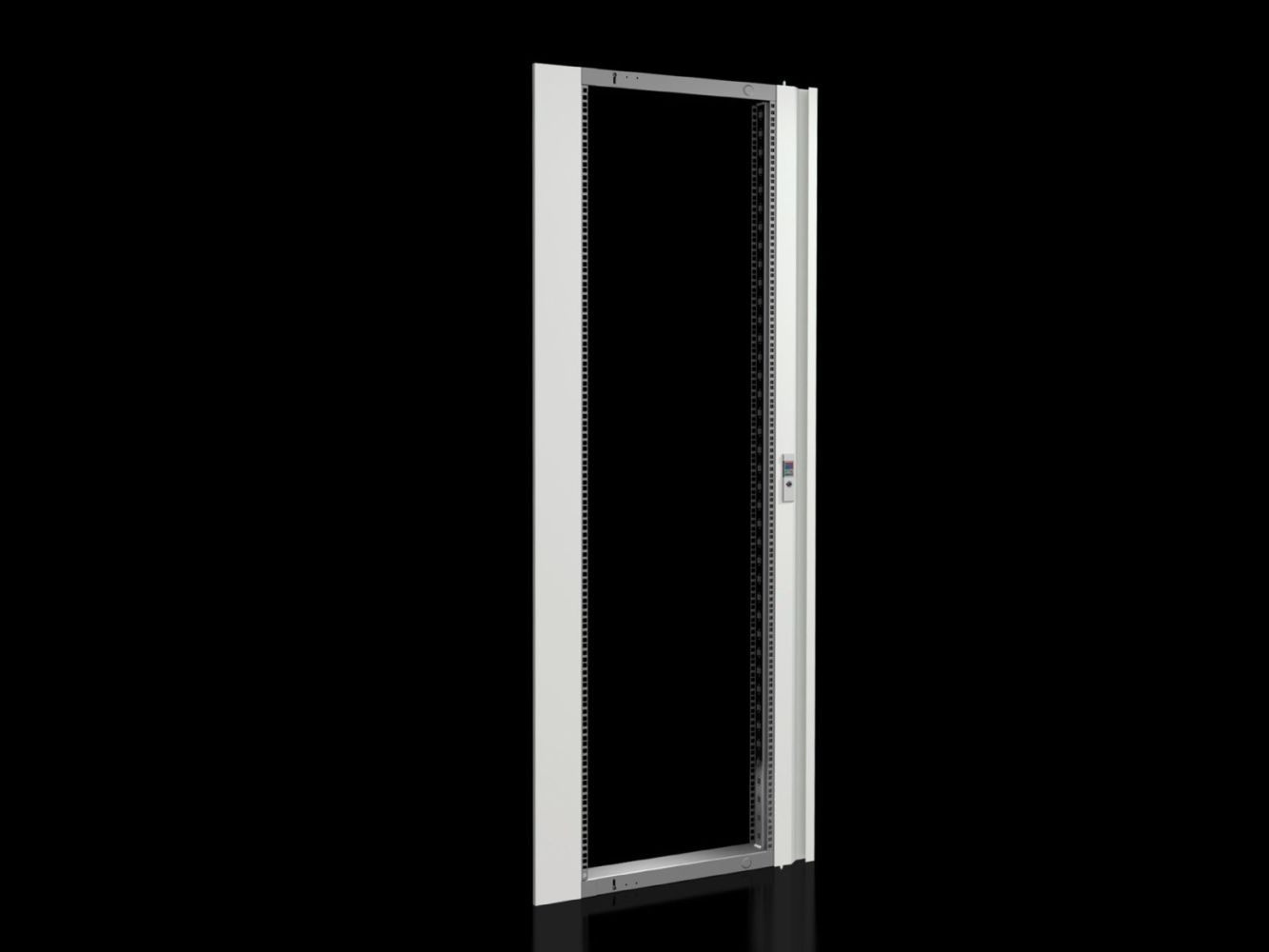

Rittal 8619033 VX swing frame large, trim panel on both sides, W: 800 mm
|
364,09 EUR |
|
|
( 433,27 EUR incl. VAT ) ≈ £304.74 | ≈ $400.13 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441934 |
| Mfg Part No: | 8619033 |
| UPC/EAN: | 4028177920347 |
| Weight: | 20.05 kg |
| Type: | VX 8619.033 |
Product information for Rittal 8619033:
Applications
The swing frame is intended for use in industrial enclosures, particularly in systems of the VX series. It serves for the secure and accessible mounting of standard 48,3 cm ( 19 inch ) devices, such as network or server components, in enclosures with a width of 800 mm. The minimum height of 2000 mm and the height of 40 HE make it suitable for larger installations where high device density is required. The trim panel on both sides ensures proper shielding and a professional appearance, especially in environments where the front of the enclosure is visible.
Functions and Equipment in Detail
The swing frame allows the mounted devices to be swiveled by 130°, enabling easy maintenance and inspection of the front panels of the devices. The integrated locking system ensures secure fixation in the closed position. The trim panel is mounted on both sides, enabling a uniform visual design of the enclosure front. The use of galvanized sheet steel for the frame ensures high corrosion resistance, while the painted trim panel in RAL 7035 provides a uniform, robust surface protection.
Technology Explained Simply
Installation is carried out using the supplied fastening material on the mounting kit. Depending on the expansion situation, system chassis with a cross-section of 23 x 64 mm are required to securely fix the swing frame in the enclosure. The 130° hinges allow sufficient opening to make the devices easily accessible. The trim panel on both sides ensures that both the front and rear sides of the frame are covered, which is particularly advantageous in open enclosure configurations or when mounting in rows of enclosures.
Compatibility and Accessories
The swing frame is specifically designed for enclosures with a width of 800 mm. It is part of the VX system and can be combined with other components such as VX system chassis in various widths (e.g. 400 mm, 500 mm, 600 mm, 800 mm) as well as mounting kits for swing frames (e.g. for 800 mm and 1200 mm). Locking inserts made of zinc die-cast with a length of 27 mm are available as additional accessories to support the locking system.
Installation and Mounting
Mounting is carried out on a suitable mounting kit in the enclosure. The supplied fastening material is used to securely fix the swing frame. Depending on the existing enclosure configuration, system chassis with dimensions 23 x 64 mm are required to enable installation. The installation requires no additional tools other than standard tools for screws and fastenings.
Operational Advantages
The swing frame provides secure and accessible mounting of 48,3 cm ( 19 inch ) devices, simplifying maintenance work. The trim panel on both sides ensures a professional appearance and protects the devices from dust and mechanical influences. The use of galvanized sheet steel increases the frame's service life in industrial environments. The integrated 130° hinges allow sufficient opening without requiring additional mounting aids. Compatibility with the VX system and associated mounting kits ensures modular and flexible installation in existing enclosure configurations.
| General | |
| Model | Blind plate on both sides |
| Material | steel sheet |
| Surface protection | Frame: galvanised, faceplate: painted |
| Colour | Shutter: RAL 7035 |
| Scope of delivery | Including closure system, 130° hinge, material for mounting on installation kit |
| Mounting note | Depending on the expansion situation, system chassis 23 x 64 mm are required |
| Note | To lock the open swivel frame, the swivel frame locking mechanism is required. For further expansion options, see "Technology in detail" |
| Suitable for | Width: = 800 mm, height: ≥ 2.000 mm |
| Height units | 40 HE |
Questions & answers
What is the delivery time of Rittal 8619033 VX swing frame large, trim panel on both sides, W: 800 mm?
The article Rittal 8619033 VX swing frame large, trim panel on both sides, W: 800 mm is currently in stock
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619033 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8619033 VX swing frame large, trim panel on both sides, W: 800 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619033 VX swing frame large, trim panel on both sides, W: 800 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
