Rittal 8619041 VX mounting kit for swing frame, large, W: 800 mm

Your rating:
Average rating
product review for Rittal 8619041 VX mounting kit for swing frame, large, W: 800 mm
( 4.5 / 5 ) 17 ratings

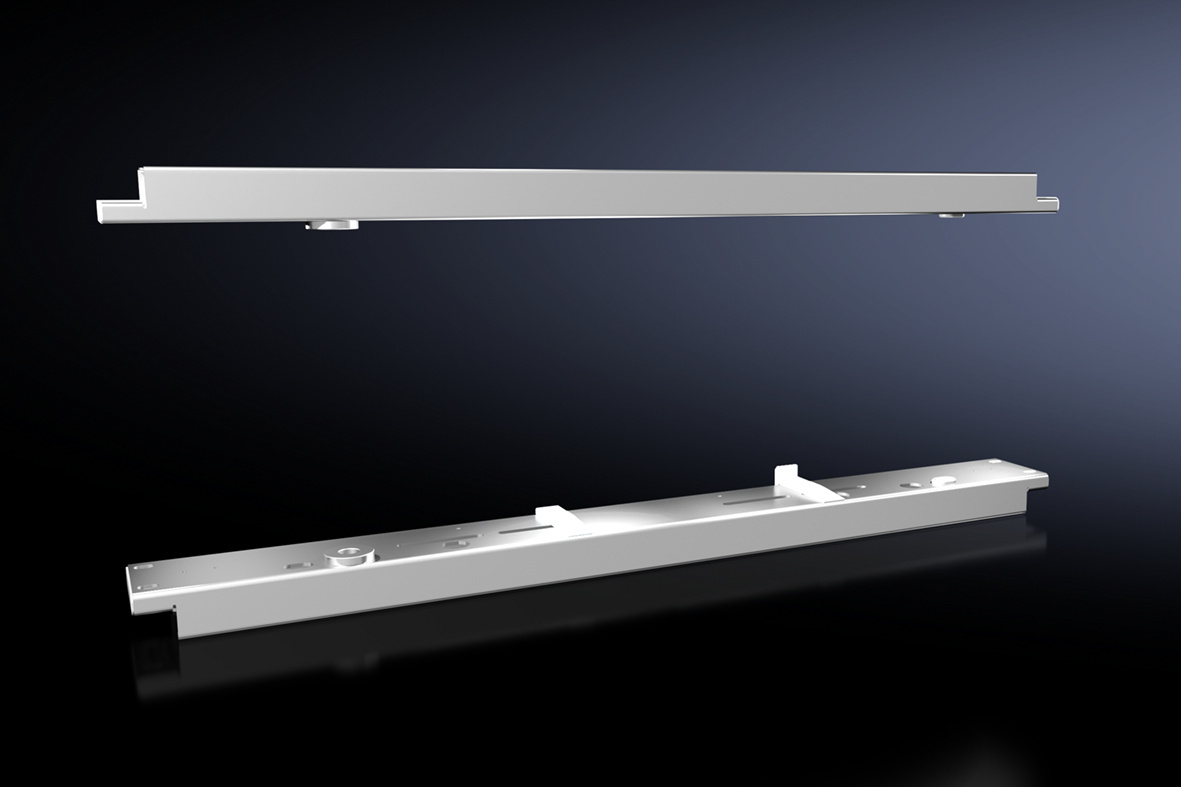

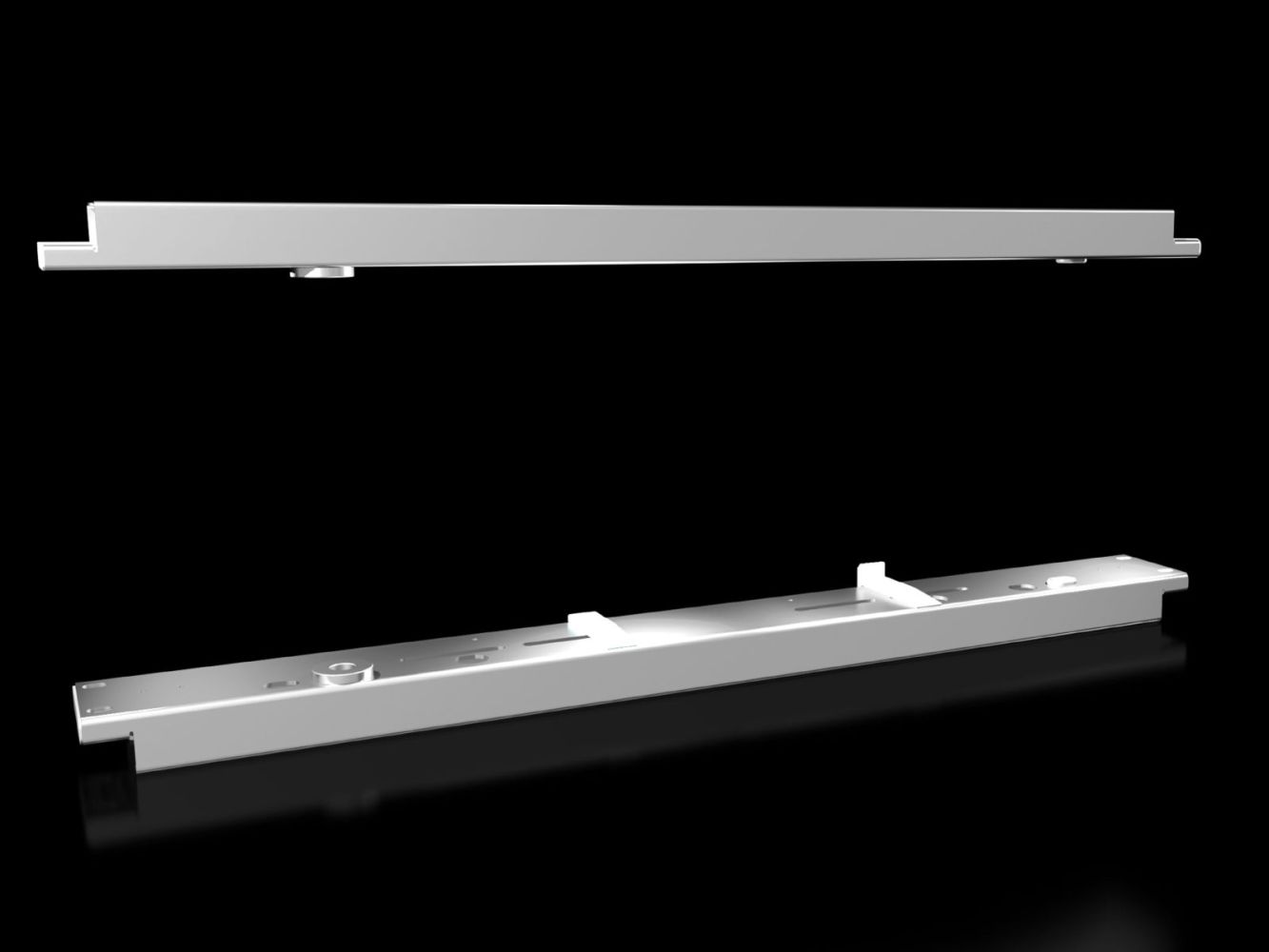

Rittal 8619041
This image may differ from the desired article.
Rittal 8619041Rittal 8619041Rittal 8619041
60,95 EUR 61,14 EUR
( 72,53 EUR incl. VAT )
≈ £51.02  |  ≈ $66.98
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8619041 VX mounting kit for swing frame, large, W: 800 mm
Datasheet:file_download Download
Lieske Part No.:1441931
Mfg Part No: 8619041
UPC/EAN: 4028177920316
Weight:4.58 kg
Type:VX 8619.041

Product information for Rittal 8619041:

The Rittal VX 8619.041 is a mounting kit for the large swing frame, specifically designed for enclosures with a width of 800 mm. It serves as a mounting component for secure fixation of the swing frame within the enclosure and enables the integration of control or display units operated via a swivelling frame. The mounting kit is made of sheet steel with a thickness of 3.0 mm, providing high mechanical stability. The surface is painted and finished in RAL 7035, ensuring visual harmony with standardised enclosure components.

Applications
The mounting kit is used in industrial plants where control panels or display units need to be positioned flexibly. It is particularly suitable for enclosures with a width of 800 mm and allows mounting of the swing frame either over the full enclosure height directly onto the enclosure profile or in partial installation form in combination with a system chassis with dimensions 23 x 64 mm. This flexibility enables adaptable integration into existing enclosure configurations.

Functions and Equipment in Detail
The mounting kit is designed for a static load capacity of 3,500 N, ensuring secure mounting even under high mechanical loads. Mounting is carried out using the included mounting hardware, intended for attachment to the enclosure profile or to the system chassis. The use of the mounting kit enables precise and stable positioning of the swing frame, ensuring safe and reliable operation of the integrated devices.

Technology Explained Simply
The sheet steel material with a thickness of 3.0 mm provides sufficient strength to support the static load of 3,500 N without deformation. The painted surface in RAL 7035 ensures uniform colouring and corrosion protection, extending the service life of the mounting kit. Mounting can be done directly onto the enclosure profile, enabling full utilisation of the enclosure height, or in combination with a system chassis, allowing flexible positioning within the enclosure height.

Compatibility and Accessories
The mounting kit is specifically designed for enclosures with a width of 800 mm. It is compatible with the large swing frame and can be used in combination with a system chassis 23 x 64 mm. As suitable accessories, a door position switch is offered, which can be used to monitor the swing frame position.

Mounting and Installation
Installation is carried out using the included mounting hardware. For full-height installation, the mounting kit is mounted directly onto the enclosure profile. For partial installation, it is used in combination with a system chassis 23 x 64 mm.

Operational Advantages
The mounting kit provides stable and secure mounting of the swing frame, ensuring reliable and comfortable operation of the integrated devices. The high static load capacity of 3,500 N guarantees long service life and functionality even under demanding operating conditions. Compatibility with the system chassis enables flexible adaptation to different enclosure configurations.

General
MaterialSheet steel, 3.0 mm
Surface protectionPainted
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Mounting optionsDirectly on cabinet profile for full-height installation, in combination with system chassis 23 x 64 mm for partial-height installation in cabinet height
Load capacity (static)3.500 N
Suitable forWidth: = 800 mm


Product data sheet
Datasheet for Rittal 8619041, EAN: 4028177920316

Questions & answers

What is the delivery time of Rittal 8619041 VX mounting kit for swing frame, large, W: 800 mm?

The article Rittal 8619041 VX mounting kit for swing frame, large, W: 800 mm is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619041 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8619041 VX mounting kit for swing frame, large, W: 800 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619041 VX mounting kit for swing frame, large, W: 800 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
