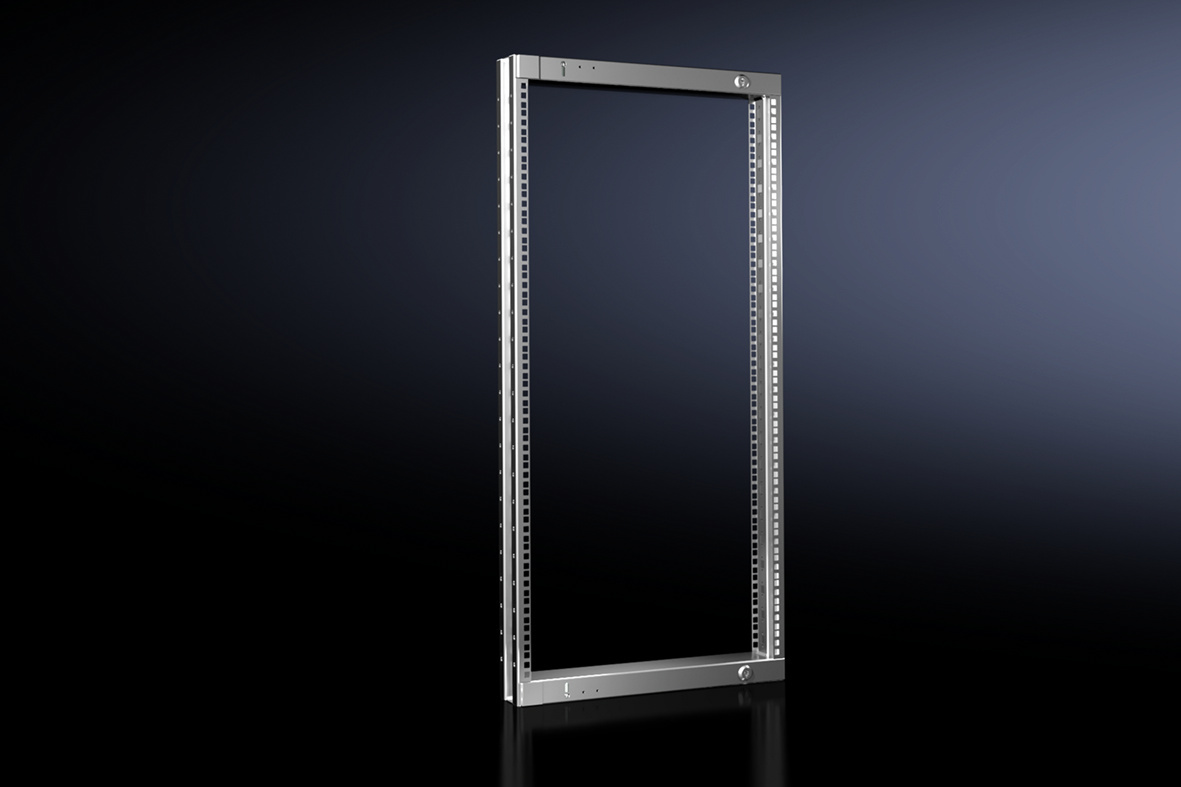

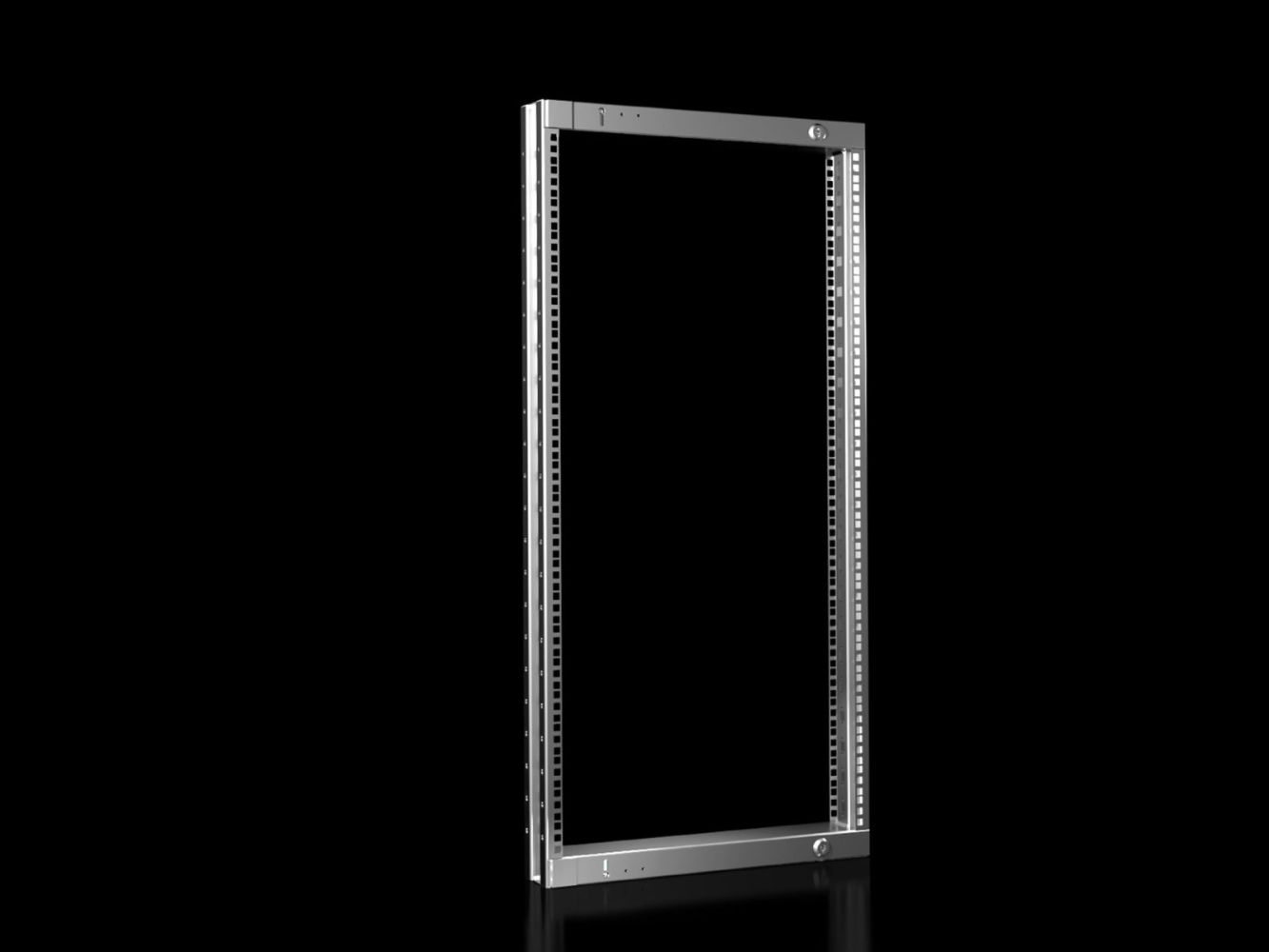

Rittal 8619010 VX swing frame, large, without trim panel, for W: 600 mm

Your rating:
Average rating
product review for Rittal 8619010 VX swing frame, large, without trim panel, for W: 600 mm
( 4.3 / 5 ) 15 ratings
Rittal 8619010
This image may differ from the desired article.
Rittal 8619010Rittal 8619010Rittal 8619010
237,59 EUR
( 282,73 EUR incl. VAT )
≈ £198.86  |  ≈ $261.11
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 8619010 VX swing frame, large, without trim panel, for W: 600 mm
Datasheet:file_download Download
Lieske Part No.:1441946
Mfg Part No: 8619010
UPC/EAN: 4028177920453
Weight:9.206 kg
Type:VX 8619.010

Product information for Rittal 8619010:

The Rittal VX 8619.010 is a swing frame, large, without trim panel, specifically designed for mounting 482.6 mm (48,3 cm ( 19 inch ))-installation components in VX enclosures. It is designed for enclosures with an exact width of 600 mm and a minimum enclosure height of 1200 mm, providing space for 22 height units (HE). The product is made of sheet steel, with the frame galvanized and the trim panel painted in RAL 7035. The version without a trim panel allows for flexible integration into existing systems, with mounting to the mounting kit.

Applications

The swing frame is used for secure and accessible mounting of network or control components in industrial environments. It is particularly suitable for installations where frequent maintenance or configuration of installed devices is required. The swivelling motion enables convenient operation and inspection of installed modules without having to open the entire enclosure. The minimum enclosure height of 1200 mm ensures sufficient space for mounting and operation of the components.

Functions and Equipment in Detail

The swing frame is supplied with a locking system and a 130° hinge, enabling secure and stable swivelling motion. Mounting to the mounting kit is done using the included material, with system chassis of dimensions 23 x 64 mm required depending on the installation situation. These chassis serve as mounting base and ensure secure anchoring in the enclosure. The RAL 7035 paint finish of the trim panel ensures visual harmony with other VX system components.

Technology Explained Simply

The use of galvanized sheet steel for the frame provides high corrosion resistance and mechanical stability. The RAL 7035 paint finish of the trim panel is a standardized color commonly used in industrial installations. The 130° swivelling motion allows for a sufficiently large opening angle to make the devices easily accessible. The locking system ensures that the frame remains fixed in the closed position and does not open unintentionally.

Compatibility and Accessories

The swing frame is specifically designed for VX enclosures with a width of 600 mm. For mounting, system chassis 23 x 64 mm are required, available in various widths (400 mm, 500 mm, 600 mm, 800 mm). Additionally, mounting kits for swing frames in widths 600 mm, 800 mm, and 1200 mm can be used to facilitate installation.

Mounting and Installation

Mounting is done to an already installed mounting kit in the enclosure. Fixing is done using the included material, with the system chassis 23 x 64 mm serving as the mounting base. The exact arrangement and fixation depend on the specific installation situation.

Advantages in Operation

The swing frame enables efficient maintenance and inspection of installed devices, as these are accessible without fully opening the enclosure. The stable construction from galvanized sheet steel ensures a long service life even in demanding industrial environments. Integration into the VX system ensures high compatibility with other system components.

General
ModelWithout bezel
Materialsteel sheet
Surface protectionFrame: galvanised, faceplate: painted
ColourShutter: RAL 7035
Scope of deliveryIncluding closure system, 130° hinge, material for mounting on installation kit
Mounting noteDepending on the expansion situation, system chassis 23 x 64 mm are required
NoteTo lock the open swivel frame, the swivel frame locking mechanism is required. For further expansion options, see "Technology in detail"
Suitable forWidth: = 600 mm, height: ≥ 1.200 mm
Height units22 HE


Product data sheet
Datasheet for Rittal 8619010, EAN: 4028177920453
