Rittal 8619040 VX mounting kit for swing frame, large, W: 600 mm

Your rating:
Average rating
product review for Rittal 8619040 VX mounting kit for swing frame, large, W: 600 mm
( 4.6 / 5 ) 11 ratings

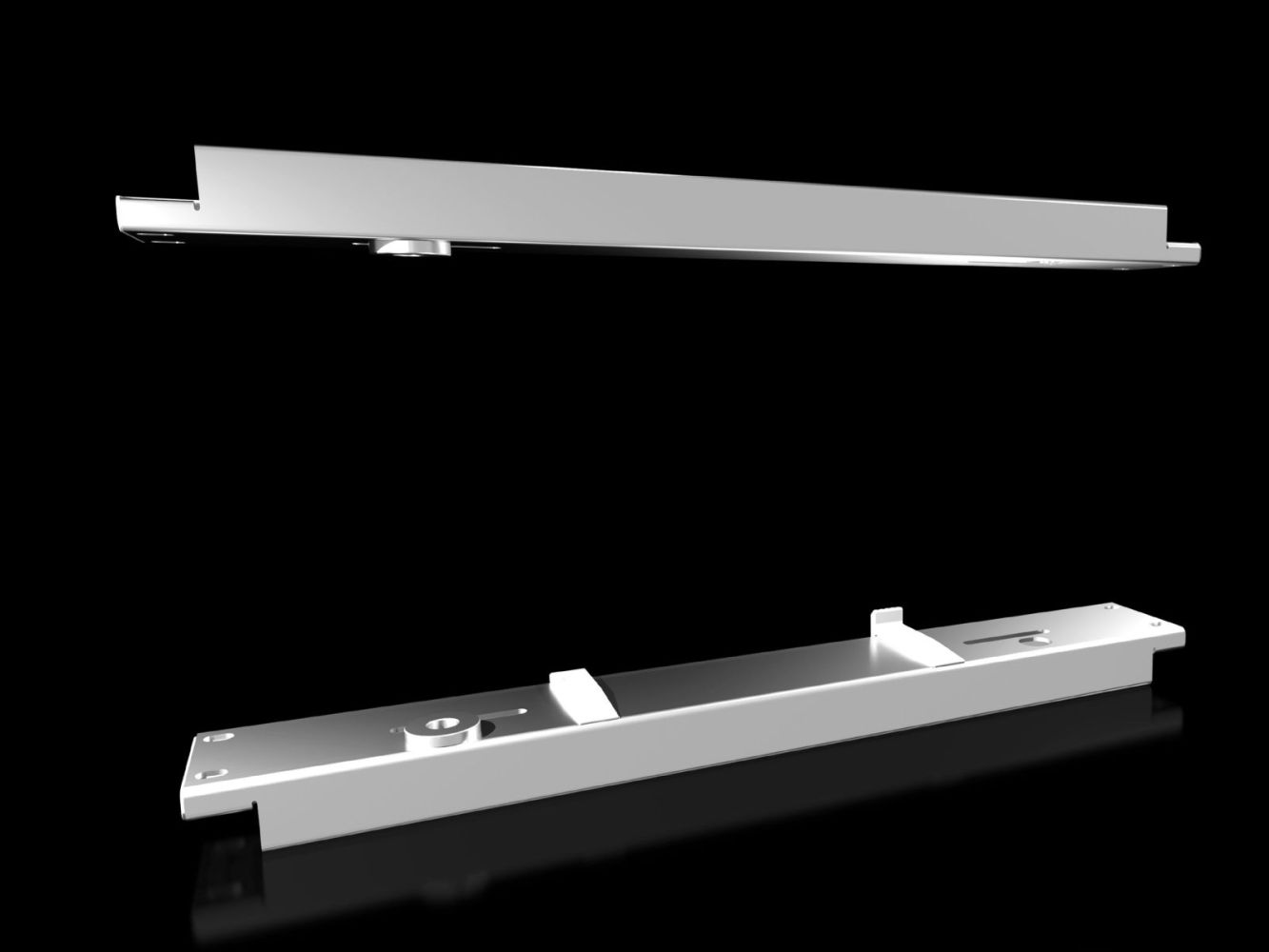

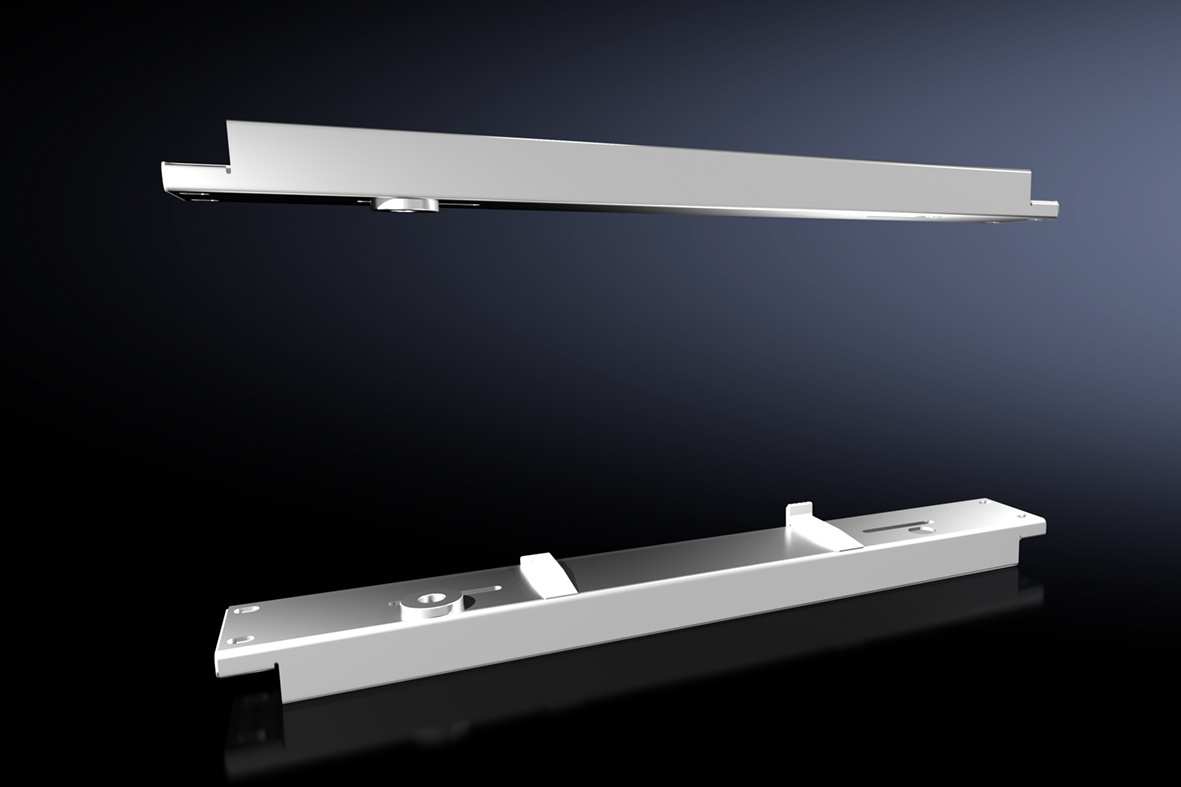

Rittal 8619040
This image may differ from the desired article.
Rittal 8619040Rittal 8619040Rittal 8619040
55,55 EUR
( 66,10 EUR incl. VAT )
≈ £46.50  |  ≈ $61.05
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8619040 VX mounting kit for swing frame, large, W: 600 mm
Datasheet:file_download Download
Lieske Part No.:1441932
Mfg Part No: 8619040
UPC/EAN: 4028177920323
Weight:3.62 kg
Type:VX 8619.040

Product information for Rittal 8619040:

The Rittal VX 8619.040 is a mounting kit for the large swing frame, specifically designed for enclosures with a width of 600 mm. It serves as a mounting element to securely and stably fix the swing frame within the enclosure. The mounting kit is made of steel sheet with a thickness of 3.0 mm and is painted in RAL 7035, providing a robust surface suitable for industrial environments. The construction is designed for a static load capacity of 3,500 N, enabling high load-bearing capability for mounting heavy or bulky components.

Applications

The mounting kit is intended for use in industrial enclosures, particularly in systems where a swing frame is required for mounting control or operating elements. It is suitable for enclosures with a width of 600 mm and enables the integration of operating panels that are to be mounted over the full enclosure height or in parts of the enclosure height. Typical applications include automation technology, machine building industry, and systems with high requirements for mechanical stability of mounting elements.

Functions and Equipment in Detail

The mounting kit offers two different mounting variants: it can be mounted directly onto the enclosure profile when the swing frame is installed over the full enclosure height. Alternatively, it can be used in combination with a system chassis with dimensions 23 x 64 mm when the swing frame is to be mounted only partially within the enclosure height. The steel sheet thickness of 3.0 mm ensures high mechanical strength and durability under industrial conditions.

Technology Explained Simply

The static load capacity of 3,500 N corresponds to a load-bearing capacity of approximately 357 kg, enabling the mounting of heavy equipment or complex operating panels. The use of steel sheet with a thickness of 3.0 mm ensures high stiffness and minimizes the risk of deformation under load. The painted surface in RAL 7035 provides uniform, abrasion-resistant protection against corrosion and mechanical stress. Mounting is done via the designated attachment points on the enclosure profile or on the system chassis, ensuring secure and precise positioning of the swing frame.

Compatibility and Accessories

The mounting kit is specifically designed for enclosures with a width of 600 mm and fits exactly with Rittal swing frames of the large size. It is compatible with the system chassis 23 x 64 mm, which is used for partial installations. Mounting is done directly onto the enclosure profile or in combination with the system chassis, depending on the required installation height.

Mounting and Installation

Installation is performed by securing the mounting kit to the enclosure profile or to the system chassis, using the included mounting hardware. The installation is tool-assisted and does not require additional components. Positioning is either over the full enclosure height or in parts of the enclosure height, depending on the desired installation height of the swing frame. Mechanical stability is ensured by the high load capacity and material thickness.

Advantages in Operation

The mounting kit provides a reliable and stable mounting base for swing frames exposed to high mechanical loads in industrial applications. The integrated fastening allows for quick and easy installation without additional materials. The high load capacity and robust construction ensure a long service life and minimize maintenance requirements. The use of steel sheet and painted surface guarantees high corrosion resistance and mechanical strength in demanding environments.

General
MaterialSheet steel, 3.0 mm
Surface protectionPainted
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Mounting optionsDirectly on cabinet profile for full-height installation, in combination with system chassis 23 x 64 mm for partial-height installation in cabinet height
Load capacity (static)3.500 N
Suitable forWidth: = 600 mm


Product data sheet
Datasheet for Rittal 8619040, EAN: 4028177920323

Questions & answers

What is the delivery time of Rittal 8619040 VX mounting kit for swing frame, large, W: 600 mm?

The article Rittal 8619040 VX mounting kit for swing frame, large, W: 600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619040 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8619040 VX mounting kit for swing frame, large, W: 600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619040 VX mounting kit for swing frame, large, W: 600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
