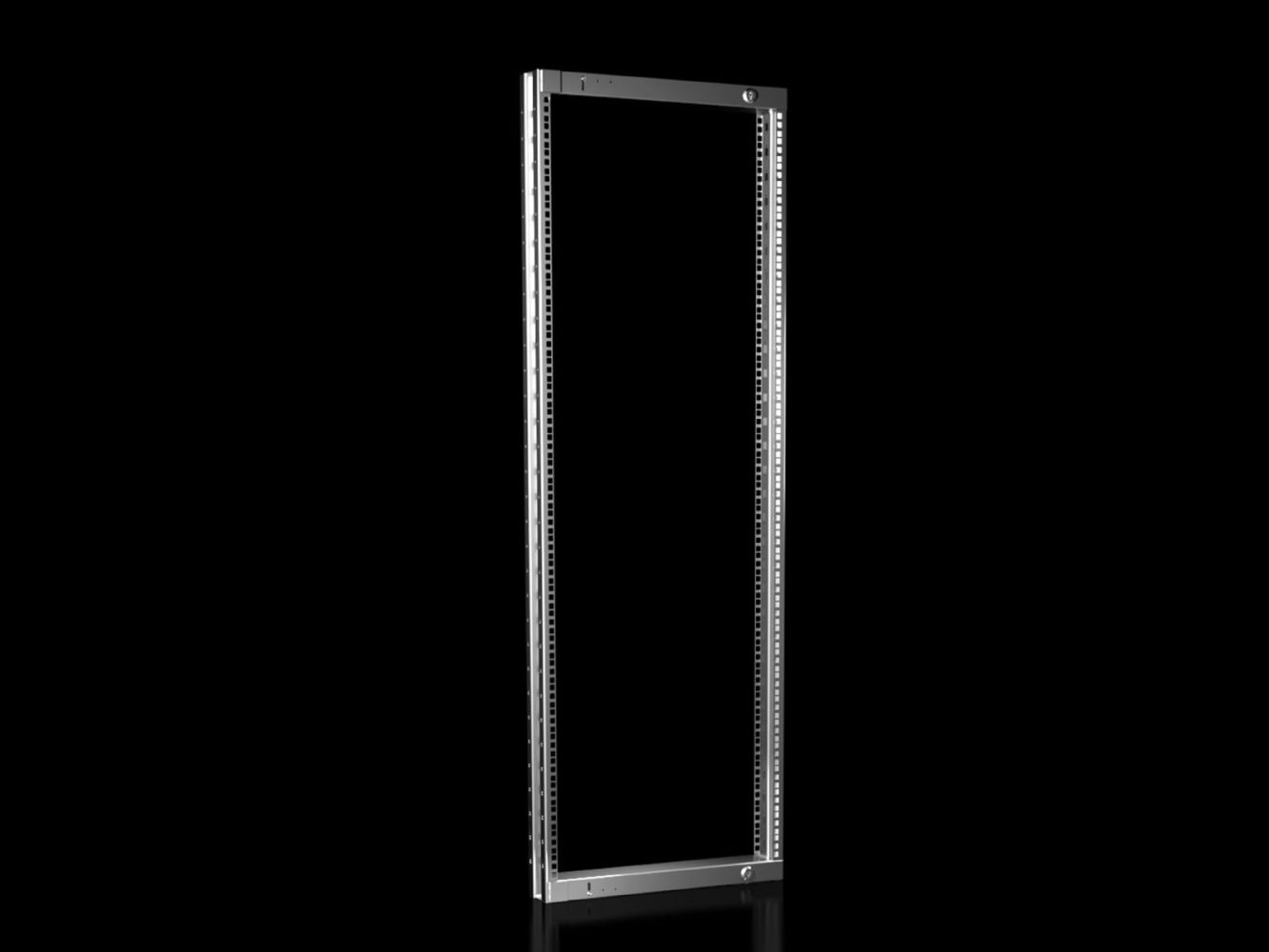

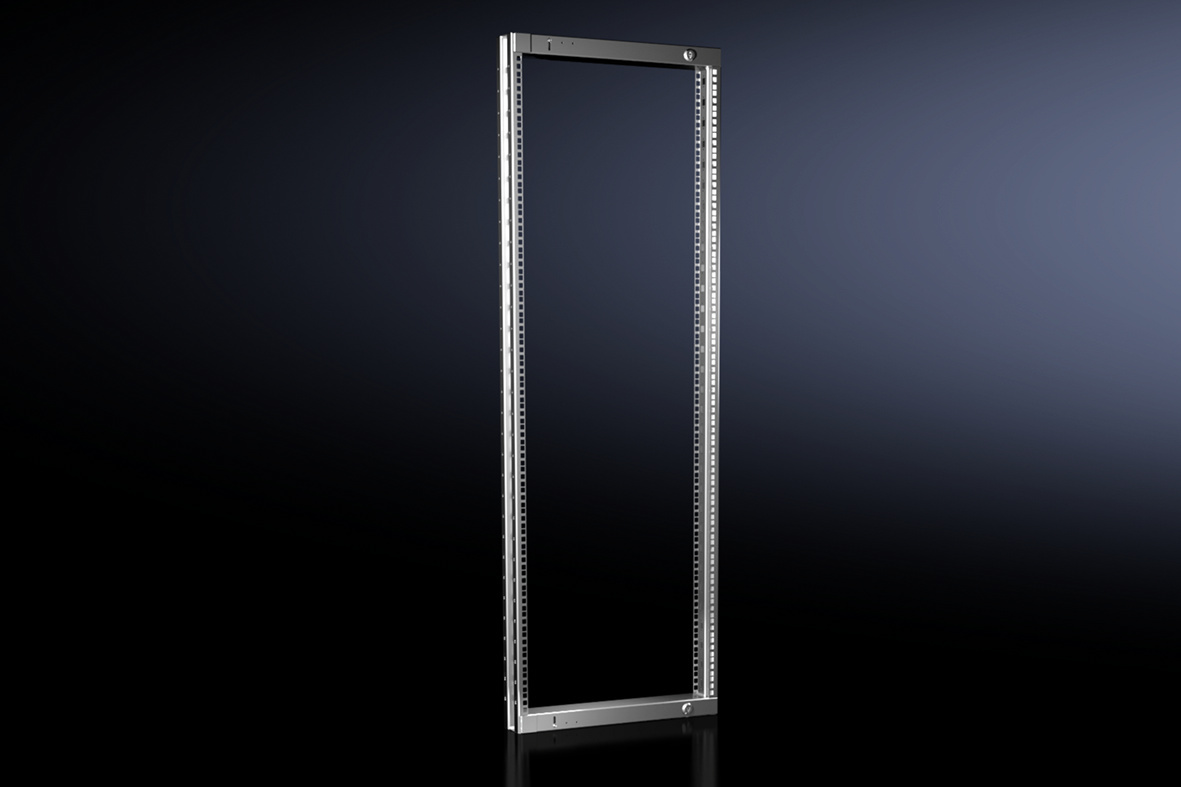

Rittal 8619011 VX swing frame, large, without trim panel, for W: 600 mm
|
272,21 EUR |
|
|
( 323,93 EUR incl. VAT ) ≈ £227.84 | ≈ $299.16 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441945 |
| Mfg Part No: | 8619011 |
| UPC/EAN: | 4028177920620 |
| Weight: | 10.974 kg |
| Type: | VX 8619.011 |
Product information for Rittal 8619011:
Applications
The swing frame is used in industrial and technical installations where secure and accessible mounting of network or control components in the enclosure is required. It is particularly suitable for applications requiring regular maintenance or configuration of installed devices, as it allows rotation of the entire module. The version without a trim panel offers an open front, which is advantageous during installation and maintenance.
Features and Equipment in Detail
The frame is made of sheet steel and is galvanised in the frame area to prevent corrosion. The trim panel, which is not part of this model, is painted in the colour RAL 7035 in other versions. The delivery includes a lock system, a 130° hinge, and the material for mounting to the mounting kit. Installation is carried out via the mounting kit, and depending on the installation configuration, system chassis 23 x 64 mm are required to securely fix the frame in the enclosure.
Technology Explained Simply
The swing frame allows rotation of up to 130°, making front devices easily accessible without having to open the entire enclosure. The integrated lock system ensures the frame is secured in the closed position. The construction is designed for mounting standard 48,3 cm ( 19 inch ) devices with a depth of up to 482.6 mm.
Compatibility and Accessories
The swing frame is specifically designed for enclosures with a width of 600 mm. Alternative models are available for other widths such as 800 mm or 1200 mm. Compatible mounting kits for swing frame, large, in widths of 600 mm, 800 mm, and 1200 mm, are available as accessories. Additionally, system chassis 23 x 64 mm are available in various widths (400 mm, 500 mm, 600 mm, 800 mm) to enable installation in the enclosure. The combination with these chassis is necessary to securely fasten the frame.
Installation and Mounting
Installation is carried out via the mounting kit, which is installed in the enclosure. The swing frame is fastened to this mounting kit using the included material. Depending on the installation configuration, system chassis 23 x 64 mm are required to enable installation. The installation requires no additional tools beyond standard mounting aids such as screwdrivers.
Operational Advantages
The swing frame provides efficient access to mounted devices, accelerating maintenance and configuration. The use of sheet steel with a galvanised surface ensures high mechanical stability and corrosion resistance. Integration into the VX system guarantees standardised mounting and compatibility with other VX accessories. The 31 HE provide sufficient space for multiple 48,3 cm ( 19 inch ) devices, enabling a compact and structured installation.
| General | |
| Model | Without bezel |
| Material | steel sheet |
| Surface protection | Frame: galvanised, faceplate: painted |
| Colour | Shutter: RAL 7035 |
| Scope of delivery | Including closure system, 130° hinge, material for mounting on installation kit |
| Mounting note | Depending on the expansion situation, system chassis 23 x 64 mm are required |
| Note | To lock the open swivel frame, the swivel frame locking mechanism is required. For further expansion options, see "Technology in detail" |
| Suitable for | Width: = 600 mm, Height: ≥ 1.600 mm |
| Height units | 31 HE |
