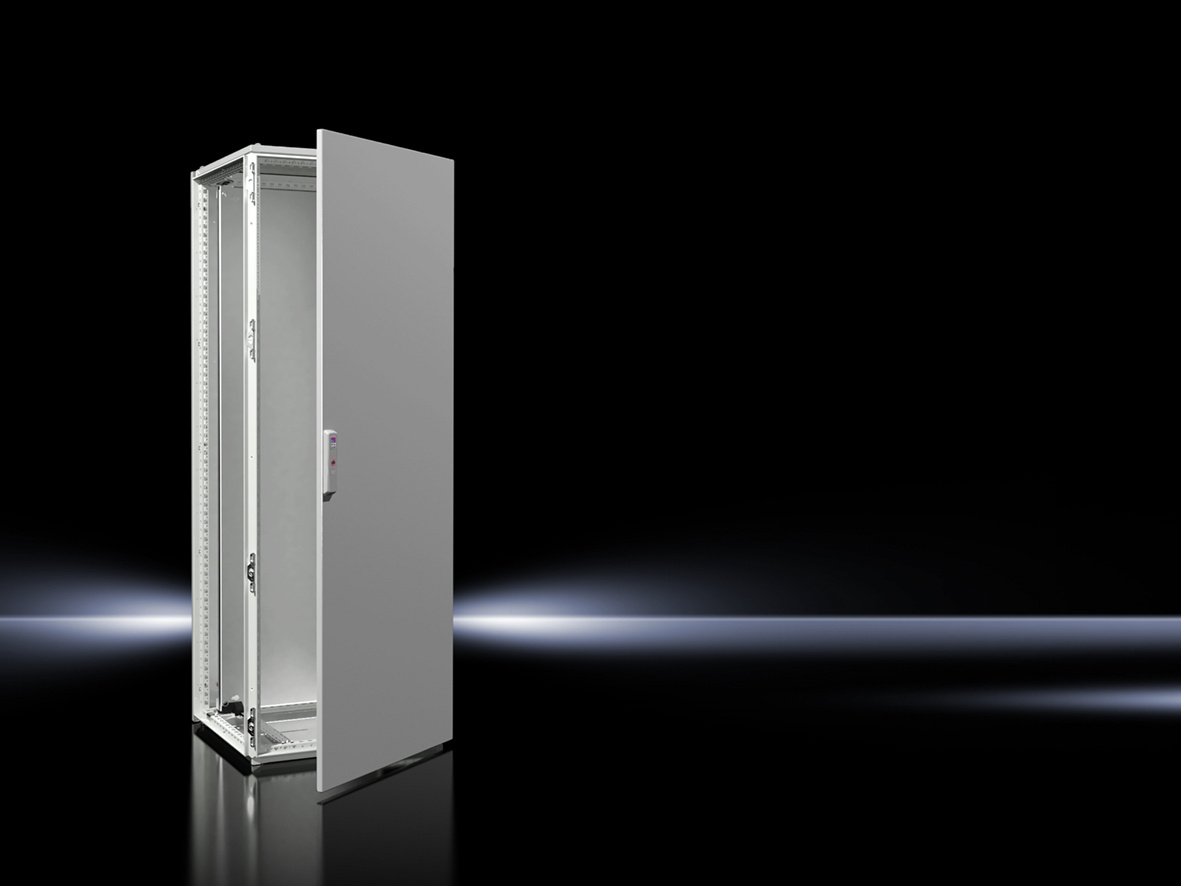

Rittal 8665000 VX bayed enclosure system, 1-door, W x H x D: 600x1600x500 mm
|
540,50 EUR |
|
|
( 643,19 EUR incl. VAT ) ≈ £452.40 | ≈ $594.01 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1442128 |
| Mfg Part No: | 8665000 |
| UPC/EAN: | 4028177813786 |
| Weight: | 81.9 kg |
| Type: | VX 8665.000 |
Product information for Rittal 8665000:
Applications
This enclosure system is designed for use in industrial environments requiring high mechanical stability and protection against dust and splashing water. It is suitable for housing control and switching devices in production halls, machine building installations, or in process industries. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for outdoor use as well. The NEMA classification NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for indoor and lightly contaminated environments. The IK code IK10 indicates high mechanical strength against mechanical impacts such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure features a single-door front side with a door made of 2.0 mm thick sheet steel, equipped with a foamed PU foam seal to ensure a tight seal. The door is standard right-hinged but can be toollessly reconfigured to the left side. The door opening angle is 130° and can be toollessly extended to 180°. The door is secured by a 3 mm double-bar lock, fourfold latched, ensuring secure and stable locking. The hinges are fitted with non-removable hinge pins to prevent accidental dislodgement. The clearance from the floor is 17 mm, ensuring sufficient ventilation and accessibility.
Technology Explained Simply
The enclosure system consists of a frame made of 1.5 mm thick sheet steel, dip-primed. The door, roof, and rear panel are also made of 1.5 mm sheet steel, but externally powder-coated with textured paint in RAL 7035. The mounting plate is made of 3.0 mm thick sheet steel and galvanized, providing high corrosion resistance. The floor plates are divided into three parts, removable and replaceable, enabling easy maintenance and cleaning. The mounting plate is C-bent on the sides and depth-adjustable in 25 mm increments via integrated plastic glides and reusable mounting rails. This allows flexible positioning of components. The rear panel, roof, and floor plates are electrically connected to the frame, ensuring automatic equipotential bonding according to DIN 62 208 and facilitating grounding of components.
Compatibility and Accessories
The enclosure system is designed for mounting additional modules or enclosures and can be mounted in baying configuration on all sides. Compatible accessories include, among others, levelling feet M12 with an adjustment height of 18–43 mm, TS mounting brackets for the external mounting level, VX partial mounting plates in various sizes, transport eyes for freight shipping, dust protection strips, TFT/monitor holders with VESA connection, comfort handles for various locking systems, C-profile rails, cable entry ferrules in various diameters, multi-locking systems, circuit diagram pockets, and an AS Multitool. These accessories allow individual adaptation of the enclosure to specific requirements.
Mounting and Installation
Installation is carried out via the integrated mounting levels and the 25 mm grid perforation. The mounting plate is depth-adjustable, enabling flexible positioning of components. The floor plates are removable, simplifying installation and maintenance. The door is toollessly reconfigurable, and the mounting rails are reusable. The enclosure construction is load-bearing up to 15,000 N, ensuring high mechanical stability. The integrated blind rivet nuts M6 allow protection-rated fastening of fittings to the profile.
Advantages in Operation
The enclosure system offers high mechanical strength, reliable protection rating IP 55, and flexible mounting via integrated mounting levels and the 25 mm perforation grid. The conductive connection of rear panel, roof, and floor plates to the frame ensures automatic equipotential bonding, increasing safety. The toolless door reconfiguration and depth-adjustable mounting plate simplify installation and maintenance. The use of galvanized sheet steel for the mounting plate and floor plates ensures high corrosion resistance. Integrated QR codes on the roof, door, mounting plate, rear panel, and nameplate enable unique identification and labeling of the enclosure.
The Rittal VX 8665.000 is thus a robust, flexible, and safety-oriented enclosure system suitable for a wide range of industrial applications, and its modular construction and high protection rating ensure reliable covering of electrical components.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 600 mm |
| Height | 1.600 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 499 mm x 1.496 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 237.95 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
