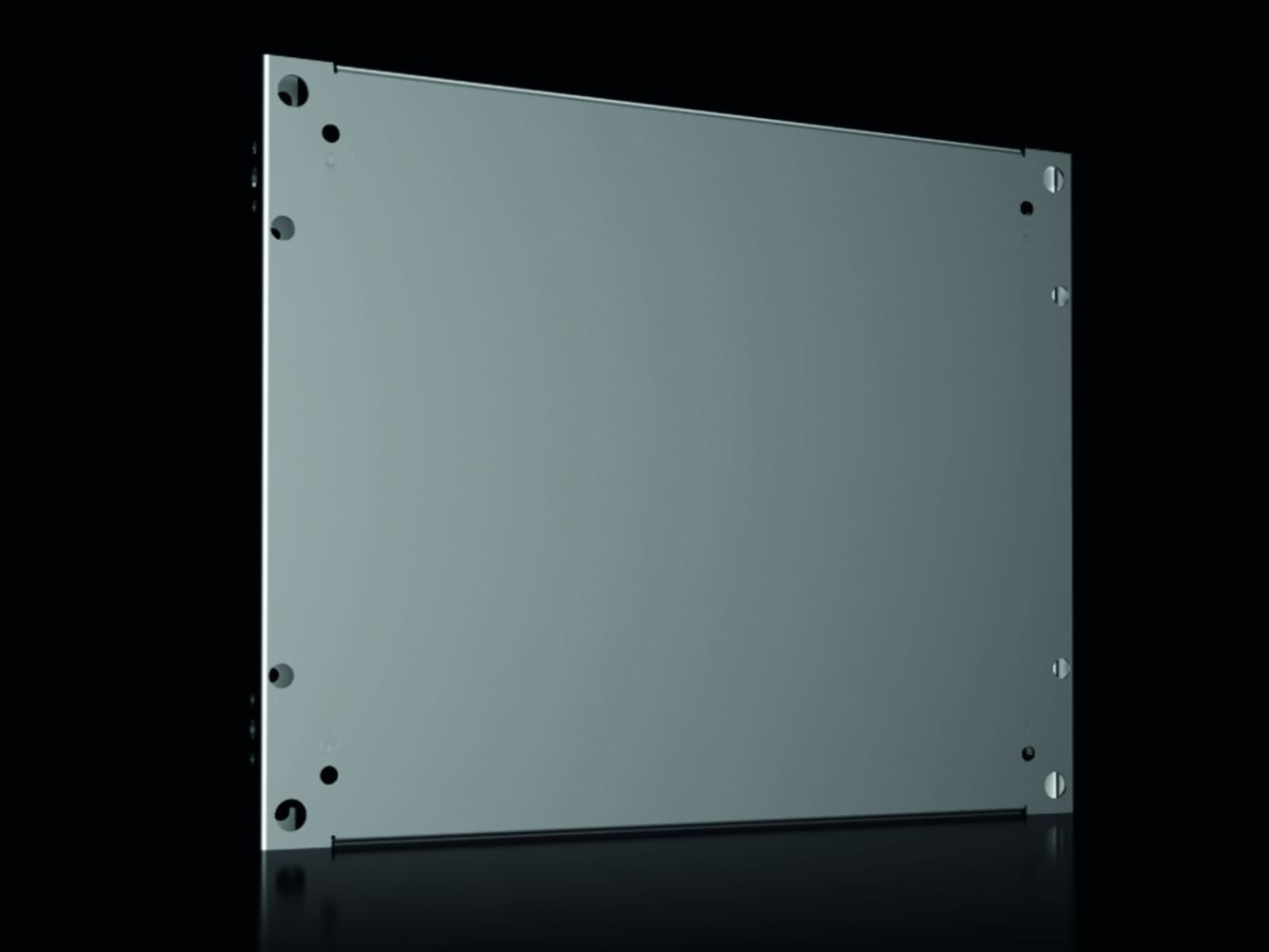

Rittal 8617520 VX partial mounting plate, W x H: 500x400 mm
|
42,32 EUR |
|
|
( 50,36 EUR incl. VAT ) ≈ £35.42 | ≈ $46.51 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440881 |
| Mfg Part No: | 8617520 |
| UPC/EAN: | 4028177919372 |
| Weight: | 5.66 kg |
| Type: | VX 8617.520 |
Product information for Rittal 8617520:
Applications
The partial mounting plate is suitable for use in industrial enclosures where additional mounting surfaces are required for assemblies, controls, network components or other electronic modules. It can be installed either as a vertical mounting surface or as a horizontal base within the enclosure, enabling high flexibility in internal structuring. Use in extended assemblies is also possible, with mounting via system chassis at any mounting level.
Functions and Equipment in Detail
The plate is supplied with mounting hardware, enabling direct mounting to the enclosure profile. In multi-level installations, where multiple partial mounting plates are arranged in sequence, a swivelling version with hinge mounting can be selected. This allows quick access to the rear mounting levels without having to remove the entire enclosure structure. The zinc-coated surface provides good corrosion protection and is suitable for use in industrial environments.
Technology Explained Simply
The sheet steel construction with 2.5 mm thickness offers sufficient stability to safely support even heavier components. The zinc-coated surface protects the material from moisture and oxidation, which is particularly advantageous in damp or aggressive environments. The dimensions of 500 mm width and 400 mm depth are matched to enclosures with a door width of 600 mm, ensuring optimal fit and secure mounting. Mounting is done directly to the enclosure profile, achieving a stable anchoring.
Compatibility and Accessories
The partial mounting plate is intended for enclosure types VX, VX SE and PC. For installation in VX SE, PC and IW, the use of the VX adapter rail is required. The plate is suitable for enclosures with a width of 600 mm and a depth of 500 mm or 600 mm. The flexible mounting allows adaptation to various enclosure configurations, with mounting options directly on the enclosure profile or via system chassis.
Mounting and Installation
Mounting of the partial mounting plate can be done either vertically as a standing surface or horizontally as a flat base. Direct mounting to the enclosure profile is possible, achieving a stable anchoring. In extended assemblies, the plate can be mounted at any mounting level within the enclosure via system chassis. For multi-level arrangements, the swivelling version with hinge mounting provides quick access to the rear levels.
Advantages in Operation
The flexible mounting enables optimal use of the enclosure interior space and individual adaptation to the specific application. The zinc-coated surface ensures long service life and low maintenance. The included mounting hardware simplifies installation, and the swivelling version in multi-level installations improves accessibility and maintainability of the installed components. The partial mounting plate is therefore a reliable solution for expanding and structuring enclosures in industrial applications.
| General | |
| Material | Sheet steel, 2.5 mm |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Suitable for door width | 600 mm |
| Mounting options | Installation can be either vertical as upright mounting surface or horizontal as flat floor; mounting is directly to cabinet profile; with pre-assembled construction, mounting is via system chassis at any mounting level within the cabinet; with multi-level installation of partial mounting plates in sequence, these can be hinged for quick access to rear levels |
| Note | For installation in VX SE, PC, IW, the VX adapter rail is required |
| Width | 500 mm |
| Depth | 400 mm |
| Suitable for housing type | VX, VX SE, PC |
| Suitable for | Housing type: VX, VX SE, PC, width: = 600 mm, depth: = 500 mm, = 600 mm |
| PCF/VE (Cradle-to-Gate) | 21.6 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8617520 VX partial mounting plate, W x H: 500x400 mm?
The article Rittal 8617520 VX partial mounting plate, W x H: 500x400 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617520 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8617520 VX partial mounting plate, W x H: 500x400 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617520 VX partial mounting plate, W x H: 500x400 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
