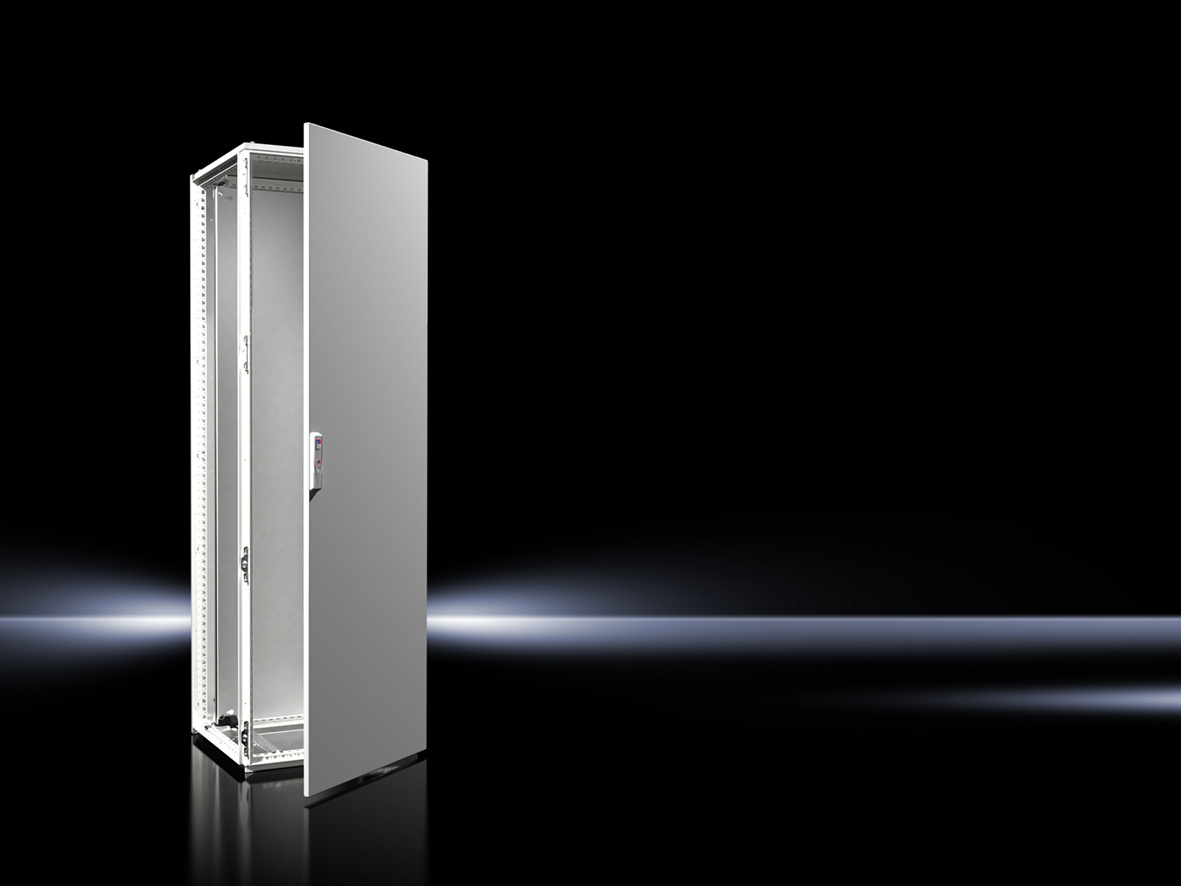

Rittal 8685000 VX bayed enclosure system, 1-door, W x H x D: 600x1800x500 mm
|
556,72 EUR 557,10 EUR |
|
|
( 662,50 EUR incl. VAT ) ≈ £465.97 | ≈ $611.84 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441678 |
| Mfg Part No: | 8685000 |
| UPC/EAN: | 4028177813809 |
| Weight: | 90 kg |
| Type: | VX 8685.000 |
Product information for Rittal 8685000:
Applications
This enclosure system is designed for use in industrial environments requiring high mechanical load capacity and protection against dust and splashing water. It is suitable for applications in the manufacturing industry, power supply, transportation technology, and automation technology. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from any direction, making it suitable for indoor use as well as in slightly damp outdoor areas. The protection ratings NEMA 1 and NEMA 12, along with the type rating according to UL 50E (Type 1, Type 12), confirm suitability for dry and slightly contaminated environments. The IK code IK10 indicates high mechanical strength against impact loads, making the system suitable for environments with mechanical stress.
Functions and Equipment in Detail
The enclosure system includes in the delivery scope the enclosure frame, a front door, a roof plate, a rear panel, divided base plates, a mounting plate, and two mounting rails with dimensions 18 x 39 mm. The door is equipped with a 3 mm double-bar lock, ensuring secure locking. The door hinges are standardly arranged on the right side but can be toollessly repositioned to the left side. The door opens up to 130° and can optionally be extended toollessly to 180°. The clearance height is 17 mm, enabling easy mounting on the floor. The door features a foamed PU foam seal, ensuring a tight closure. The mounting plate is equipped with integrated plastic gliding pieces and reusable mounting rails, allowing depth-adjustable mounting of components.
Technology Explained Simply
The construction of the enclosure system is based on a robust sheet steel frame with a wall thickness of 1.5 mm for the enclosure frame, roof, rear panel, and base plates. The door is made of sheet steel with a wall thickness of 2.0 mm, providing higher stability and mechanical strength. The mounting plate is made of 3.0 mm thick sheet steel to ensure high load capacity. The surface of the enclosure frame is dip-primed, while the door, roof, and rear panel are dip-primed and externally powder-coated with a textured lacquer. The mounting plate and base plates are galvanized to prevent corrosion. The color of the enclosure system is RAL 7035, a gray-beige standard color in industry. Electrical conductivity between frame, rear panel, roof, and base plates ensures automatic equipotential bonding according to DIN 62 208, which is important for safety in electrical installations.
Compatibility and Accessories
The enclosure system is modular and can be expanded with various accessories. Compatible accessories include levelling feet M12 with an adjustment height of 18–43 mm, TS mounting brackets for the external mounting plane, mounting plate spacers, VX partial mounting plates, transport eyes, dust protection strips, TFT/monitor mounts with VESA connection, comfort handles, C-profile rails, cable entry ferrules in various diameters, multi-locking systems, circuit diagram pockets in various depths, multitools, and system chassis in various dimensions. These accessories allow individual adaptation of the enclosure to specific requirements, such as mounting monitors, using cable entries, or expanding the mounting area.
Mounting and Installation
The mounting of the enclosure system is done via the integrated base frame, which allows fastening to the floor. The base plates are divided into three parts, removable and replaceable, allowing flexible adaptation to different floor conditions. The mounting plate is depth-adjustable and can be positioned using the integrated plastic gliding pieces and mounting rails. The entire construction is bayable, allowing multiple enclosures to be mounted side by side or stacked. The load capacity of the enclosure is up to 15,000 N, ensuring high mechanical stability. Mounting is done via the 25 mm hole pattern in the profile frame, allowing screws and cage nuts up to M8 to be used.
Operational Advantages
The enclosure system offers high mechanical strength, reliable protection against dust and splashing water, and flexible mounting options. The integrated mounting plate and depth-adjustable mounting rails enable quick and precise installation of components. The tool-free repositioning of door hinges and extension of door opening angles reduces installation time. Electrical conductivity between components ensures safe earthing and equipotential bonding. The use of sheet steel in various wall thicknesses ensures high stability and durability. The standard color RAL 7035 and powder-coated surface ensure good visual appearance and corrosion protection. The modular construction allows easy expansion and adaptation to future requirements.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 600 mm |
| Height | 1.800 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 499 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 259.69 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8685000 VX bayed enclosure system, 1-door, W x H x D: 600x1800x500 mm?
The article Rittal 8685000 VX bayed enclosure system, 1-door, W x H x D: 600x1800x500 mm is currently in stock
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8685000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8685000 VX bayed enclosure system, 1-door, W x H x D: 600x1800x500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8685000 VX bayed enclosure system, 1-door, W x H x D: 600x1800x500 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
