Rittal 8185245 VX side panel, screwable, for HT: 1800x500 mm

Your rating:
Average rating
product review for Rittal 8185245 VX side panel, screwable, for HT: 1800x500 mm
( 4.6 / 5 ) 27 ratings

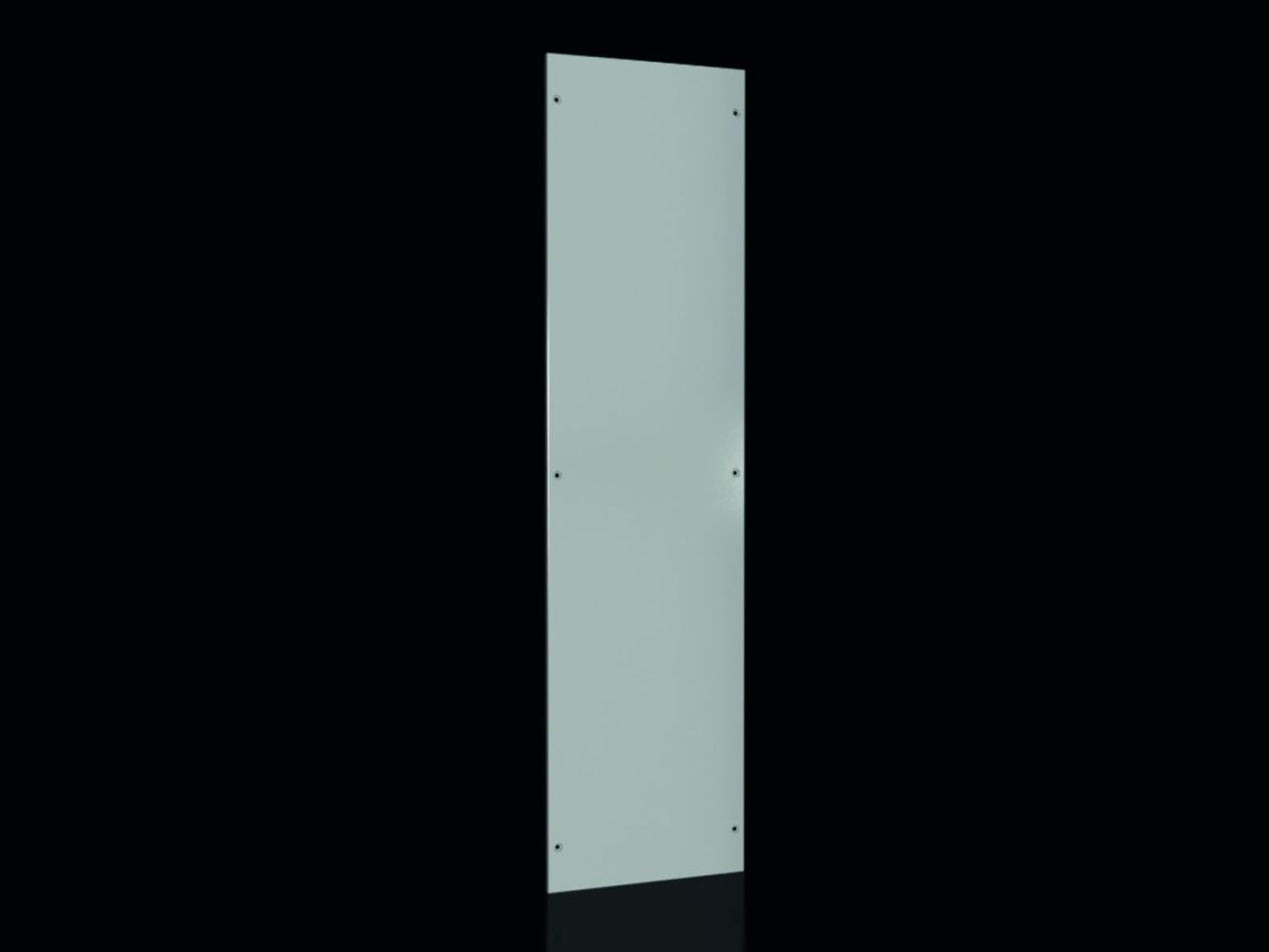

Rittal 8185245
This image may differ from the desired article.
Rittal 8185245Rittal 8185245Rittal 8185245
130,78 EUR
( 155,63 EUR incl. VAT )
≈ £109.46  |  ≈ $143.73
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8185245 VX side panel, screwable, for HT: 1800x500 mm
Datasheet:file_download Download
Lieske Part No.:1440646
Mfg Part No: 8185245
UPC/EAN: 4028177827783
Weight:22 kg
Type:VX 8185.245

Product information for Rittal 8185245:

The Rittal VX 8185.245 is a screw-mounted side panel for enclosures of the VX system, specifically designed for enclosures with a height of 1,800 mm and a depth of 500 mm. The product is made of steel sheet with a thickness of 1.5 mm and is designed for use in industrial environments. The surface is dip-primed and externally powder-coated, providing high corrosion resistance and a uniform color finish in RAL 7035. The side panel is part of a modular enclosure system and serves to compartmentalize and mechanically stabilize the enclosure.

Applications
The side panel is used in industrial facilities, such as in manufacturing technology, automation technology, or power supply, where enclosures with high mechanical load capacity and protective functions are required. It is suitable for use in indoor environments as well as in areas with limited splashing water and dust ingress, as it meets the protection class IP 55 according to IEC 60 529. This protection class ensures that no dust particles can enter the enclosure and that splashing water at an angle up to 60° does not cause damage. Additionally, it complies with Type Ratings Type 1 and Type 12 according to UL 50E, confirming suitability for dry indoor environments and areas with light splashing water.

Functions and Equipment in Detail
The side panel is mounted by screwing, with the use of clip-on side panel holders reducing mounting time. The holders allow for quick and precise fastening, enabling installation by a single person. An integrated hanging aid system facilitates positioning at the desired height and depth. The earthing studs feature a large, paint-free contact surface, ensuring optimal electrical connection and reliable equipotential bonding. The flat part holders with internal contact elements provide automatic equipotential bonding and enhance electromagnetic compatibility (EMC) protection.

Technology Explained Simply
The use of steel sheet with 1.5 mm thickness provides sufficient mechanical strength to protect the side panel against external influences such as mechanical loads or vibrations. The powder-coated surface protects the material from corrosion and ensures a long service life. Protection class IP 55 means the enclosure is protected against dust and splashing water, making it suitable for many industrial applications. Type Ratings Type 1 and Type 12 according to UL 50E confirm suitability for indoor environments and areas with light splashing water, with Type 1 for dry indoor areas and Type 12 for environments with light splashing water and dirt.

Compatibility and Accessories
The side panel is specifically designed for VX enclosures with a height of 1,800 mm and a depth of 500 mm. Compatible accessories include hinges for side panels, which are screw-mounted, as well as a VX internal locking mechanism for side panels, which is galvanized. These components can be used to extend the functionality of the enclosure, such as for secure locking or improved accessibility.

Mounting and Installation
Mounting is done by screwing the side panel onto the designated holders. The clip-on holders allow for quick and precise fastening, enabling installation by a single person. The hanging aid facilitates positioning at the desired height and depth. The earthing studs are designed to provide a large, paint-free contact surface to ensure a reliable electrical connection.

Operational Advantages
The VX 8185.245 provides reliable mechanical stabilization of the enclosure and protection against dust and splashing water. The simple mounting and the possibility of single-person installation reduce labor effort. Automatic equipotential bonding and enhanced EMC protection ensure safe and disturbance-free operation. The use of steel sheet and the powder-coated surface ensure a long service life and high corrosion resistance.

The packaging unit includes 2 pieces, with a net weight of 21.6 kg. The delivery scope includes the fastening material required for mounting the side panel. The product description is confirmed by the manufacturer's specifications, which describe the technical features and compatibility with the VX system. The PCF values (Cradle-to-Gate) amount to 66.61 kg CO2 eq per packaging unit, with class B indicating that the value is approximately calculated based on product weight and self-declared.

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forCabinet type: VX, height: = 1800 mm, depth: = 500 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)66.61 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8185245, EAN: 4028177827783

Questions & answers

What is the delivery time of Rittal 8185245 VX side panel, screwable, for HT: 1800x500 mm?

The article Rittal 8185245 VX side panel, screwable, for HT: 1800x500 mm is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8185245 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8185245 VX side panel, screwable, for HT: 1800x500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8185245 VX side panel, screwable, for HT: 1800x500 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
