Rittal 8951030 VX disconnector hood, height: 1800x500 mm

Your rating:
Average rating
product review for Rittal 8951030 VX disconnector hood, height: 1800x500 mm
( 4.6 / 5 ) 8 ratings

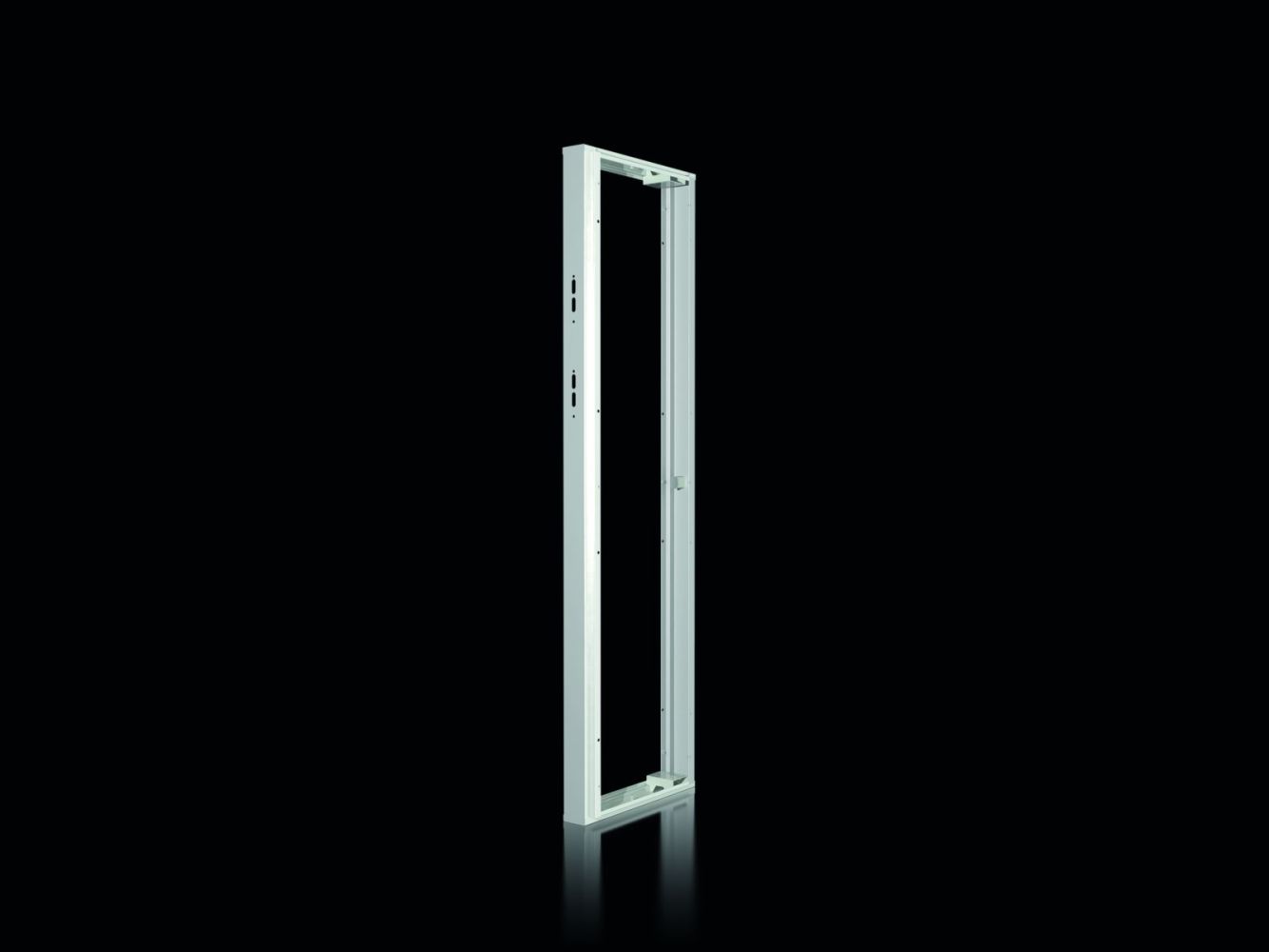

Rittal 8951030
This image may differ from the desired article.
Rittal 8951030Rittal 8951030
401,12 EUR
( 477,33 EUR incl. VAT )
≈ £335.74  |  ≈ $440.83
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8951030 VX disconnector hood, height: 1800x500 mm
Datasheet:file_download Download
Lieske Part No.:1440188
Mfg Part No: 8951030
UPC/EAN: 4028177921047
Weight:16 kg
Type:VX 8951.030

Product information for Rittal 8951030:

Rittal VX 8951.030 is a disconnect switch hood for enclosures of the VX series, designed to convert single-door bayed enclosures into disconnect switch enclosures. The product is made of steel sheet with a thickness of 1.5 mm and is powder-coated in the colour RAL 7035. Dimensions are 103 mm width, 1,800 mm height, and 500 mm depth. The hood is intended for mounting on a single-door enclosure with a door tube frame and can be installed either on the left or right side of the enclosure. This preserves the entire installation area of the enclosure.

Applications

The disconnect switch hood is used to secure enclosures in accordance with the requirements of UL 508 A. It is designed for use with main switches from various manufacturers, including Allen Bradley, Square D, General Electric, Eaton, and Siemens. The hood has been tested in conjunction with operating levers for main switches, including models such as Allen Bradley 1494 F-M1/P1/S1, Square D 9422 A1, General Electric TDA Type 1 and 2, Eaton NZM2(3)-XSH-12-...-NA for Type 12, as well as Siemens operating mechanisms with Bowden cable and depth-variable mechanisms. The mounting allows the setup of disconnect switch enclosures in bayed combinations.

Functions and equipment in detail

The hood is equipped with a main door interlock, ensuring safety interlocking of enclosures and enclosure combinations in accordance with UL regulations. The delivery includes the main door interlock, a cover plate, and the required mounting materials. The front of the hood features two cutouts for operating levers, designed for installation at different heights. In combination with an integrable mounting plate spacer, the installation area of the main enclosure can be increased by up to 14%.

Technology explained simply

The construction from 1.5 mm thick steel sheet ensures sufficient mechanical stability. The powder-coated surface in RAL 7035 provides corrosion protection and uniform visual appearance. The hood is designed for use in industrial environments and meets the protection rating IP 55 in combination with VX series enclosures. This means it is dust-tight and protected against water jets, making it suitable for indoor use. The protection rating NEMA 12 is also achieved in combination with VX enclosures, representing a protection class for indoor environments against dust and splashing water.

Compatibility and accessories

The disconnect switch hood is specifically developed for use with enclosures of the VX series. Compatible accessories include door interlocks for bayed combinations, mounting plate spacers for TS and VX side panels, screwable, for dimensions HT: 1800x500 mm. The use of these accessories extends the functionality and mounting options of the hood.

Mounting and installation

Mounting is carried out on a single-door enclosure with a door tube frame. The hood can be installed on the left or right side of the enclosure, increasing flexibility in the arrangement of enclosure combinations. Fastening is done using the included mounting materials.

Advantages in operation

The disconnect switch hood enables the safe and standard-compliant conversion of standard enclosures into disconnect switch enclosures. The integrated main door interlock ensures safety during maintenance work. The expansion of the mounting area by up to 14% through the mounting plate spacer provides additional space for components. Compatibility with various main switch manufacturers and compliance with UL 508 A standards increase reliability and safety in operation.

Type rating according to UL 50E

The hood meets the type ratings Type 1 and Type 12 according to UL 50E, confirming suitability for indoor use with protection against dust and splashing water. The protection rating IP 55 according to EN 60 529 and NEMA 12 are guaranteed in combination with VX enclosures, ensuring suitability for industrial applications.

General
MaterialSheet steel, 1.5 mm
Surface protectionPowder-coated
ColourRAL 7035
Scope of deliveryIncluding main door lock, cover plate and mounting material.
Width103 mm
Height1.800 mm
Depth500 mm
NoteMounting of hood only on single-door cabinet with door frame
Type rating according to UL 50EType 1, Type 12
Degree of protection IP according to EN 60 529IP 55 in conjunction with VX series cabinets
NEMA degree of protectionNEMA 12 (in combination with VX series cabinets)


Product data sheet
Datasheet for Rittal 8951030, EAN: 4028177921047

Questions & answers

What is the delivery time of Rittal 8951030 VX disconnector hood, height: 1800x500 mm?

The article Rittal 8951030 VX disconnector hood, height: 1800x500 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8951030 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8951030 VX disconnector hood, height: 1800x500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8951030 VX disconnector hood, height: 1800x500 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
