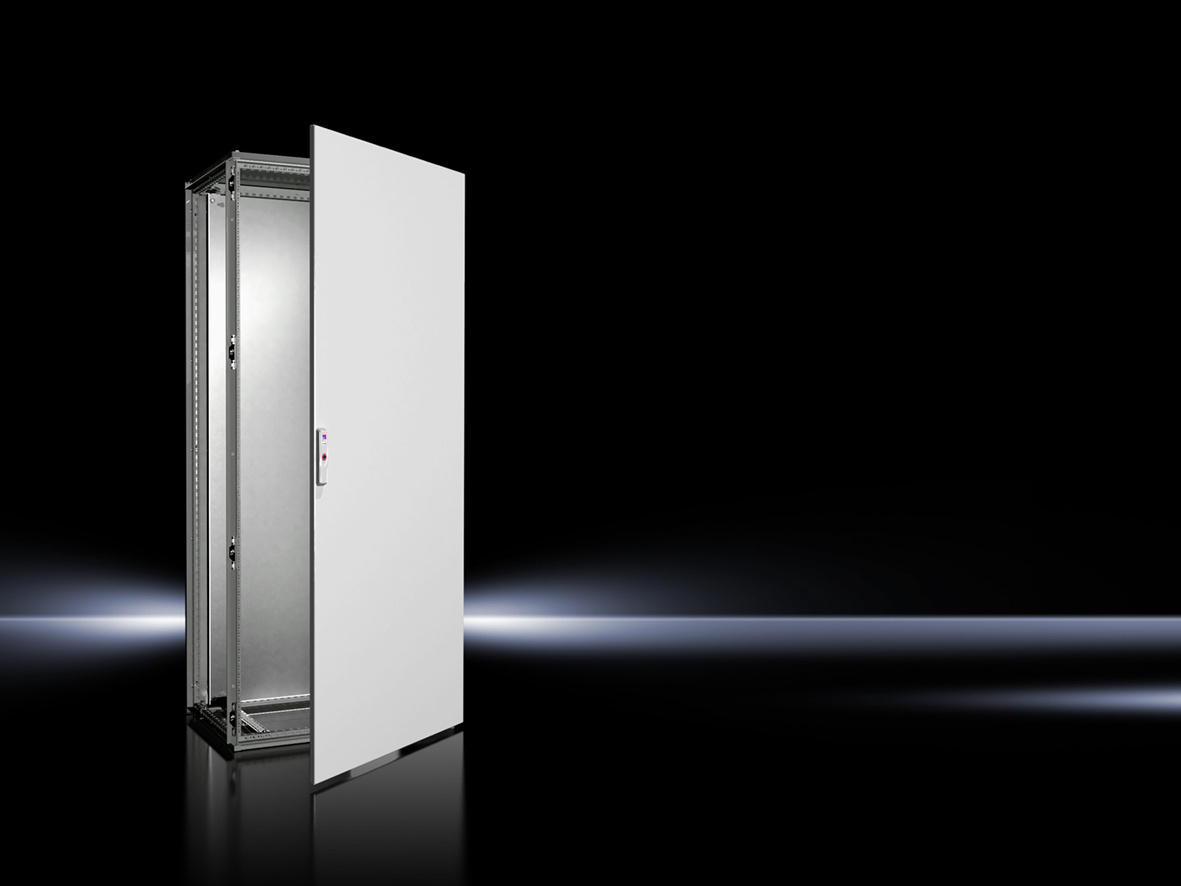

Rittal 8885000 VX bayed enclosure system, 1-door, W x H x D: 800x1800x500 mm,
|
600,08 EUR 603,16 EUR |
|
|
( 714,10 EUR incl. VAT ) ≈ £502.27 | ≈ $659.49 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440193 |
| Mfg Part No: | 8885000 |
| UPC/EAN: | 4028177813939 |
| Weight: | 113 kg |
| Type: | VX 8885.000 |
Product information for Rittal 8885000:
Applications
This enclosure system is designed for use in industrial environments where high mechanical load capacity and protection against dust and splashing water are required. It is suitable for housing control and switching technology in production plants, power supply systems or automation installations. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for outdoor use or damp indoor areas. Additionally, it meets the protection ratings NEMA 1 and NEMA 12 as well as Type ratings Type 1 and Type 12 according to UL 50E, enabling use in various international markets. The IK code IK10 provides high mechanical protection against impact and shock, which is important for installations in harsh operating environments.
Functions and Equipment in Detail
The enclosure system consists of an enclosure frame made of steel sheet with a wall thickness of 1.5 mm, coated with a dip-primed and powder-coated structured paint. The door is made of 2.0 mm thick steel sheet and fitted with a PU foam seal to ensure a tight seal. The door is standard on the right side but can be toollessly repositioned to the left. The locking is achieved via a 3 mm double bar according to DIN 43668, enabling a four-point locking bar mechanism. The door opens up to 130°, with a toolless extension to 180° possible. The clearance from the floor is 17 mm.
The back panel and roof plate are also made of 1.5 mm steel sheet and fitted with PU foam seals. Both are removable and secured with screws, enabling easy maintenance and installation. The floor plates are divided into three parts, removable and replaceable, facilitating access to the interior of the enclosure. The mounting plate made of 3.0 mm steel sheet is C-flanged on the sides and depth-adjustable in 25 mm increments via integrated plastic glides and reusable mounting rails. It features an integrated mounting grid for precise positioning of components.
Technology Explained Simply
The construction of the enclosure is based on a symmetrical profile frame structure with closed and profiled hollow profiles, perforated in a 25 mm grid. This enables flexible mounting of components and space-saving internal fitting. The horizontal profiles feature an additional groove above the seal, ensuring better sealing. The entire construction is equipped with integrated blind rivet nuts M6, enabling protection-rated fastening of fittings. The profile edges are rounded to minimize injury risks. The enclosure system is loadable up to 15,000 N and can therefore safely carry heavier loads.
Compatibility and Accessories
The enclosure system is compatible with various accessories that can be adapted to individual requirements. These include, for example, levelling feet M12 with an adjustment height of 18–43 mm, cable routing spaces for orderly cable routing, mounting ledges for external mounting planes, C-profile rails as well as transport eyes for freight shipping. Additionally, dust protection strips, monitor mounts with VESA connection, cable entry ferrules in various diameters and multi-locking mechanisms for padlocks are available. The mounting plate spacers and partial mounting plates enable flexible adaptation of the mounting surface.
Mounting and Installation
Mounting is performed via the integrated mounting planes and the perforation grid at 25 mm spacing. The mounting plate is depth-adjustable, allowing adaptation to different components. The floor plates are removable, facilitating installation and maintenance. The door can be toollessly repositioned to the left side, increasing flexibility during installation. The back panel and roof plate are removable, enabling installation even in confined spaces. The electrical conductivity between frame, back panel, roof and floor plates ensures automatic equipotential bonding according to DIN 62 208, which is important for safety in electrical installations.
Advantages in Operation
The enclosure system offers high mechanical stability, reliable protection rating and flexible mounting. The integrated mounting planes and perforation grid enable quick and space-saving installation of components. The removable parts such as door, back panel and roof facilitate maintenance and repair. The powder-coated surface in RAL 7035 ensures a robust and aesthetically pleasing appearance. The use of steel sheet in various wall thicknesses ensures high strength and durability. The integrated QR codes on roof, door, mounting plate, back panel and nameplate enable unique identification and labeling of the enclosure.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 800 mm |
| Height | 1.800 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 319.04 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
