Rittal 8618010 VX viewing door, W x H: 800x1800 mm

Your rating:
Average rating
product review for Rittal 8618010 VX viewing door, W x H: 800x1800 mm
( 4.6 / 5 ) 22 ratings
Rittal 8618010

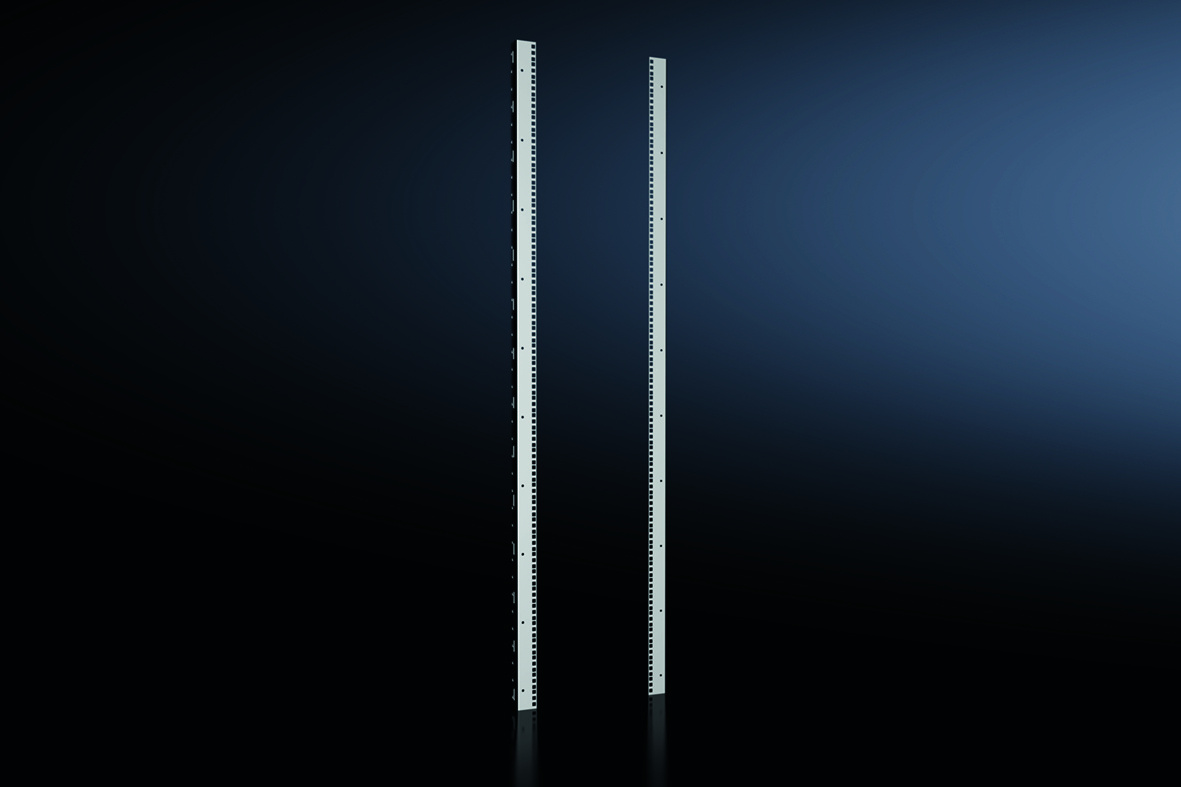

This image may differ from the desired article.
Rittal 8618010Rittal 8618010Rittal 8618010
425,85 EUR
( 506,76 EUR incl. VAT )
≈ £356.44  |  ≈ $468.01
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 8618010 VX viewing door, W x H: 800x1800 mm
Datasheet:file_download Download
Lieske Part No.:1440899
Mfg Part No: 8618010
UPC/EAN: 4028177920972
Weight:16 kg
Type:VX 8618.010

Product information for Rittal 8618010:

The Rittal VX 8618.010 is a viewing door for enclosures of the VX system, designed as a replacement for a sheet metal door or rear panel. It enables visual monitoring of devices and systems inside the enclosure without having to open the door. The door is specifically designed for enclosures with a width of 800 mm and a height of 1,800 mm, fitting the standard dimensions of the VX system. The construction from aluminium extruded profile ensures a stable and durable structure, suitable for use in industrial environments.

Applications
The viewing door is used in industrial plants, automation technology, and electrical engineering, where continuous monitoring of installed components is required. It is particularly suitable for systems where quick visual inspection of LEDs, displays, or operating states is necessary without opening the enclosure door.

Functions and Equipment in Detail
The door consists of a frame made of aluminium extruded profile, powder-coated in RAL 7035. The viewing pane is made of single-glazed safety glass with a thickness of 3 mm and features an internally printed mask in RAL 9005. This mask ensures uniform optical appearance and reduces glare. The door is supplied with a bar lock incorporating a double-bar lock insert to ensure secure and reliable locking. Additionally, four 180° hinges are included, allowing full opening of the door.

Technology Explained Simply
The protection rating IP 55 according to IEC 60 529 protects the door against dust and splashing water, making it suitable for use in humid or dusty environments. The IK code IK08 provides mechanical protection against impacts, such as light shocks or vibrations. Certification according to UL 50E in categories Type 1 and Type 12 confirms suitability for indoor installations and environments with limited protection against dust and splashing water. These certifications are important for use in various industries, particularly in manufacturing and machine building.

Compatibility and Accessories
The viewing door is specifically designed for enclosures of the VX system with dimensions of 800 mm width and 1,800 mm height. As an accessory, the VX lock component is mentioned, which is required during installation in place of the rear panel.

Installation and Mounting
Mounting is done in place of a sheet metal door or rear panel. The provided hinges and bar lock facilitate installation. When used in place of the rear panel, the lock components for frame 8618.110 are required to ensure secure fastening. Installation is typically carried out by skilled personnel familiar with enclosure assembly.

Operational Advantages
The viewing door enables quick and safe visual inspection of devices installed in the enclosure without opening the door. This reduces the risk of accidents and increases operational safety. The use of safety glass and IK08 protection ensures high mechanical stability and durability. The powder-coated surface provides additional corrosion protection and is easy to clean. The UL 50E and IP 55 certifications ensure compliance with international standards and facilitate approval in various markets.

General
MaterialFrame: aluminium extruded profile, viewing panel: single-pane safety glass, 3 mm
Surface protectionPowder-coated
ColourFrame: RAL 7035, viewing window (internally printed mask): RAL 9005
Scope of deliveryVision door, bar lock with double-bar insert, 180° hinges (4 pieces)
IK codeIK08
NoteWhen mounted instead of rear panel, locking parts for frame 8618.110 are required
Type rating according to UL 50EType 1, Type 12
Degree of protection IP according to IEC 60 529IP 55
Suitable forHousing type: VX, width: = 800 mm, height: = 1.800 mm


Product data sheet
Datasheet for Rittal 8618010, EAN: 4028177920972

Questions & answers

What is the delivery time of Rittal 8618010 VX viewing door, W x H: 800x1800 mm?

The article Rittal 8618010 VX viewing door, W x H: 800x1800 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8618010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8618010 VX viewing door, W x H: 800x1800 mm always at the best possible price. We can give you a discount of 2% on Rittal 8618010 VX viewing door, W x H: 800x1800 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
