Rittal 8886000 VX bayed enclosure system, 1-door, W x H x D 800x1800x600 mm,

Your rating:
Average rating
product review for Rittal 8886000 VX bayed enclosure system, 1-door, W x H x D 800x1800x600 mm,
( 4.5 / 5 ) 11 ratings

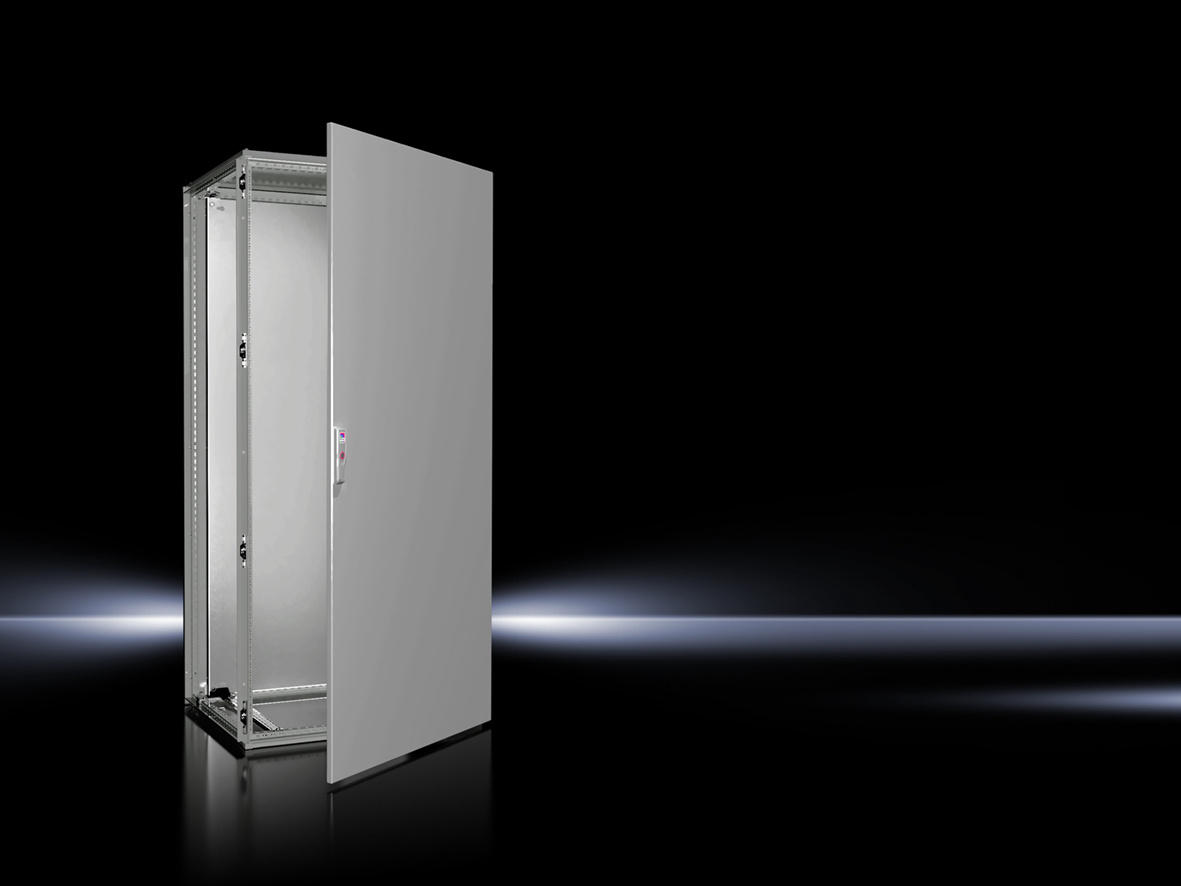

Rittal 8886000
This image may differ from the desired article.
Rittal 8886000Rittal 8886000Rittal 8886000Rittal 8886000Rittal 8886000Rittal 8886000Rittal 8886000
655,92 EUR 655,95 EUR
( 780,54 EUR incl. VAT )
≈ £549.01  |  ≈ $720.86
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8886000 VX bayed enclosure system, 1-door, W x H x D 800x1800x600 mm,
Datasheet:file_download Download
Lieske Part No.:1440192
Mfg Part No: 8886000
UPC/EAN: 4028177813946
Weight:115.9 kg
Type:VX 8886.000

Product information for Rittal 8886000:

The Rittal VX 8886.000 is an anreih enclosure system made of sheet steel, designed for use in industrial and technical applications. With dimensions of width 800 mm, height 1,800 mm, and depth 600 mm, it offers a standardized, modular design for efficient enclosure expansion. The system features a single door on the front side and includes an integrated mounting plate, facilitating the installation of components and control systems. The construction is designed for use in baying arrangements, enabling flexible and space-saving configurations of multiple enclosures.

Applications
This enclosure system is suitable for industrial environments where high mechanical strength and protection against dust and splashing water are required. It is commonly used in automation technology, manufacturing industry, or machine building, where electrical and electronic components must be housed in a protected enclosure. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for outdoor use or humid indoor environments. The NEMA classification includes NEMA 1 and NEMA 12, confirming suitability for dry indoor environments as well as environments with light dirt and splashing water. The type rating according to UL 50E includes Type 1 and Type 12, demonstrating compliance with North American safety standards. The IK code IK10 guarantees high mechanical protection against impact and shock.

Functions and Equipment in Detail
The enclosure system consists of an enclosure frame made of sheet steel with a wall thickness of 1.5 mm, featuring a dip-primed surface. The door, also made of sheet steel (2.0 mm), is fitted with a PU foam seal and features a four-point locking bar mechanism with a double-bolt insert according to DIN 43668. The door hinges are standardly positioned on the right side but can be tool-free repositioned to the left. The door opening angle is 130° and can optionally be extended to 180° without tools. The clearance from the floor is 17 mm. The roof plate, rear panel, and base plates (each 1.5 mm sheet steel) are removable and fitted with PU foam seals. The rear panel includes a positioning aid. The mounting plate, made of 3.0 mm sheet steel, is C-flanged on the sides and adjustable in depth in 25 mm increments, allowing flexible adaptation to different components. The mounting plate is equipped with integrated plastic gliding pieces and reusable mounting rails.

Technology Explained Simply
The construction of the enclosure system is based on a symmetrical profile frame made of closed and profiled hollow sections. The horizontal profiles feature an additional groove above the seal to enhance weather protection. The entire construction is perforated in a 25 mm grid, facilitating the mounting of components and cage nuts. Integrated blind rivet nuts M6 allow for protection-rated fastening of fittings. The flat parts (door, roof, rear panel, base plates) are electrically connected to the frame, ensuring automatic equipotential bonding according to DIN 62 208. This is important for electrical safety and grounding of installed components. The mounting plate features a mounting grid to simplify component positioning.

Compatibility and Accessories
The enclosure system is compatible with various accessories that meet individual requirements for enclosure expansion. These include, for example, circuit diagram pockets for different sub-division variants, levelling feet with an adjustment height of 18–43 mm, C-profile rails, transport eyes for freight shipping, dust protection strips, monitor mounts with VESA connection, comfort handles for half cylinders, mounting brackets, cable entry ferrules in various diameters (e.g. 13 mm, 21 mm), and multi-locking systems for padlocks. The base plates are split and removable, facilitating access to the base area.

Mounting and Installation
Mounting is performed using the integrated blind rivet nuts M6 on the profile frame, enabling protection-rated fastening of fittings. The mounting plate is adjustable in depth in 25 mm increments, allowing flexible adaptation to different components. The base plates are removable and replaceable, facilitating access to the base area. The enclosure construction is bayable on all sides, enabling modular arrangements of multiple enclosures. The load capacity of the enclosure is up to 15,000 N.

Operational Advantages
The enclosure system offers high mechanical stability and reliable protection for installed components. The integrated mounting plate and depth-adjustable mounting rails enable flexible and efficient installation of components. The removable flat parts (door, roof, rear panel, base plates) facilitate access and maintenance. The conductive connection of the flat parts to the frame ensures automatic equipotential bonding, which is important for electrical safety. The IP 55 protection rating and IK10 rating make the system suitable for demanding operating conditions. The modular construction allows for flexible expansion and adaptation to future requirements.

The surface of the enclosure frame is dip-primed, while the door, roof, and rear panel are dip-primed and externally powder-coated with a textured finish. The mounting plate and base plates are galvanized. The enclosure colour is RAL 7035. The delivery includes the enclosure frame, door, door hinges (right, changeable), roof plate, rear panel, base plates, mounting plate, two mounting rails (18 x 39 mm), and the locking mechanism with 3 mm double bolt. The dimensions of the mounting plate are 699 mm (W) x 1,696 mm (H). The protection rating IP 55, NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12) and the IK code IK10 are documented in the technical specifications. The PCF values (Cradle-to-Gate) are 325.18 kg CO2 eq (Category B).

General
MaterialCabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm
Surface protectionCabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised
ColourRAL 7035
Scope of deliverycabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar
Width800 mm
Height1.800 mm
Depth600 mm
Mounting plate dimensions (W x H)699 mm x 1.696 mm
Degree of protection IP according to EN 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK10
Number of doors1
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)325.18 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8886000, EAN: 4028177813946
