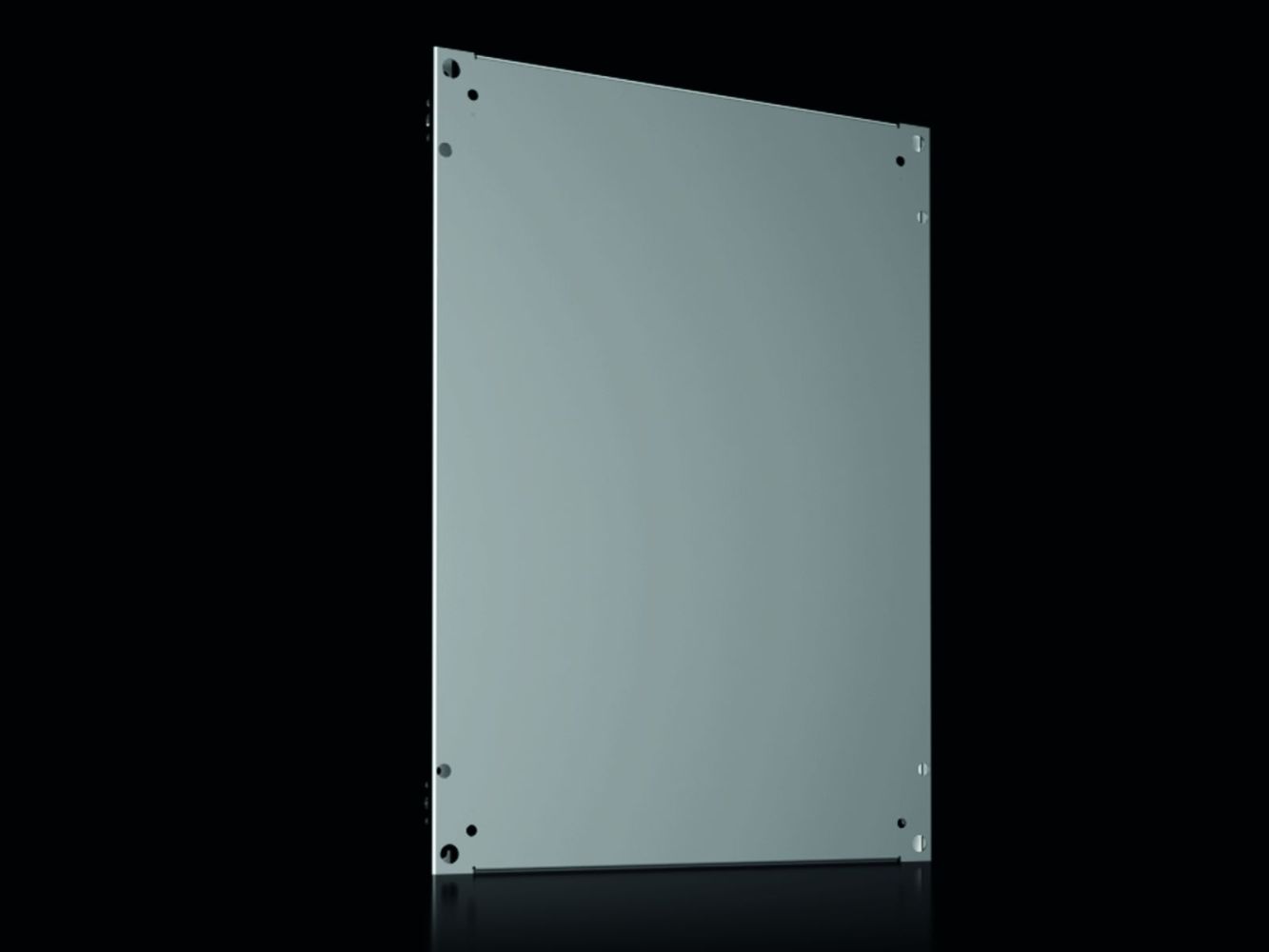

Rittal 8617540 VX partial mounting plate, W x H: 500 x 700 mm

Your rating:
Average rating
product review for Rittal 8617540 VX partial mounting plate, W x H: 500 x 700 mm
( 4.3 / 5 ) 18 ratings
Rittal 8617540
This image may differ from the desired article.
Rittal 8617540Rittal 8617540Rittal 8617540
53,59 EUR 55,25 EUR
( 63,77 EUR incl. VAT )
≈ £44.85  |  ≈ $58.90
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8617540 VX partial mounting plate, W x H: 500 x 700 mm
Datasheet:file_download Download
Lieske Part No.:1440879
Mfg Part No: 8617540
UPC/EAN: 4028177919396
Weight:9.22 kg
Type:VX 8617.540

Product information for Rittal 8617540:

The Rittal VX partial mounting plate, type VX 8617.540, is a modular system accessory for enclosures of the VX, VX SE and PC series. It is designed to accommodate additional electrical or electronic components inside the enclosure and provides a flexible mounting platform for various applications. The plate has dimensions of 500 mm width and 700 mm depth and is made of steel sheet with a thickness of 2.5 mm. The surface is zinc-coated, providing good corrosion protection and increasing service life in industrial use.

Applications

The partial mounting plate is used in enclosures to create additional mounting space for assemblies, controls, network components or other devices. It is particularly suitable for systems requiring modular expansion or optimized space utilization within the enclosure. The plate can be used in enclosures with a door width of 600 mm or 800 mm and a depth of 600 mm or 800 mm. Compatibility includes enclosure types VX, VX SE and PC.

Functions and Equipment in Detail

The mounting plate can be installed either vertically as a standing surface or horizontally as a flat base within the enclosure. Fixing is done directly to the enclosure profile. In a forward-mounted configuration, the plate can be attached at any mounting level within the enclosure using system chassis. For multi-level installations, where multiple plates are arranged in sequence, a hinge mounting can be used to quickly access the rear levels. The delivery includes the fastening material required for installation.

Technology Explained Simply

The use of steel sheet with a thickness of 2.5 mm ensures sufficient mechanical stability to safely support even heavier components. The zinc-coated surface protects the material from corrosion, especially in damp or industrial environments. The dimensions of 500 mm width and 700 mm depth allow for efficient use of available space within the enclosure. The flexible mounting options – vertical, horizontal or swivelling – increase adaptability to different requirements in enclosure construction.

Compatibility and Accessories

The partial mounting plate is designed for enclosure types VX, VX SE and PC. For installation in VX SE, PC and IW, the VX adapter rail is required. The plate is suitable for enclosures with a door width of 600 mm or 800 mm and a depth of 600 mm or 800 mm. Compatibility with these enclosure types enables universal use in various industrial systems.

Installation and Mounting

Installation is carried out by fastening to the enclosure profile. In forward-mounted configurations, the plate is mounted via system chassis, allowing flexible positioning within the enclosure. In multi-level installations, the plate can be mounted swivelably to facilitate access to rear mounting levels. The included fastening material supports secure and quick installation.

Advantages in Operation

The partial mounting plate offers a flexible and robust solution for expanding mounting space within the enclosure. The modular design enables easy adaptation to changing requirements. The swivelling version in multi-level installations improves maintainability and access to rear components. The use of zinc-coated steel sheet ensures long service life and high reliability in industrial use. Compatibility with various enclosure types increases the product’s range of applications.

General
MaterialSheet steel, 2.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Suitable for door width600 mm
Mounting optionsInstallation can be either vertical as upright mounting surface or horizontal as flat floor; mounting is directly to cabinet profile; with pre-assembled construction, mounting is via system chassis at any mounting level within the cabinet; with multi-level installation of partial mounting plates in sequence, these can be hinged for quick access to rear levels
NoteFor installation in VX SE, PC, IW, the VX adapter rail is required
Width500 mm
Depth700 mm
Suitable for housing typeVX, VX SE, PC
Suitable forEnclosure type: VX, VX SE, PC, Width: = 600 mm, = 800 mm, Depth: = 600 mm, = 800 mm
PCF/VE (Cradle-to-Gate)35.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8617540, EAN: 4028177919396

Questions & answers

What is the delivery time of Rittal 8617540 VX partial mounting plate, W x H: 500 x 700 mm?

The article Rittal 8617540 VX partial mounting plate, W x H: 500 x 700 mm is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617540 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617540 VX partial mounting plate, W x H: 500 x 700 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617540 VX partial mounting plate, W x H: 500 x 700 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
