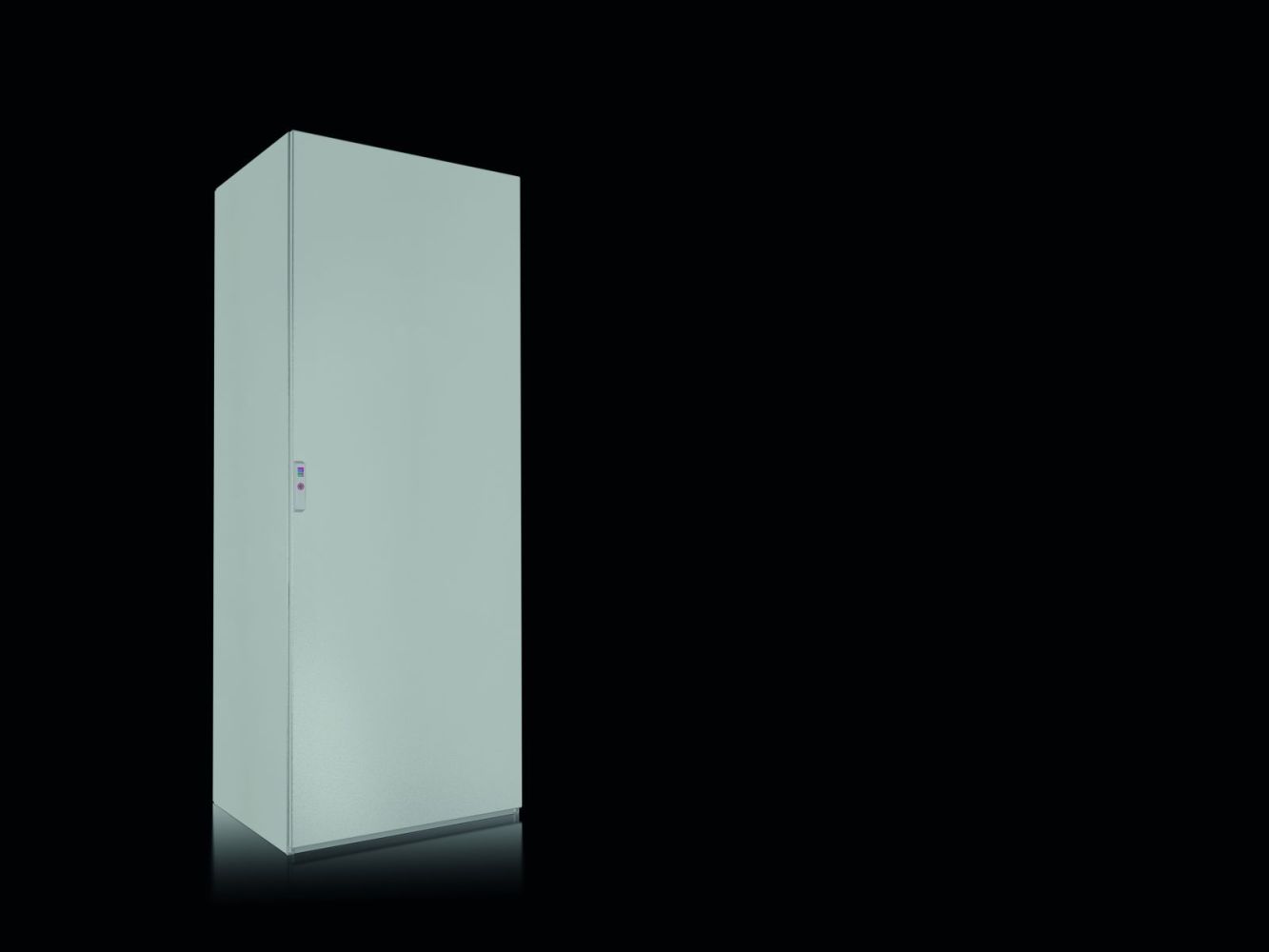

Rittal 5834600 VX SE system single enclosure, 800x2000x600 mm, steel
|
734,74 EUR |
|
|
( 874,34 EUR incl. VAT ) ≈ £614.98 | ≈ $807.48 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910635 |
| Mfg Part No: | 5834600 |
| UPC/EAN: | 4028177959224 |
| Weight: | 142.2 kg |
| Type: | SE 5834600 |
Product information for Rittal 5834600:
Applications include industrial control systems, automation technology, and enclosures in production environments where high mechanical stability and protection are required. The enclosure is suitable for use indoors as well as outdoors, where it must be protected from precipitation and dust. The protection class IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for humid or dusty environments. Additionally, it meets protection classes NEMA 3R and NEMA 12, as well as type ratings according to UL 50E: Type 1, Type 2, Type 3, Type 3R, and Type 12. The IK code IK10 provides high protection against mechanical impacts, such as shocks or vibrations.
Functions and equipment in detail include a single-door front with hinges on the right side, which can be changed to the left. The door is made of 2.0 mm sheet steel and features a horizontally double-foamed seal, as well as a removable square tube frame with 25 mm pitch perforation. The locking is achieved via a 3 mm double latch, which is four-point locked. The door opens up to 130°, with an optional upgrade to 180°. An automatic equipotential bonding between door and enclosure body is integrated. The rear panel is screwed and also features a foamed seal, ensuring a tight seal. The base plates are three-part, removable, and replaceable, also with automatic equipotential bonding.
Technology explained simply shows that the enclosure, door, and rear panel are made of 1.5 mm sheet steel, while the mounting plate is made of 3.0 mm sheet steel. The surface of the enclosure components is dip-primed and externally powder-coated with a textured lacquer in RAL 7035. The mounting plate and base plates are galvanized, providing additional corrosion protection. The triple surface treatment — nanoceramic coating, electrophoretic dip priming, and powder-coated textured lacquer — ensures resistance to mineral oils, lubricants, machining emulsions, and solvents.
Compatibility and accessories include system compatibility with accessories from the VX25 system, enabling flexible expansion. Suitable accessories include, among others, plinth corner pieces, levelling feet, lock inserts, comfort handles, C-profile rails, support rollers, and transport eyes. These components can be used to adapt to specific mounting or transport requirements.
Mounting and installation are performed using the integrated mounting levels and the system perforation in 25 mm increments. The mounting plate is depth-adjustable via plastic gliding pieces and mounting rails. The base plates are pre-mounted and allow for easy installation. The rear panel is removable, enabling flexible maintenance and servicing.
Operational advantages lie in high mechanical stability, easy mounting due to the single-unit body design, and high protection function. System compatibility with VX25 accessories enables scalable and modular equipment. The surface treatment ensures long-term corrosion resistance, even in demanding environments. The integrated mounting levels and perforation grid facilitate component positioning and reduce mounting time.
| General | |
| Material | Housing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Housing, door and rear panel: dip primed, externally powder coated, textured lacquer; mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | enclosure top and sides closed, door(s), for single-door cabinets door hinge on right, reversible to left, mounting plate, base plates, rear panel, removable, locking: 3 mm double latch, 2 mounting rails 18 x 39 mm, rear panel, single-piece |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 407.47 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5834600 VX SE system single enclosure, 800x2000x600 mm, steel?
The article Rittal 5834600 VX SE system single enclosure, 800x2000x600 mm, steel is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5834600 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5834600 VX SE system single enclosure, 800x2000x600 mm, steel always at the best possible price. We can give you a discount of 2% on Rittal 5834600 VX SE system single enclosure, 800x2000x600 mm, steel if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
