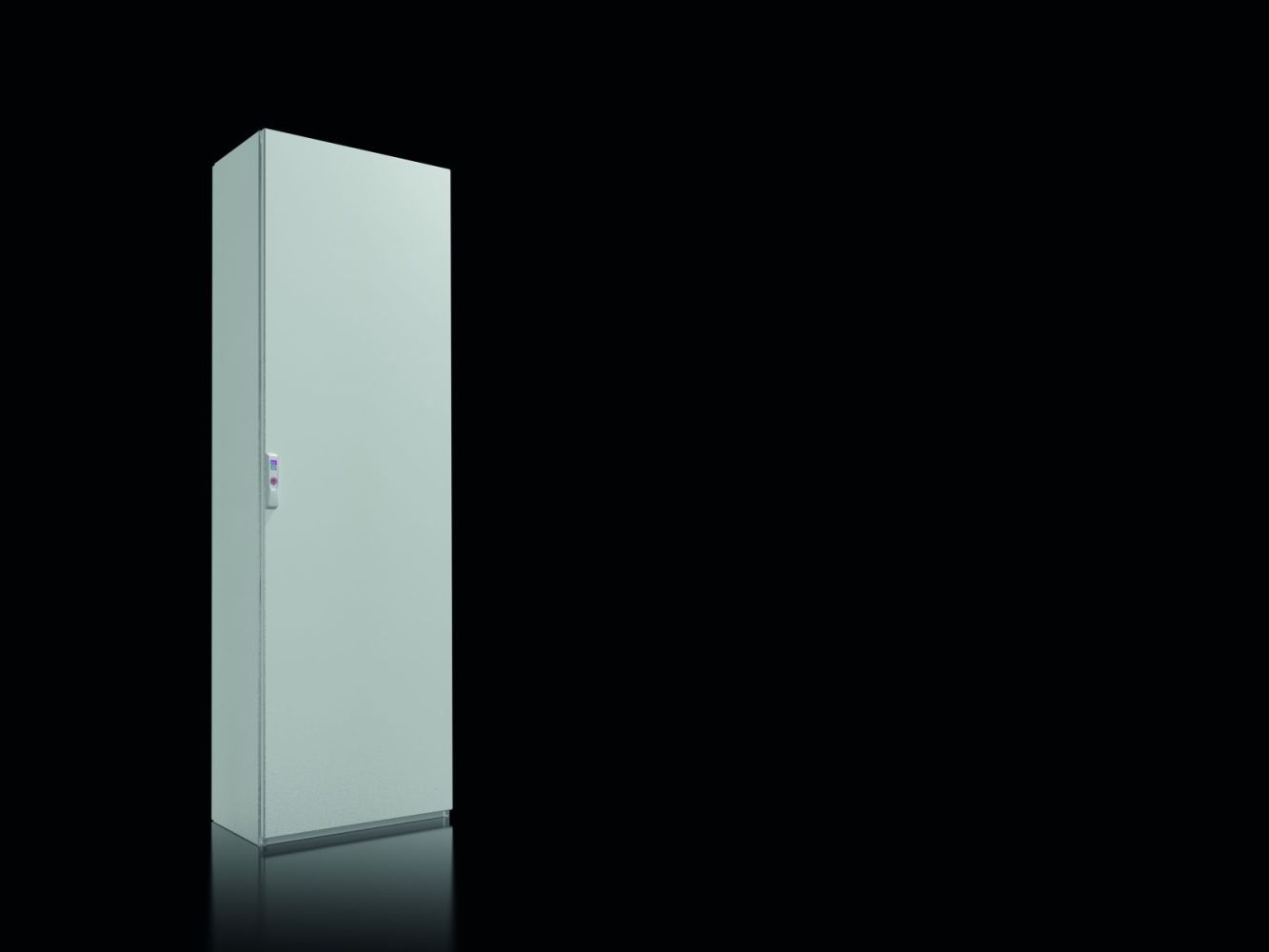

Rittal 5820600 VX SE system single enclosure 600x1800x300 mm steel
|
544,53 EUR |
|
|
( 647,99 EUR incl. VAT ) ≈ £455.77 | ≈ $598.44 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910631 |
| Mfg Part No: | 5820600 |
| UPC/EAN: | 4028177959248 |
| Weight: | 97 kg |
| Type: | SE 5820600 |
Product information for Rittal 5820600:
Applications include industrial control systems, automation technology, and enclosures in production environments where high mechanical stability and protection functions are required. The enclosure is particularly suitable for installations operated indoors or under protected conditions outdoors, as it offers high mechanical load capacity and weather resistance.
Functions and equipment in detail include a mounting plate made of 3.0 mm sheet steel, side C-flanged, and mounted depth-adjustable in 25 mm increments using integrated plastic glides and mounting rails. The mounting plate provides an integrated mounting grid for precise positioning of components. The rear panel is screwed and single-piece, enabling easy assembly and maintenance. The base plates are three-part, removable, and replaceable, also with automatic equipotential bonding. The entire construction is made of sheet steel with a wall thickness of 1.5 mm for enclosure, rear panel, and base plates, and 2.0 mm for the door.
Technology explained simply shows the surface treatment: enclosure, door, and rear panel are dip-primed and externally powder-coated with textured paint in RAL 7035. The mounting plate and base plates are galvanized, providing an additional corrosion protection layer. The triple surface treatment – nanoceramic coating, electrophoretic dip priming, and external lacquering – ensures resistance against mineral oils, lubricants, machining emulsions, and solvents. The protection class IP 55 according to EN 60 529 protects against dust and splashing water, making it suitable for use in humid or dusty environments. The protection class NEMA 3R and NEMA 12 as well as the type rating according to UL 50E (Type 1, 2, 3, 3R, 12) confirm suitability for industrial environments with increased requirements for protection and safety. The IK code IK10 guarantees high mechanical protection against impacts.
Compatibility and accessories include system compatibility with accessories of the VX25 system, enabling flexible expansion. Suitable accessories include levelling feet, lock inserts, comfort handles, support rollers, transport eyes, door latches, plinth trim panels, and C-profile rails. These components can be used to adapt to specific mounting and safety requirements.
Assembly and installation is performed via the pre-fabricated integral construction, where no additional side panels need to be mounted. The mounting plate is depth-adjustable, enabling flexible adaptation to different components. The base plates are removable, facilitating cleaning and maintenance. The rear panel is removable, simplifying access to internal components.
Operational advantages lie in efficient assembly, high mechanical stability, and ease of maintenance. The integrated mounting levels and system hole grid at 25 mm spacing enable space-saving and standardized installation of components. The high protection class and IK10 code ensure long service life even in demanding environments. The use of sheet steel with double sealing and automatic equipotential bonding increases the safety and reliability of the enclosure.
The enclosure is designed for use in industrial plants where reliability, safety, and ease of maintenance are paramount. The combination of stable construction, high protection class, and system compatibility makes it a suitable solution for various applications in automation and electrical engineering.
| General | |
| Material | Housing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Housing, door and rear panel: dip primed, externally powder coated, textured lacquer; mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | enclosure top and sides closed, door(s), for single-door cabinets door hinge on right, reversible to left, mounting plate, base plates, rear panel, removable, locking: 3 mm double latch, 2 mounting rails 18 x 39 mm, rear panel, single-piece |
| Width | 600 mm |
| Height | 1.800 mm |
| Depth | 300 mm |
| Mounting plate dimensions (W x H) | 499 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 267.26 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
