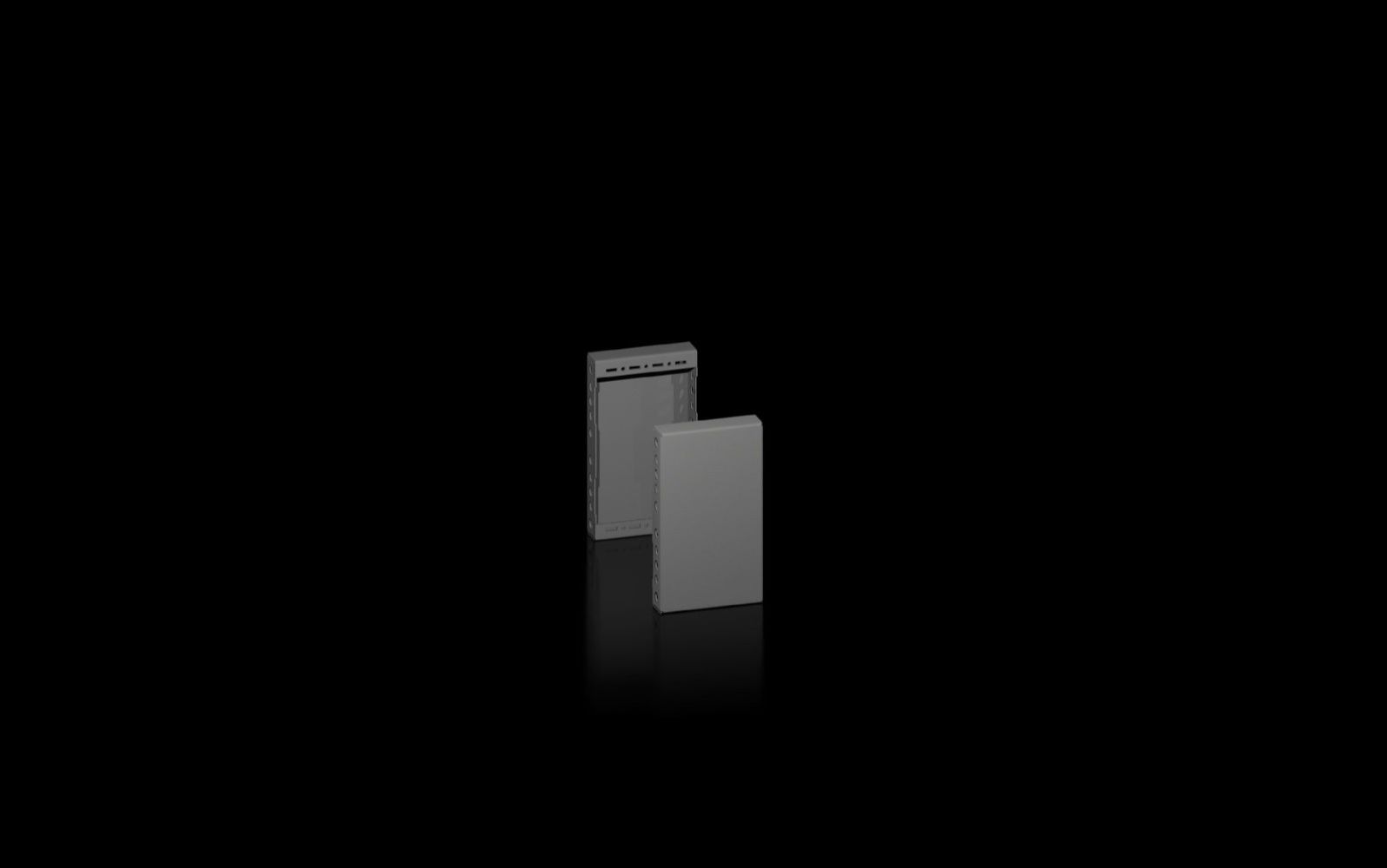

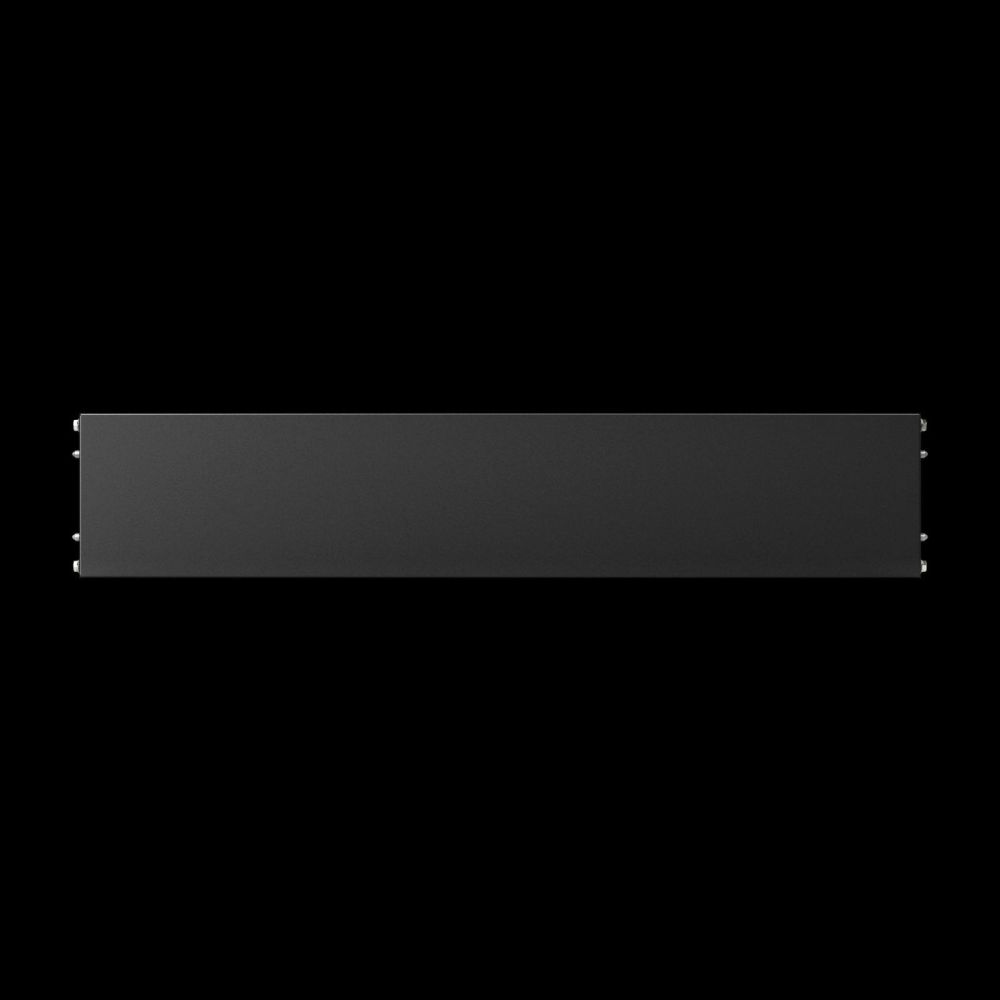

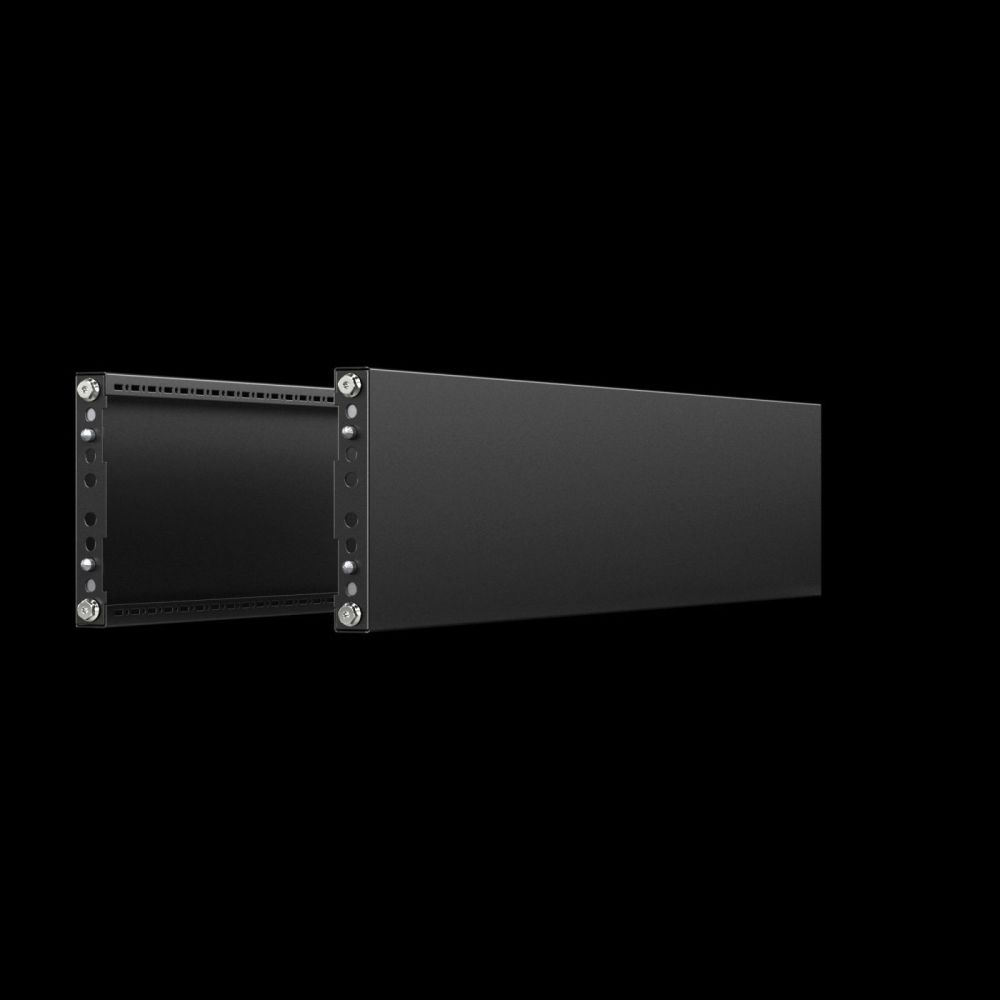

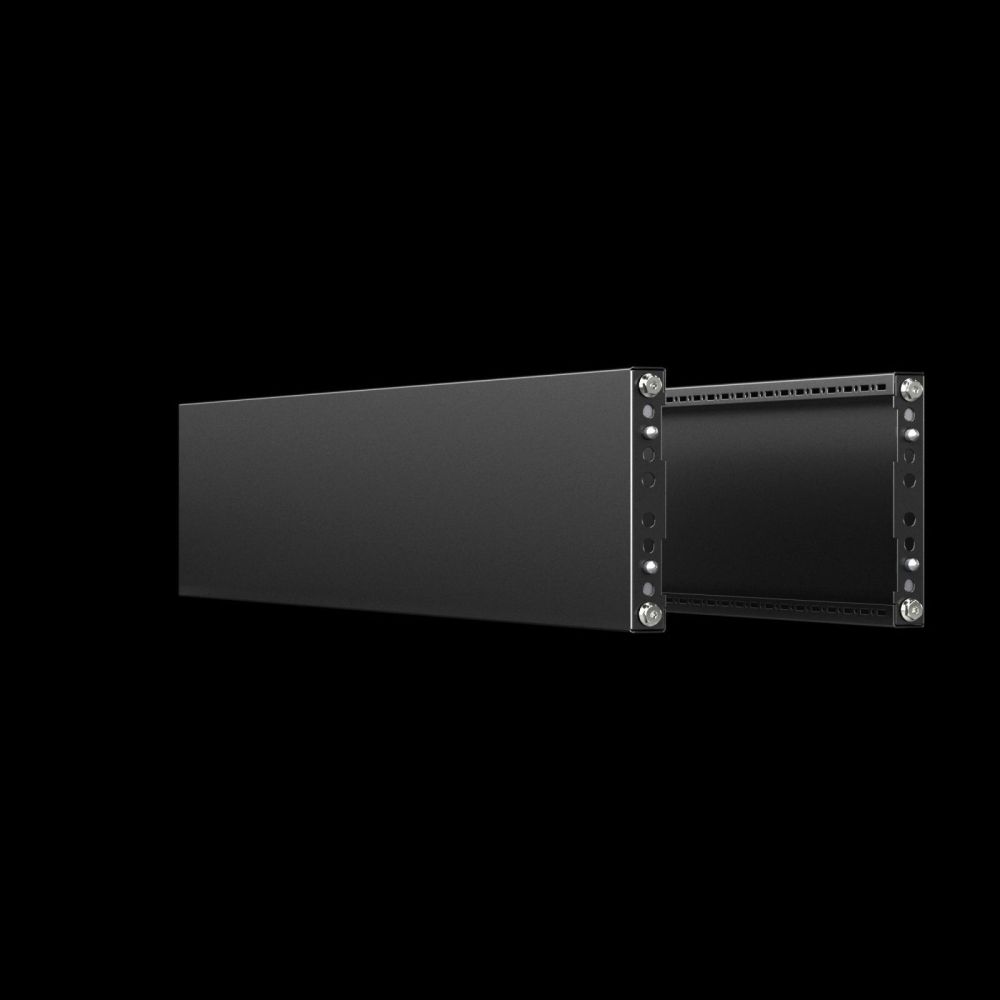

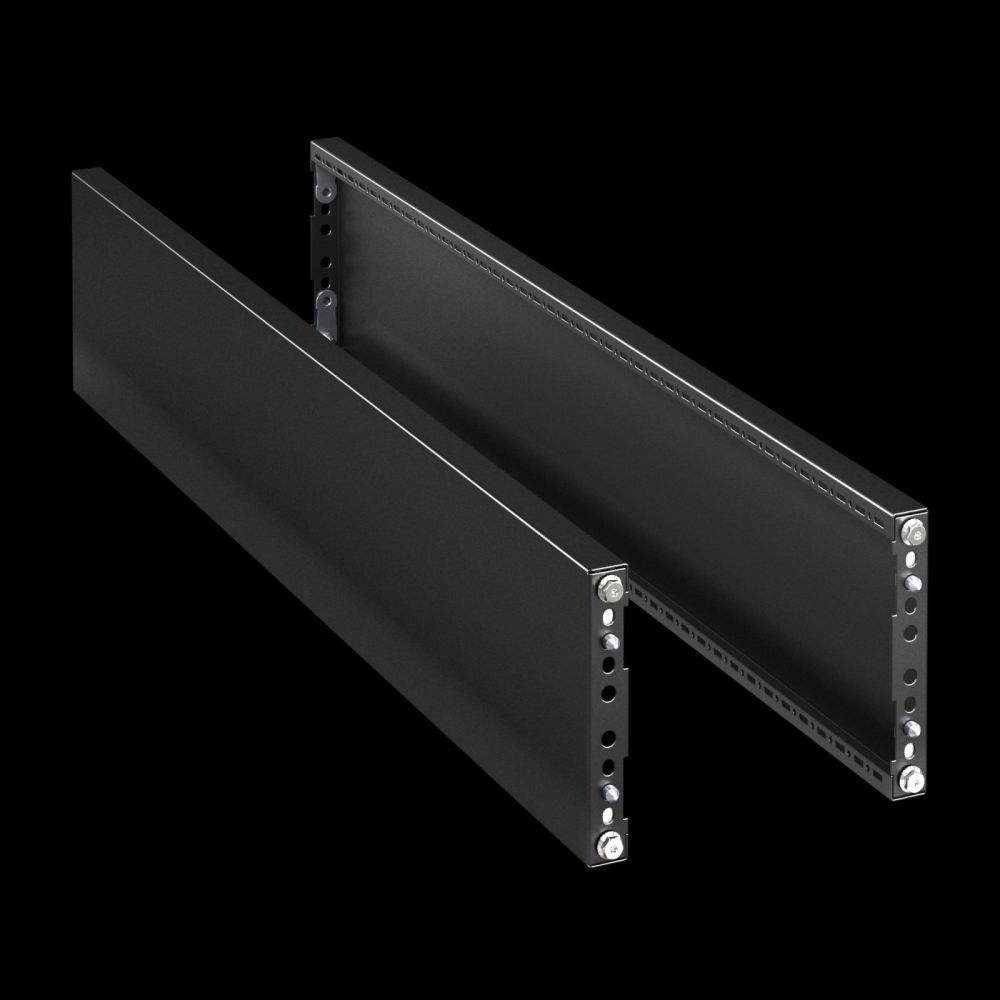

Rittal 8660040 VX plinth trim panels, side, H: 200 mm, for D: 300 mm

Your rating:
Average rating
product review for Rittal 8660040 VX plinth trim panels, side, H: 200 mm, for D: 300 mm
( 5 / 5 ) 2 ratings
Rittal 8660040
This image may differ from the desired article.
Rittal 8660040Rittal 8660040Rittal 8660040Rittal 8660040Rittal 8660040Rittal 8660040
25,76 EUR
( 30,65 EUR incl. VAT )
≈ £21.56  |  ≈ $28.31
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8660040 VX plinth trim panels, side, H: 200 mm, for D: 300 mm
Datasheet:file_download Download
Lieske Part No.:682743
Mfg Part No: 8660040
UPC/EAN: 4028177978270
Weight:1.25 kg
Type:VX 8660040

Product information for Rittal 8660040:

The VX plinth trim panel, side, type 8660040, from Rittal is a system accessory for finishing plinth units in industrial and IT applications. It serves as a side closure for a plinth trim panel and supports additional stabilization or internal fitting of bayed plinths. The product is made of steel sheet and available in the color RAL 9005 (black). The height is 200 mm, and it is specifically designed for plinth systems with a depth of 300 mm. The design is closed, ensuring complete coverage of the side surfaces.

Applications
The plinth trim panel is suitable for a variety of enclosure types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. It is particularly used in installations where proper finishing of plinth trim panels is required to meet aesthetic and structural requirements. The panel can be mounted on 200 mm high plinths, with the option to use either one 200 mm high panel or two 100 mm high panels. This allows for flexible adaptation to different mounting configurations.

Functions and Features in Detail
The panel is supplied with fastening material, enabling installation without additional tools or components. The use of steel sheet ensures high mechanical stability and durability. The RAL 9005 color provides a uniform visual appearance that integrates well in industrial environments. The closed design prevents dust or foreign objects from entering the plinth trim panel.

Technology Explained Simply
The plinth trim panel is designed for use in systems with an exact depth of 300 mm. The height of 200 mm matches the standard height of many plinth trim panels, ensuring a direct fit. The choice of steel sheet provides sufficient strength to withstand mechanical loads during operation. Fastening is done using the included material, which is designed for secure mounting on plinth trim panels.

Compatibility and Accessories
The panel is compatible with various enclosure types in the Rittal system, particularly the VX and TS series, as well as models TX CableNet, TP, PC, IW, and CX. Suitable accessories include plinth baying brackets, VX plinth expansion angles (for 100 mm or 100/200 mm high panels), and optional panel fastening components. These components support the installation and internal fitting of plinth systems. The system chassis 23 x 64 mm with a depth of 300 mm is also compatible and can be used in the same system.

Installation and Mounting
Mounting is done on the side surfaces of the plinth trim panels. The included fastening material enables simple and secure attachment. The panel is fastened at the designated mounting points, with precise positioning ensured by the specified dimensions and fit. Installation requires no additional tools or components.

Operational Advantages
The plinth trim panel provides a stable and aesthetically pleasing finishing cover for plinth systems. The use of steel sheet and the closed design ensure high mechanical strength and protection against contamination. Compatibility with various enclosure types and the included fastening material facilitate integration into existing systems. The panel is designed for industrial environments and supports the proper design of plinth systems.

The plinth trim panel meets the type ratings according to UL 50E, namely Type 1 and Type 12, confirming suitability for indoor use and protected outdoor areas. The packaging unit contains 2 pieces, with a gross weight per packaging unit of 1.25 kg. The PCF values (Cradle-to-Gate) are 6.6 kg CO2 eq (Category B), calculated approximately based on product weight and self-declared.

General
Materialsteel sheet
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Height200 mm
Suitable forEnclosure type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, Depth: = 300 mm
Type rating according to UL 50EType 1, Type 12
Weight/PU1,25 kg
PCF/VE (Cradle-to-Gate)6.6 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8660040, EAN: 4028177978270
