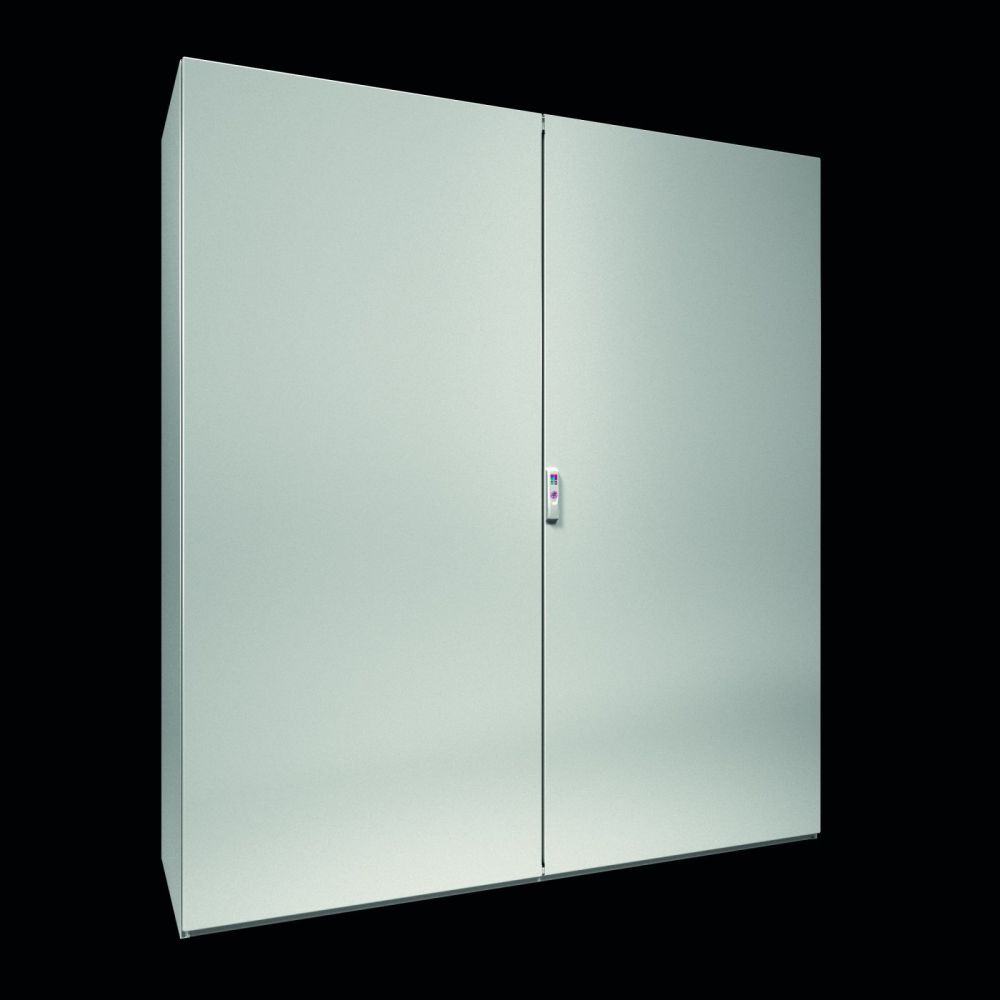

Rittal 5822600 VX SE system single enclosure W x H x D 800x1800x300 mm single-door
|
617,55 EUR |
|
|
( 734,88 EUR incl. VAT ) ≈ £516.89 | ≈ $678.69 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055456 |
| Mfg Part No: | 5822600 |
| UPC/EAN: | 4028177959262 |
| Weight: | 117.6 kg |
| Type: | SE 5822600 |
Product information for Rittal 5822600:
Applications
The enclosure is suitable for use in production environments where high mechanical stability and protection against dust and splashing water are required. It is particularly suitable for installations operated indoors or under protective roofs, as it meets protection class IP 55 according to EN 60 529. The NEMA classification includes NEMA 3R and NEMA 12, making it suitable for dry and damp indoor environments as well as areas with splashing water. The type rating according to UL 50E includes Type 1, 2, 3, 3R, and 12, enabling use in various industrial environments.
Functions and Equipment in Detail
The door is fitted with a horizontally double-foamed sealing gasket and features a removable square tube frame with perforation in the DIN grid pattern of 25 mm. The locking mechanism uses a 3 mm double latch, four-point locking, and is designed according to DIN 43668. The door opens 130° according to VDI, with an optional upgrade to 180°. The hinges are fitted with non-removable hinge pins, and automatic equipotential bonding is provided to the enclosure body. The rear panel is screwed and also fitted with a foamed sealing gasket, ensuring a tight seal. The base plates are three-part, removable, and replaceable, mounted and also feature automatic equipotential bonding to the enclosure body.
Technology Explained Simply
The enclosure consists of a body made of sheet steel with a wall thickness of 1.5 mm for the enclosure, rear panel, and base plates. The door has a thickness of 2.0 mm, and the mounting plate is made of 3.0 mm sheet steel. The surface of the enclosure, door, and rear panel parts is dip-primed and externally powder-coated with a textured finish in RAL 7035. The mounting plate and base plates are galvanized. The triple surface treatment provides corrosion protection and resistance against mineral oils, lubricants, machining emulsions, and solvents. The mounting plate is C-flanged on the sides and depth-adjustable via integrated plastic gliding pieces and mounting rails in 25 mm increments. An integrated mounting grid facilitates component positioning.
Compatibility and Accessories
The enclosure is system-compatible with accessories from the VX25 system and can be equipped with various extensions. These include, for example, VX plinth corner pieces, levelling feet, TS lock inserts, C-profile rails, TS support rollers, transport eyes, door latches for escape routes, and comfort handles. These elements allow individual adaptation to specific mounting and operating environments.
Mounting and Installation
Mounting is performed using the integrated mounting rails and the depth-adjustable mounting plate. The base plates are pre-mounted and can be replaced if necessary. The rear panel is removable, enabling flexible internal mounting. The door is standard right-hinged but can be changed to left-hinged. Mounting requires no additional side panels, as the enclosure is already fully enclosed.
Operational Advantages
The enclosure provides high mechanical stability due to its integral construction and the use of sheet steel with varying wall thicknesses. Protection class IP 55 and NEMA classification ensure reliable protection against dust and splashing water. The IK10 rating guarantees high protection against mechanical impacts. The integrated mounting levels and depth-adjustable mounting plate enable flexible and space-saving installation of components. Automatic equipotential bonding at the door, base plates, and rear panel enhances electrical safety. The surface treatment ensures high resistance against industrial chemicals and environmental influences.
| General | |
| Material | Housing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Housing, door and rear panel: dip primed, externally powder coated, textured lacquer; mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | enclosure top and sides closed, door(s), for single-door cabinets door hinge on right, reversible to left, mounting plate, base plates, rear panel, removable, locking: 3 mm double latch, 2 mounting rails 18 x 39 mm, rear panel, single-piece |
| Width | 800 mm |
| Height | 1.800 mm |
| Depth | 300 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 321.54 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
