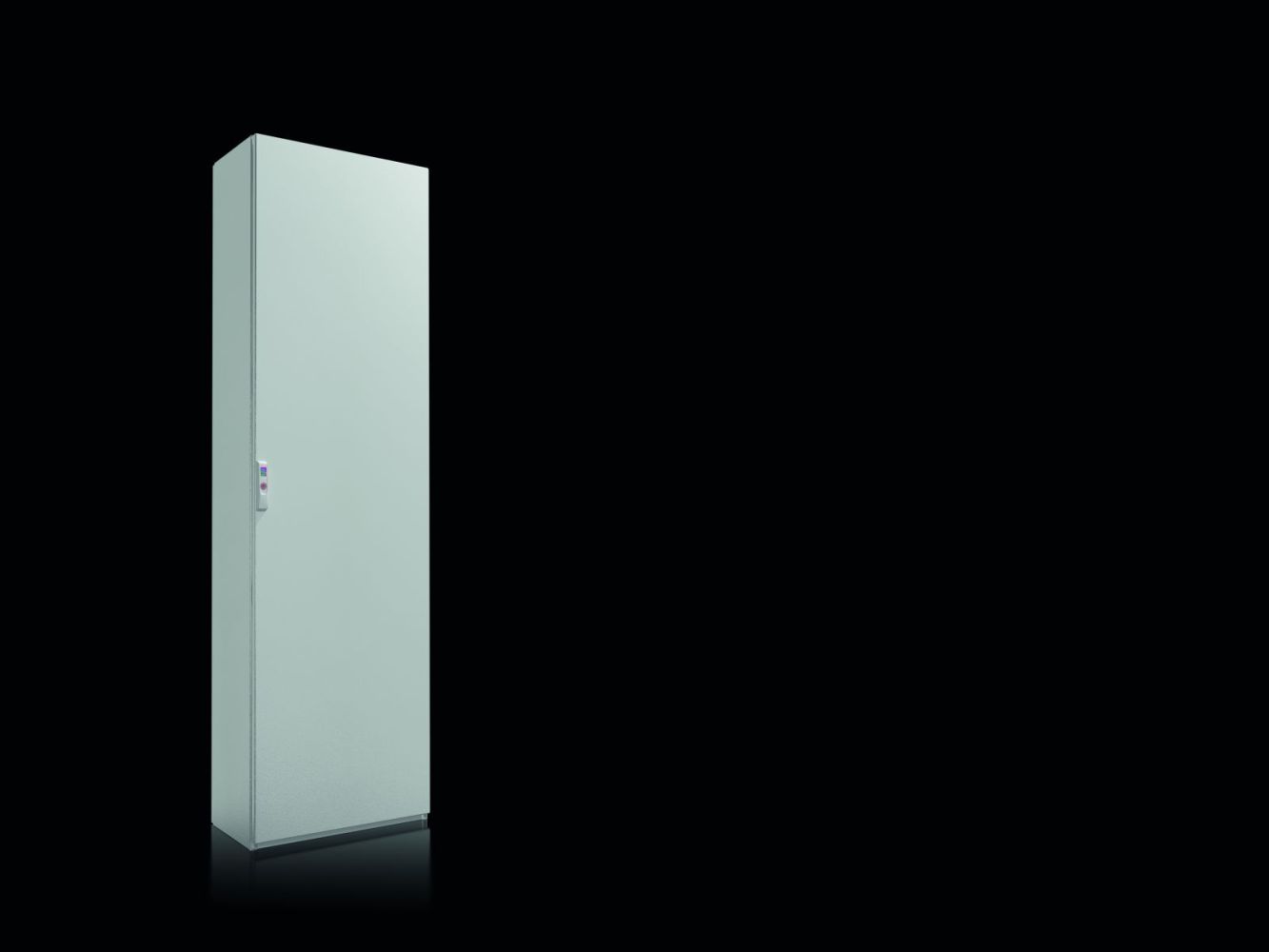

Rittal 5821600 VX SE system single enclosure 600x2000x300 mm steel
|
575,92 EUR |
|
|
( 685,34 EUR incl. VAT ) ≈ £482.05 | ≈ $632.94 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055455 |
| Mfg Part No: | 5821600 |
| UPC/EAN: | 4028177959255 |
| Weight: | 104.2 kg |
| Type: | SE 5821600 |
Product information for Rittal 5821600:
Applications include industrial control systems, automation technology, and enclosures in production environments where high mechanical stability and protection are required. The enclosure is suitable for indoor use as well as outdoor areas protected from direct rain and splashing water. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from any direction. Additionally, the enclosure meets protection ratings NEMA 3R and NEMA 12, as well as type ratings Type 1, Type 2, Type 3, Type 3R, Type 12 according to UL 50E. The IK code IK10 guarantees high mechanical protection against impact and shock. The surface of the enclosure, door, and rear panel is dip-primed and externally powder-coated with textured lacquer in the color RAL 7035. The mounting plate and base plates are galvanized to prevent corrosion. The rear panel is removable and made of 1.5 mm sheet steel, enabling flexible internal mounting. The base plates are three-part, removable, and replaceable, also featuring automatic equipotential bonding.
Functions and equipment in detail include two integrated mounting levels in the enclosure profile, perforated in 25 mm DIN increments. This enables space-saving and flexible mounting of components. The mounting plate is depth-adjustable via integrated plastic glides and mounting rails, simplifying component positioning. The rear panel is fitted with a foamed seal and fastened with screws, ensuring a tight seal. The base plates are welded in and made of 1.5 mm sheet steel, providing a stable foundation for the enclosure.
Technology explained simply shows that the triple surface treatment — nanoceramic coating, electrophoretic dip priming, and powder-coated textured lacquer — provides high corrosion resistance as well as resistance to mineral oils, lubricants, machining emulsions, and solvents. The material thickness of the enclosure (1.5 mm), door (2.0 mm), and mounting plate (3.0 mm) ensures high mechanical strength. The IP 55 protection rating protects against dust and splashing water, making the enclosure suitable for humid or dusty environments. The NEMA and UL approvals extend usability in international markets.
Compatibility and accessories include a wide range of compatible products that extend functionality. These include levelling feet M12 with an adjustment height of 18–43 mm, viewing doors for TS/SE systems, lock inserts made of zinc die-cast, comfort handles in RAL 7035, support rollers, system chassis for internal and external mounting levels, transport eyes, door latches for escape routes, plinth trim panels in various heights, and C-profile rails. These accessories allow individual adaptation to specific requirements such as transport, mounting, or safety.
Mounting and installation are facilitated by the integrated mounting levels and the depth-adjustable mounting plate. The base plates are pre-installed, accelerating installation. The door is fitted with non-removable hinge pins, ensuring secure mounting. The rear panel is removable, enabling flexible internal mounting. The enclosure construction is system-compatible with accessories from the VX25 system, allowing expansion and adaptation to existing systems.
Operational advantages lie in efficient assembly due to the integral construction, which does not require additional side panels. Large enclosure widths allow replacement of smaller baying combinations, saving space and assembly time. The high mechanical stability and protection ratings IP 55, NEMA 3R/12, and IK10 ensure reliable performance in demanding environments. The powder-coated surface in RAL 7035 offers high resistance to environmental influences and provides a professional appearance. The integrated mounting levels and depth-adjustable mounting plate simplify installation and maintenance of components. Compatibility with VX25 accessories expands application possibilities and enables flexible system expansion.
| General | |
| Material | Housing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Housing, door and rear panel: dip primed, externally powder coated, textured lacquer; mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | enclosure top and sides closed, door(s), for single-door cabinets door hinge on right, reversible to left, mounting plate, base plates, rear panel, removable, locking: 3 mm double latch, 2 mounting rails 18 x 39 mm, rear panel, single-piece |
| Width | 600 mm |
| Height | 2.000 mm |
| Depth | 300 mm |
| Mounting plate dimensions (W x H) | 499 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 189.6 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
