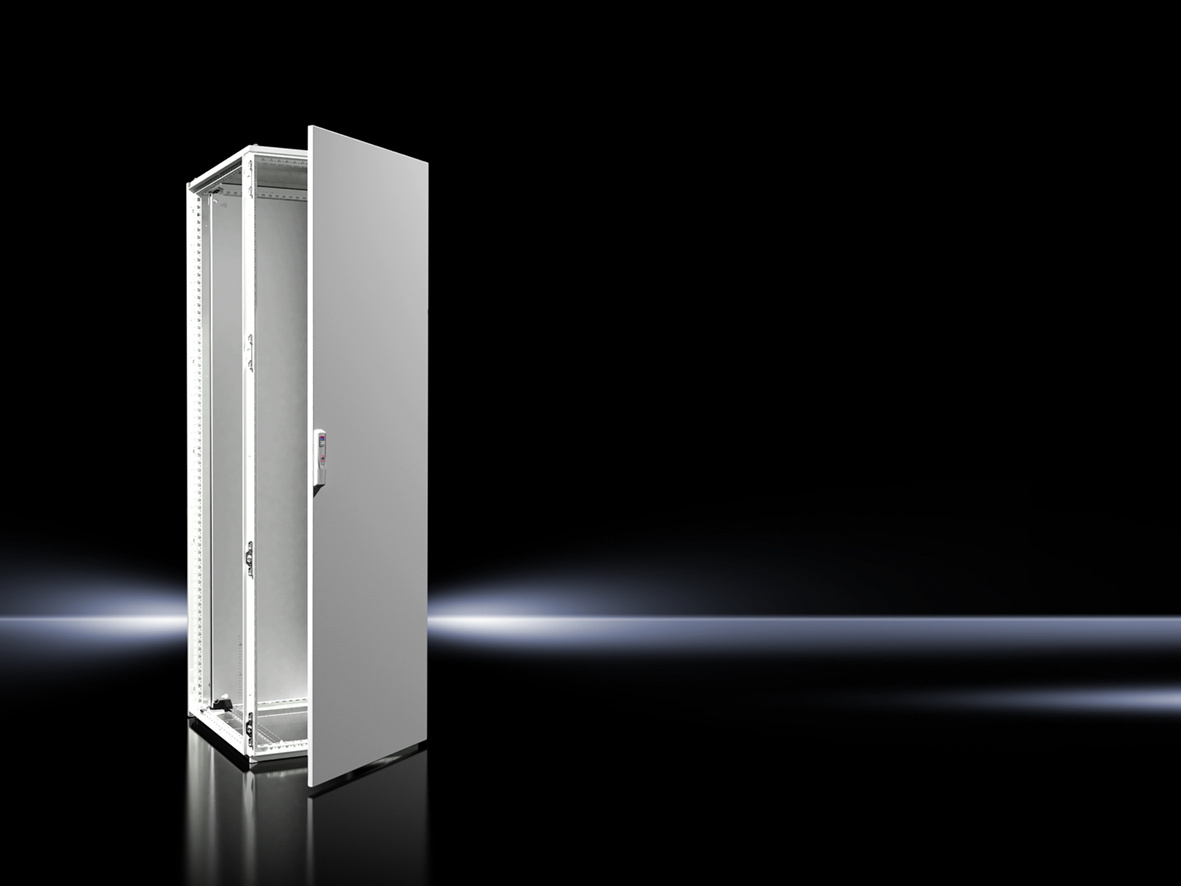

Rittal 8686000 VX bayed enclosure system, 1-door, W x H x D: 600x1800x600 mm
|
594,17 EUR |
|
|
( 707,06 EUR incl. VAT ) ≈ £497.32 | ≈ $652.99 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441677 |
| Mfg Part No: | 8686000 |
| UPC/EAN: | 4028177813816 |
| Weight: | 92.3 kg |
| Type: | VX 8686.000 |
Product information for Rittal 8686000:
Applications
This enclosure system is suitable for use in indoor environments as well as in areas with increased contamination risk. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for industrial installations with moderate load. The NEMA classification includes NEMA 1 and NEMA 12, confirming suitability for dry indoor environments as well as areas with light dirt or splashing water. The type rating according to UL 50E includes Type 1 and Type 12, confirming compliance with North American safety standards for enclosures. The IK10 rating provides high mechanical protection against impact and shock, for example from tools or moving parts in production environments.
Functions and Equipment in Detail
The enclosure system consists of a frame made of sheet steel with a wall thickness of 1.5 mm, coated with a dip-primed surface. The door, also made of sheet steel (2.0 mm), is powder-coated and finished with a textured lacquer, ensuring high corrosion resistance and optical quality. The door is standard right-hinged but can be toollessly reconfigured to left-hinged. The door features a 3 mm double-bar lock according to DIN 43668, enabling a four-point locking mechanism. The door opening angle is 130° and can be toollessly extended to 180°. The clearance from the floor is 17 mm, allowing secure mounting on uneven surfaces.
Technology Explained Simply
The mounting plate, made of sheet steel (3.0 mm), is C-bent on the sides and adjustable in depth in 25 mm increments via integrated plastic glides and reusable mounting rails. This allows flexible positioning of components within the enclosure. The mounting plate features a mounting grid to simplify component positioning. The base plates are divided into three parts, removable and replaceable, enabling easy cleaning and maintenance. The rear panel and roof plate are also made of sheet steel (1.5 mm) and fitted with PU foam seals to ensure a tight seal. The rear panel includes a positioning aid for precise mounting. The roof is secured using M12 screws.
Compatibility and Accessories
The enclosure system is compatible with various accessories that can be adapted to individual requirements for mounting and protection. These include levelling feet M12 with an adjustment height of 18–43 mm, transport eyes for freight shipping, dust protection strips, cable routing spaces, mounting brackets, C-profile rails, cable entry ferrules in various diameters (e.g. 13 mm, 21 mm), and multi-locking mechanisms for padlocks. Additionally, partial mounting plates in various sizes (e.g. 500x775 mm, 500x700 mm) are available to flexibly adapt the mounting area.
Mounting and Installation
Mounting is done via integrated blind rivet nuts M6 on the profile frame, enabling protection-rated fastening of fittings. The entire construction features a square hole pattern in 25 mm increments, allowing the use of cage nuts and metric screws up to M8. The base frames are welded and feature an integrated base reinforcement for securing to the floor. The enclosure can withstand a load of up to 15,000 N.
Advantages in Operation
The enclosure system offers high mechanical stability and reliable protection against dust, splashing water, and mechanical impacts. The powder-coated surface ensures long service life and high corrosion resistance. The modular construction with depth-adjustable mounting plate and replaceable base plates enables flexible and maintenance-friendly use. The integrated sealing on door, roof, and rear panel ensures a tight seal, protecting the electrical components mounted inside. The automatic equipotential bonding connection according to DIN 62 208 between rear panel, roof, base plates, and frame ensures safe earthing. A QR code is printed on the roof, door, mounting plate, rear panel, and type plate, enabling unique identification.
The enclosure system is available in the colour RAL 7035, offering a neutral, industrially recognised appearance. The surface treatment of the mounting plate and base plates is galvanised, providing additional corrosion protection. The PCF values (Cradle-to-Gate) amount to 265.29 kg CO2 eq per packaging unit, with class B indicating that the value is approximately calculated based on product weight and self-declared.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 600 mm |
| Height | 1.800 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 499 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 265.29 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
