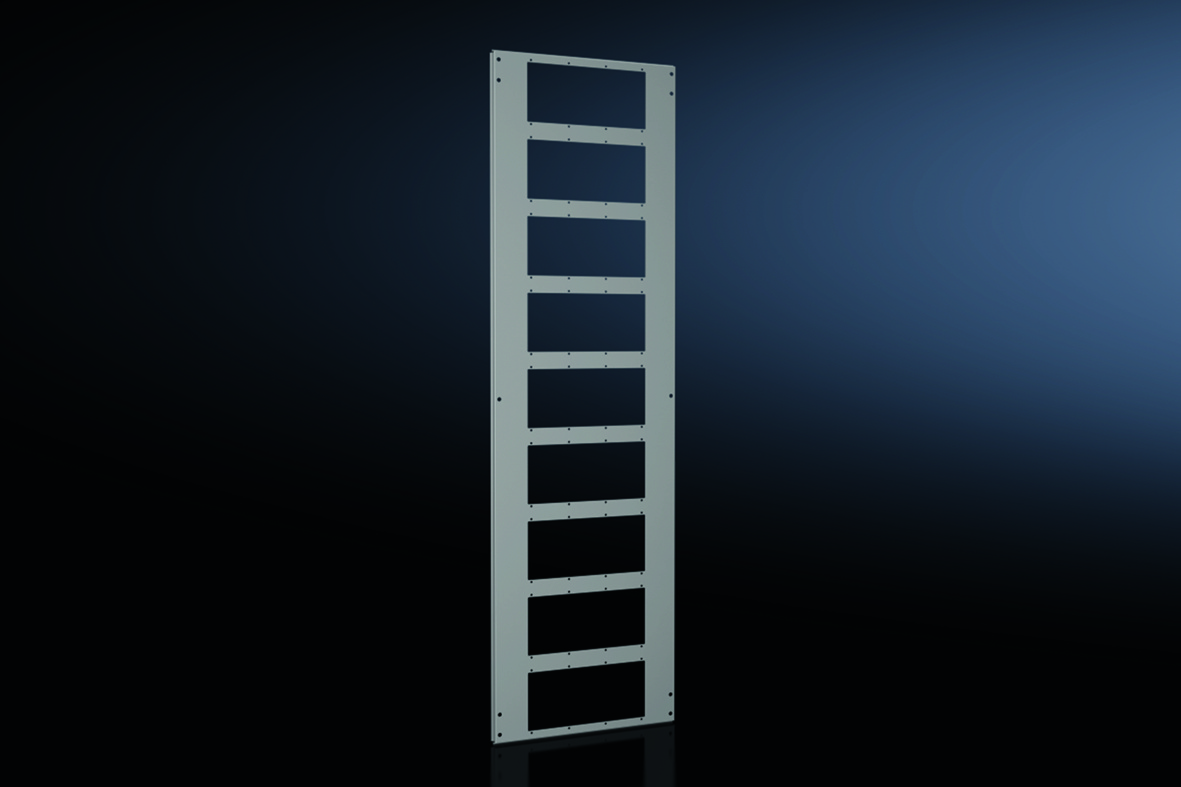

Rittal 8609211 VX partition panel for module plates, height: 1800 mm, width: 600 mm

Your rating:
Average rating
product review for Rittal 8609211 VX partition panel for module plates, height: 1800 mm, width: 600 mm
( 4.5 / 5 ) 27 ratings
Rittal 8609211
This image may differ from the desired article.
Rittal 8609211Rittal 8609211Rittal 8609211
95,91 EUR
( 114,13 EUR incl. VAT )
≈ £80.28  |  ≈ $105.41
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 5 pieces
1x Rittal 8609211 VX partition panel for module plates, height: 1800 mm, width: 600 mm
Datasheet:file_download Download
Lieske Part No.:1440936
Mfg Part No: 8609211
UPC/EAN: 4028177817838
Weight:9.5 kg
Type:VX 8609.211

Product information for Rittal 8609211:

The Rittal VX 8609.211 is a partition panel for module plates, specifically designed for enclosures of type VX with a height of 1,800 mm and a depth of 600 mm. It serves to structurally divide the internal space within the enclosure and enables the orderly mounting of module plates, particularly for connectors, as well as the routing of cables, busbar systems, and other installations. The partition panel is made of steel sheet with a thickness of 2.0 mm and features a galvanized surface providing corrosion protection. The surrounding double hemming ensures additional stability and allows for the installation of a seal, supporting the air-tightness and protective function of the enclosure.

Applications

The partition panel is intended for use in industrial enclosures, particularly in systems requiring clear separation of electrical components or targeted cable routing. It is suitable for applications in automation technology, power supply, and process control, where structured and secure mounting of components within the enclosure is necessary. Due to the symmetrical design of the enclosure frame, the partition panel can also be mounted on the rear side of the enclosure, provided the dimensions allow it.

Functions and Equipment in Detail

The partition panel features a total of 9 cutouts intended for mounting module plates, cable entry plates, or busbar systems. These cutouts enable flexible and adaptable use according to the specific requirements of the installation. The integrated double hemming ensures high mechanical stability and supports the installation of seals, enhancing the enclosure’s protective function against dust and moisture. The mounting hardware is included in the delivery scope, simplifying installation.

Technology Explained Simply

The use of steel sheet with a thickness of 2.0 mm ensures sufficient strength to withstand mechanical loads within the enclosure. The galvanized surface protects the material from corrosion, especially in environments with high humidity or aggressive media. The double hemming along the edge of the partition panel increases stability and allows for the installation of a seal, improving the enclosure’s protection against environmental influences. The 9 cutouts are strategically positioned to enable flexible use for various mounting tasks.

Compatibility and Accessories

The partition panel is specifically designed for enclosures of type VX with a height of 1,800 mm and a depth of 600 mm. For baying multiple enclosures in combination with a partition panel, either the internal baying bracket 8617500 or the external baying connector 8617502 is required. These accessories enable a secure and stable connection between enclosures.

Mounting and Installation

Mounting is carried out using the included mounting hardware. The partition panel can be installed on either the front or rear side of the enclosure, depending on requirements, enabled by the frame’s symmetry. The cutouts are dimensioned to accommodate standard module plates and cable entry plates. When baying multiple enclosures, the use of the specified baying accessories is necessary to ensure a stable connection.

Operational Advantages

The partition panel provides clear structuring of the enclosure’s internal space, simplifying maintenance and inspection of installed components. The integrated cutouts enable flexible and efficient mounting of module plates and cables, reducing installation time. The double hemming and galvanized surface enhance the enclosure’s durability and protection against environmental influences. Compatibility with standard accessories such as baying brackets or connectors ensures easy integration into existing systems.

General
MaterialSheet steel, 2.0 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Suitable forCabinet type: VX, height: = 1.800 mm, depth: = 600 mm
Number of breaks9
Mounting noteFor mounting in combination with a partition, the mounting bracket inside 8617500 or the mounting connector outside 8617502 is required


Product data sheet
Datasheet for Rittal 8609211, EAN: 4028177817838

Questions & answers

What is the delivery time of Rittal 8609211 VX partition panel for module plates, height: 1800 mm, width: 600 mm?

The article Rittal 8609211 VX partition panel for module plates, height: 1800 mm, width: 600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8609211 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8609211 VX partition panel for module plates, height: 1800 mm, width: 600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8609211 VX partition panel for module plates, height: 1800 mm, width: 600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
