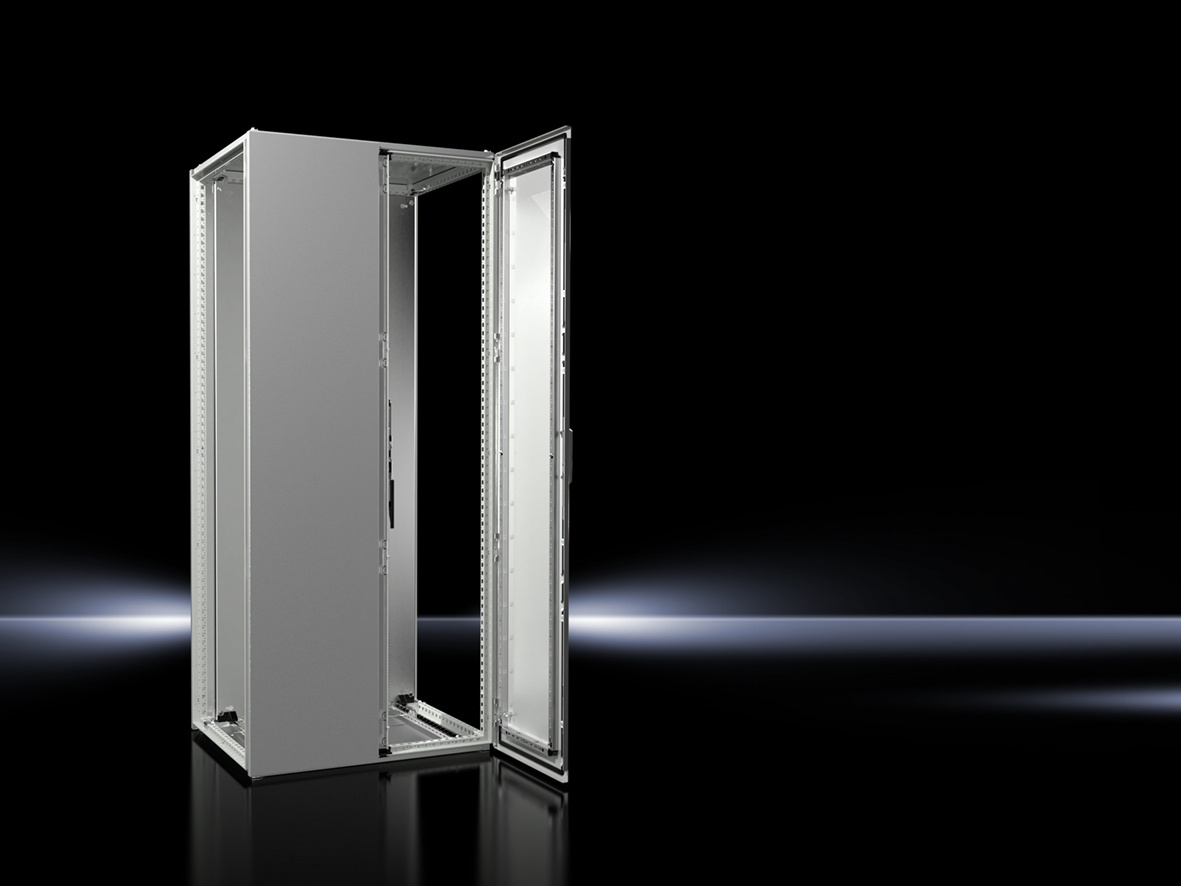

Rittal 8881000 VX bayed enclosure system, 2-door, W x H x D: 800x1800x600 mm
|
718,75 EUR |
|
|
( 855,31 EUR incl. VAT ) ≈ £601.59 | ≈ $789.91 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441171 |
| Mfg Part No: | 8881000 |
| UPC/EAN: | 4028177813915 |
| Weight: | 120.6 kg |
| Type: | VX 8881.000 |
Product information for Rittal 8881000:
Applications
This enclosure system is suitable for use in production plants, automation technology, power supply systems and other industrial applications. It is bayable on all sides, allowing for flexible arrangement in rows or modules. The load capacity is up to 15,000 N, ensuring suitability for heavy industrial environments. The protection rating IP 55 according to EN 60 529 provides protection against dust and splashing water, making it suitable for indoor use as well as in slightly damp or dusty environments. Additionally, the unit meets protection ratings NEMA 1 and NEMA 12, as well as Type ratings Type 1 and Type 12 according to UL 50E. The IK code IK10 indicates high mechanical resistance against impacts and vibrations.
Functions and Equipment in Detail
The enclosure system includes in the delivery scope the enclosure frame, two doors, a roof plate, a rear panel, split base plates, a mounting plate, and two mounting rails with dimensions 18 x 39 mm. The mounting plate is laterally C-flanged and depth-adjustable in 25 mm increments, enabling flexible positioning of components. The mounting plate features an integrated mounting grid, simplifying component positioning. The base plates are triple-split, removable and replaceable, enabling easy maintenance and cleaning. The rear panel and roof plate are removable and fitted with PU foam seals to ensure the protection rating. The rear panel includes a positioning aid to facilitate installation.
Technology Explained Simply
The construction of the enclosure system is based on a closed, profiled hollow section with a hole pattern in a 25 mm grid. The horizontal profiles feature an additional groove above the seal, ensuring better sealing. The entire construction is equipped with integrated blind rivet nuts M6, enabling protection-rated fastening of fittings. The profile edges are rounded to minimize injury risks. The mounting plate is depth-adjustable via integrated plastic glides and reusable mounting rails, allowing flexible adaptation to different components. Electrical conductivity between frame, rear panel, roof and base plates ensures automatic equipotential bonding according to DIN 62 208, which is important for operational safety.
Compatibility and Accessories
Various accessories are available for the enclosure system, extending its use in different application scenarios. These include mounting brackets, levelling feet with an adjustment height of 18–43 mm, mounting plate spacers, C-profile rails, transport eyes, dust protection strips, monitor mounts with VESA connection, comfort handles, cable entry ferrules in various diameters, multi-locking systems, circuit diagram pockets, multitools, and system chassis in various dimensions. These accessories enable individual adaptation of the enclosure to specific requirements, such as monitor mounting, additional locking mechanisms, or integration of cable management systems.
Installation and Mounting
Installation of the enclosure system is performed via the integrated base frame, which allows fastening to the floor. The base plates are removable, facilitating easy installation and maintenance. The mounting plate is depth-adjustable, enabling flexible positioning of components. The doors are fitted with non-removable hinge pins, ensuring secure mounting. The locking is achieved via a 3 mm double-barrel lock, providing secure latching. The doors can be toollessly extended to 180°, improving access to the interior.
Operational Advantages
The enclosure system offers high mechanical and electrical safety due to the integrated equipotential bonding function and high protection rating. The depth-adjustable mounting plate and flexible component arrangement enable efficient and space-saving installation. The bayable construction allows modular expansion, increasing the scalability of the installation. The use of sheet metal in various wall thicknesses (1.5 mm to 3.0 mm) ensures high stability and durability. The surface treatment with dip priming and powder coating in textured paint (RAL 7035) provides high corrosion resistance and visual quality. The integrated hole pattern in 25 mm increments enables flexible mounting of components and parts.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 800 mm |
| Height | 1.800 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 334.97 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
