Rittal 8617510 VX partial mounting plate, W x H: 500x300 mm

Your rating:
Average rating
product review for Rittal 8617510 VX partial mounting plate, W x H: 500x300 mm
( 4.9 / 5 ) 7 ratings

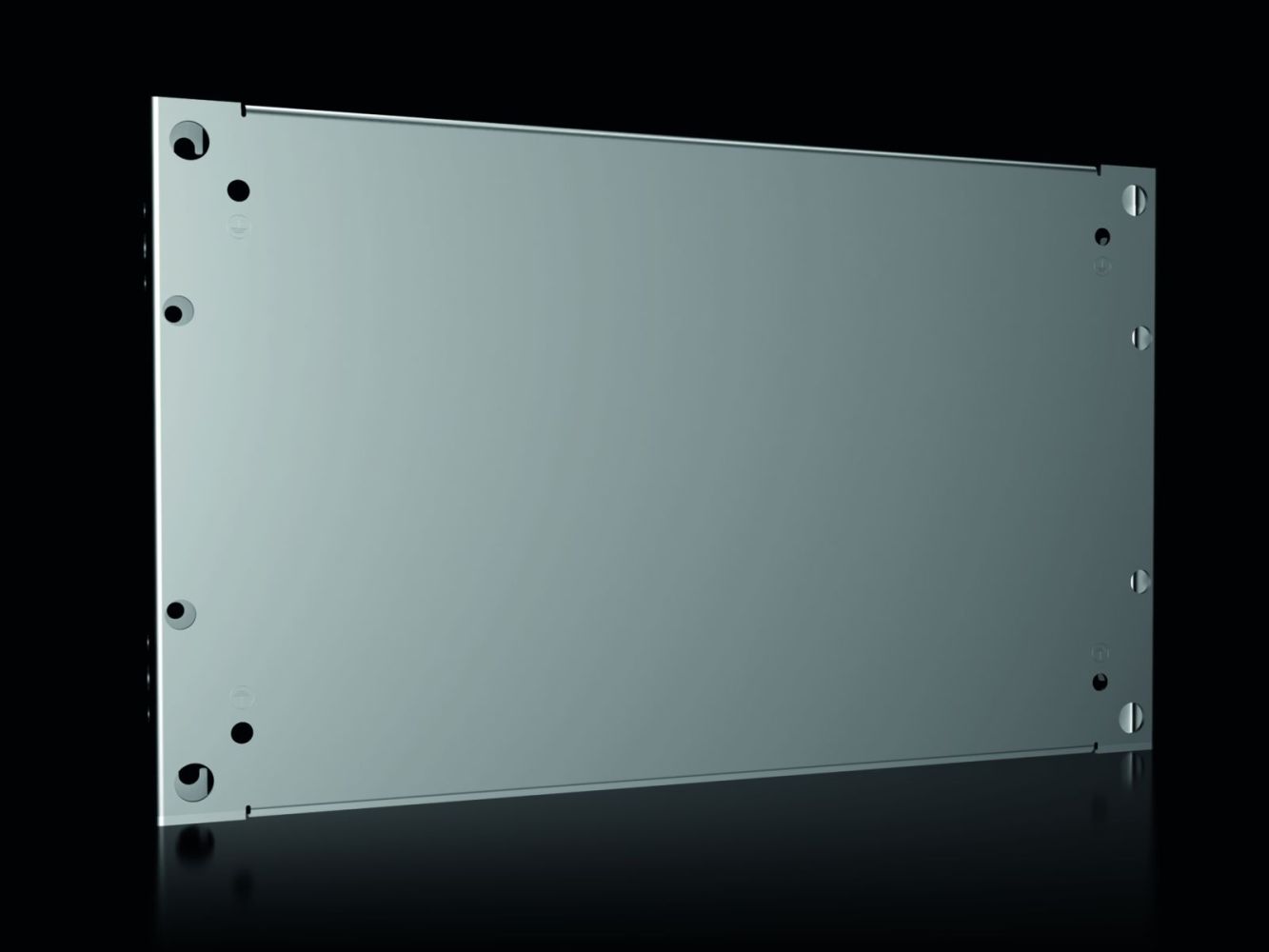

Rittal 8617510
This image may differ from the desired article.
Rittal 8617510Rittal 8617510
39,91 EUR
( 47,49 EUR incl. VAT )
≈ £33.40  |  ≈ $43.86
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8617510 VX partial mounting plate, W x H: 500x300 mm
Datasheet:file_download Download
Lieske Part No.:1440882
Mfg Part No: 8617510
UPC/EAN: 4028177919365
Weight:4.42 kg
Type:VX 8617.510

Product information for Rittal 8617510:

Rittal VX 8617.510 is a partial mounting plate made of sheet steel with a thickness of 2.5 mm, designed for use in enclosures of type VX, VX SE and PC. The plate serves to mount additional components within the enclosure and provides a flexible mounting surface for various applications. With dimensions of 500 mm width and 300 mm depth, it is particularly suitable for enclosures with a door width of 600 mm. The surface is zinc-coated, ensuring a corrosion-resistant and durable coating.

Applications
The partial mounting plate is used in industrial electrical and IT installations where additional mounting surfaces are required for assemblies, controls, network components or other electronic modules. It enables a structured and clear arrangement of devices within the enclosure, thereby facilitating maintenance and servicing. The plate is suitable for enclosures with a width of 400 mm or 600 mm and a depth of 400 mm or 600 mm.

Functions and Equipment in Detail
The mounting plate can be installed either vertically as a standing surface or horizontally as a flat base. The fastening is done directly to the enclosure profile. In a pulled-out construction, the plate can be mounted at any mounting level within the enclosure using system chassis. For multi-level installations, where multiple plates are arranged in sequence, a hinge mounting can be used to quickly access the rear levels. The delivery includes the fastening material.

Technology Explained Simply
The use of sheet steel with a thickness of 2.5 mm ensures high mechanical stability and load capacity for the mounted components. The zinc-coated surface protects the material from corrosion, especially in environments with high humidity or aggressive atmosphere. The dimensions of 500 mm width and 300 mm depth provide sufficient space for standard and compact modules. The flexible mounting allows individual adaptation to the respective enclosure configuration.

Compatibility and Accessories
The partial mounting plate is intended for enclosure types VX, VX SE and PC. For installation in VX SE, PC and IW, the VX adapter rail is required. The plate is not intended for other enclosure types not listed in the compatibility list. The use of the adapter rail enables secure and standardized mounting in these enclosure types.

Mounting and Installation
Mounting is done either directly to the enclosure profile or via system chassis in a pulled-out construction. Fastening is done using the material included in the delivery. In multi-level arrangements, the plate can be mounted pivotably via hinges to facilitate access to rear levels.

Advantages in Operation
The partial mounting plate provides a flexible and stable mounting surface that improves structuring within the enclosure. The option to mount the plate pivotably facilitates maintenance and inspection of components located behind it. The zinc-coated surface ensures long service life and low maintenance. Compatibility with various enclosure types increases application flexibility in industrial environments.

General
MaterialSheet steel, 2.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Suitable for door width600 mm
Mounting optionsInstallation can be either vertical as upright mounting surface or horizontal as flat floor; mounting is directly to cabinet profile; with pre-assembled construction, mounting is via system chassis at any mounting level within the cabinet; with multi-level installation of partial mounting plates in sequence, these can be hinged for quick access to rear levels
NoteFor installation in VX SE, PC, IW, the VX adapter rail is required
Width500 mm
Depth300 mm
Suitable for housing typeVX, VX SE, PC
Suitable forEnclosure type: VX, VX SE, PC, Width: = 400 mm, = 600 mm, Depth: = 400 mm, = 600 mm
PCF/VE (Cradle-to-Gate)16.8 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8617510, EAN: 4028177919365

Questions & answers

What is the delivery time of Rittal 8617510 VX partial mounting plate, W x H: 500x300 mm?

The article Rittal 8617510 VX partial mounting plate, W x H: 500x300 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617510 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617510 VX partial mounting plate, W x H: 500x300 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617510 VX partial mounting plate, W x H: 500x300 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
