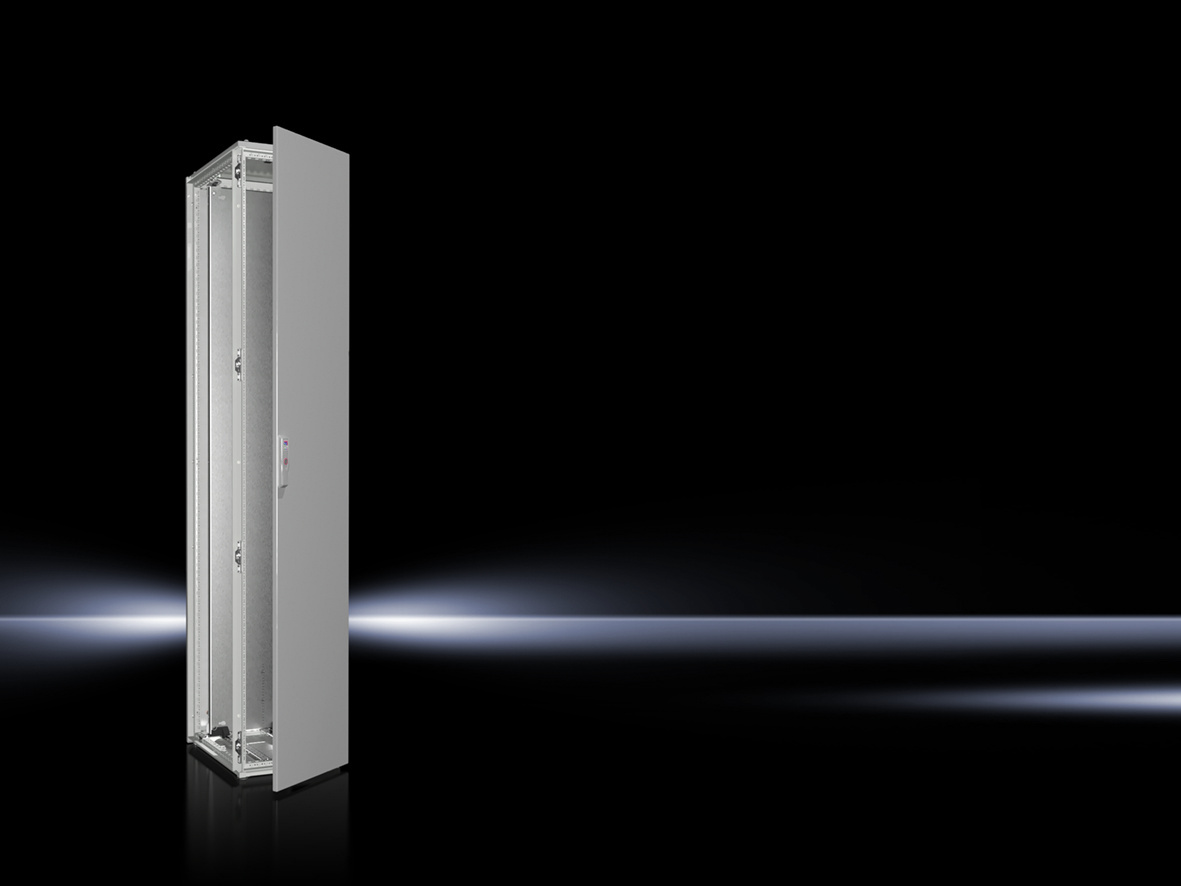

Rittal 8405000 VX bayed enclosure system, 1-door, W x H x D: 400x2000x500 mm
|
583,05 EUR |
|
|
( 693,83 EUR incl. VAT ) ≈ £488.01 | ≈ $640.77 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440718 |
| Mfg Part No: | 8405000 |
| UPC/EAN: | 4028177919280 |
| Weight: | 73 kg |
| Type: | VX 8405.000 |
Product information for Rittal 8405000:
Applications
This enclosure system is designed for use in industrial environments where high mechanical load capacity and protection against dust and splashing water are required. It is suitable for installations in the manufacturing industry, energy supply, transportation technology and other areas where electrical and electronic components must be protected. The protection class IP 55 according to EN 60 529 ensures protection against dust and splashing water from any direction, enabling use in indoor and outdoor environments. The protection classes NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), comply with international standards for switchgear in dry and damp environments. The IK code IK10 indicates high mechanical strength against impact loads.
Functions and Equipment in Detail
The enclosure system includes the enclosure frame, a front door, a roof plate, a rear panel, divided base plates, a mounting plate, and two mounting rails (18 x 39 mm). The door is fitted with a foamed PU foam seal and features a bar lock with quadruple locking. The lock is equipped with a 3 mm double-bar insert according to DIN 43668. Door hinges are standard on the right side but can be toollessly repositioned to the left. The door opens 130° and can optionally be extended to 180° without tools. The clearance from the floor is 17 mm. The rear panel and roof plate are removable and fitted with PU foam seals, ensuring secure sealing. The rear panel features a positioning aid, and the roof is fitted with M12 mounting screws.
Technology Explained Simply
The enclosure system is made of sheet steel in various wall thicknesses: the enclosure frame, roof, rear panel and base plates are made of 1.5 mm sheet steel, the door of 2.0 mm sheet steel, and the mounting plate of 3.0 mm sheet steel. Surface treatment involves dip priming of the enclosure frame, while the door, roof and rear panel are additionally powder-coated externally using a textured lacquer. The mounting plate and base plates are galvanized. The color is RAL 7035. The construction is designed so that all surface conductors (rear panel, roof, base plates) are electrically connected to the frame, enabling automatic equipotential bonding according to DIN 62 208. This is important for electrical safety and grounding of the installation. The frame profiles are rounded, and horizontal profiles feature an additional groove above the seal to ensure better sealing.
Compatibility and Accessories
The enclosure system is bayable on all sides and can be combined with additional VX modules. Compatible accessories include levelling feet M12 (adjustable height 18–43 mm), TS mounting brackets for external mounting level (W x D 500 mm), VX partial mounting plates in various sizes (e.g. 500x600 mm, 900x300 mm), transport eyes, mounting plate spacers, VX comfort handles (for half cylinder or lock insert), SZ cable entry ferrules (diameter 13 mm, 21 mm, max. 47 mm), multi-locking systems for 6 padlocks, circuit diagram pockets, SZ plug-through ferrules, AS Multitool AX/VX, VX side panels (screwable), VX baying connectors (external, 1200 mm) and baying brackets (internal, 6 pieces). These components allow individual adaptation of the enclosure to specific requirements.
Installation and Mounting
Mounting is done via integrated mounting levels, accessible from inside and outside. The mounting plate is depth-adjustable, enabling flexible positioning of components. The base plates are removable and replaceable, allowing easy maintenance and cleaning. The enclosure’s load capacity is up to 15,000 N, ensuring high mechanical stability. Mounting is done via integrated blind rivet nuts M6 on the frame profile, enabling protection-class-compliant fastening of fittings.
Operational Advantages
The enclosure system offers high mechanical strength, reliable protection class IP 55, and easy installation via integrated mounting levels. The depth-adjustable mounting plate and modular construction allow flexible adaptation to different requirements. The conductive connection of all surface conductors ensures safe equipotential bonding. The tool-free hinge repositioning and door opening angle extension increase efficiency during installation and maintenance. The use of sheet steel in various wall thicknesses and special surface treatment ensures high corrosion resistance and longevity. Integrated QR codes on the roof, door, mounting plate, rear panel and nameplate enable unique identification and labeling of the enclosure system.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 400 mm |
| Height | 2.000 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 299 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 217.37 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
