Rittal 8609212 VX partition panel for module plates, height: 2000 mm, width: 500 mm

Your rating:
Average rating
product review for Rittal 8609212 VX partition panel for module plates, height: 2000 mm, width: 500 mm
( 4.6 / 5 ) 45 ratings

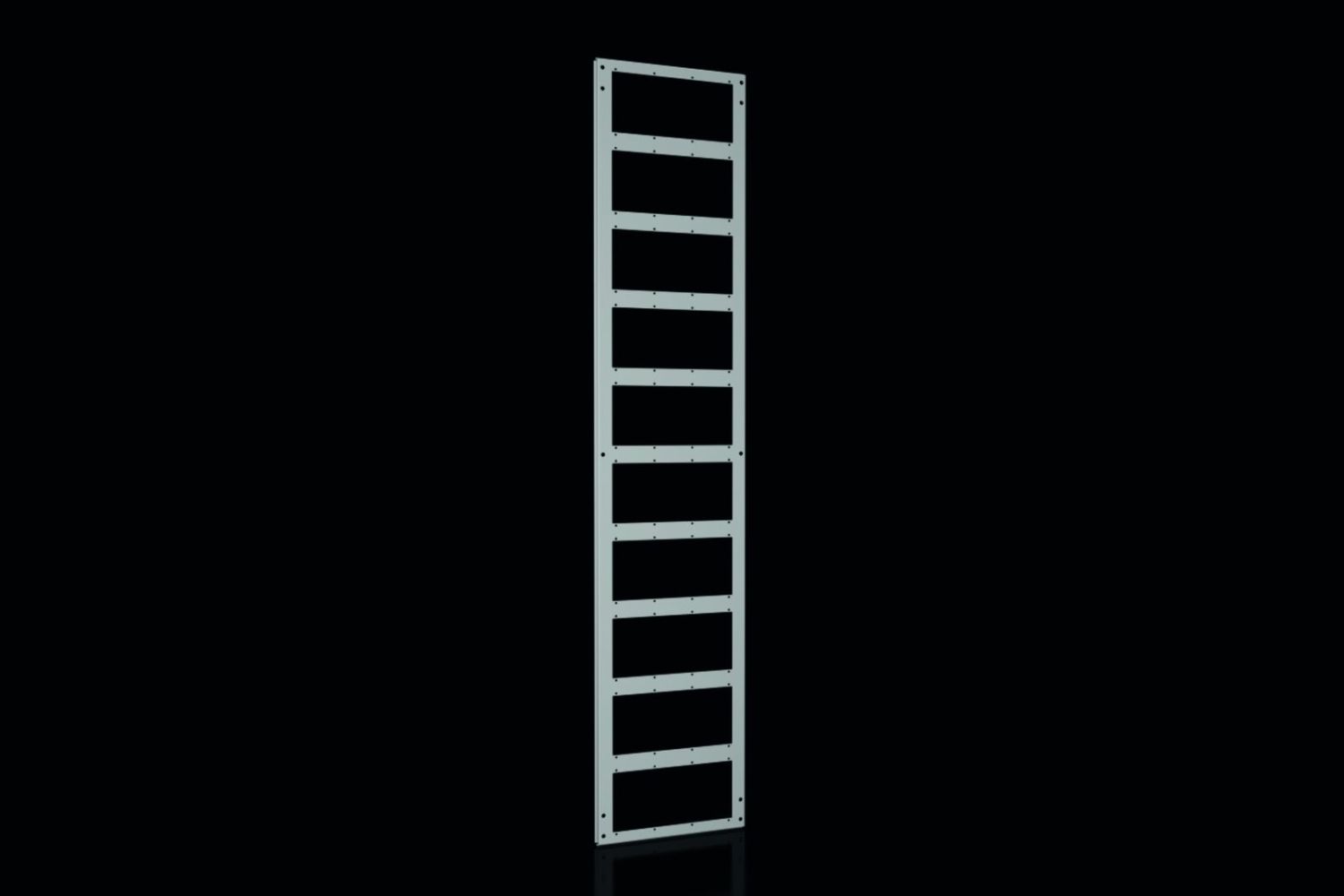

Rittal 8609212
This image may differ from the desired article.
Rittal 8609212Rittal 8609212Rittal 8609212
91,89 EUR
( 109,35 EUR incl. VAT )
≈ £76.91  |  ≈ $100.99
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 8609212 VX partition panel for module plates, height: 2000 mm, width: 500 mm
Datasheet:file_download Download
Lieske Part No.:1440935
Mfg Part No: 8609212
UPC/EAN: 4028177817845
Weight:7.604 kg
Type:VX 8609.212

Product information for Rittal 8609212:

The Rittal VX 8609.212 is a partition panel for module plates, specifically designed for enclosures of type VX with a height of 2,000 mm and a depth of 500 mm. It serves to structurally divide the interior space within the enclosure and enables the orderly mounting of module plates, particularly for connectors, as well as the routing of cables, busbar systems, and other installations. The partition panel is made of steel sheet with a thickness of 2.0 mm and features a galvanized surface, providing high corrosion resistance. The surrounding double hemming ensures additional stability and allows for the installation of a seal, improving the air-tightness and protective function within the enclosure.

Applications

The partition panel is used in industrial electrical installations where a clear spatial separation of components or wiring is required. It is particularly suitable for systems where module plates for connectors are mounted, as well as for cable and busbar routing. Due to the symmetrical design of the enclosure frame, the partition panel can also be mounted on the rear side of the enclosure, provided the dimensions allow it. This increases flexibility in the planning and installation of enclosures.

Functions and Equipment in Detail

The partition panel features a total of 10 cutouts, intended for mounting module plates or for routing cables and other installations. The cutouts are arranged to allow flexible use without compromising the structural integrity of the partition panel.

Technology Explained Simply

The use of steel sheet with a thickness of 2.0 mm ensures sufficient strength to withstand mechanical loads within the enclosure. The galvanized surface protects the material from corrosion, especially in environments with high humidity or aggressive atmospheres. The double hemming along the edge of the partition panel increases stability and also serves as a mounting element for a seal, supporting the air-tightness of the enclosure. The symmetrical construction of the enclosure frame allows the partition panel to be mounted on the rear side as well, which is advantageous for spatial planning.

Compatibility and Accessories

The partition panel is specifically designed for enclosures of type VX with a height of 2,000 mm and a depth of 500 mm. For baying multiple enclosures in combination with a partition panel, additional components are required: either the internal baying bracket (part number 8617500) or the external baying connector (part number 8617502). Compatible accessories also offered include the VX external baying connector with a length of 1,200 mm, as well as the VX cover hood with door in size 2,000x500 mm (part number 8609220). These components enable a consistent and secure arrangement of multiple enclosures in a row.

Mounting and Installation

The partition panel is mounted using the included fastening materials. It is inserted into the enclosure and secured at the designated mounting points. The cutouts can be used as needed for mounting module plates or for routing cables and other installations. When baying multiple enclosures, the use of the specified baying bracket or baying connector is required to ensure a stable connection.

Operational Advantages

The partition panel provides clear spatial structuring within the enclosure, simplifying maintenance and inspection of components. The integrated cutouts allow flexible use for various mounting tasks without requiring additional modifications to the enclosure. The galvanized surface ensures long service life, even in demanding environments. The ability to mount the partition panel on the rear side increases flexibility in planning and installing enclosures. The included fastening materials reduce preparation time and simplify the installation process.

General
MaterialSheet steel, 2.0 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Suitable forHousing type: VX, Height: = 2,000 mm, Depth: = 500 mm
Number of breaks10
Mounting noteFor mounting in combination with a partition, the mounting bracket inside 8617500 or the mounting connector outside 8617502 is required


Product data sheet
Datasheet for Rittal 8609212, EAN: 4028177817845

Questions & answers

What is the delivery time of Rittal 8609212 VX partition panel for module plates, height: 2000 mm, width: 500 mm?

The article Rittal 8609212 VX partition panel for module plates, height: 2000 mm, width: 500 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8609212 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8609212 VX partition panel for module plates, height: 2000 mm, width: 500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8609212 VX partition panel for module plates, height: 2000 mm, width: 500 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
