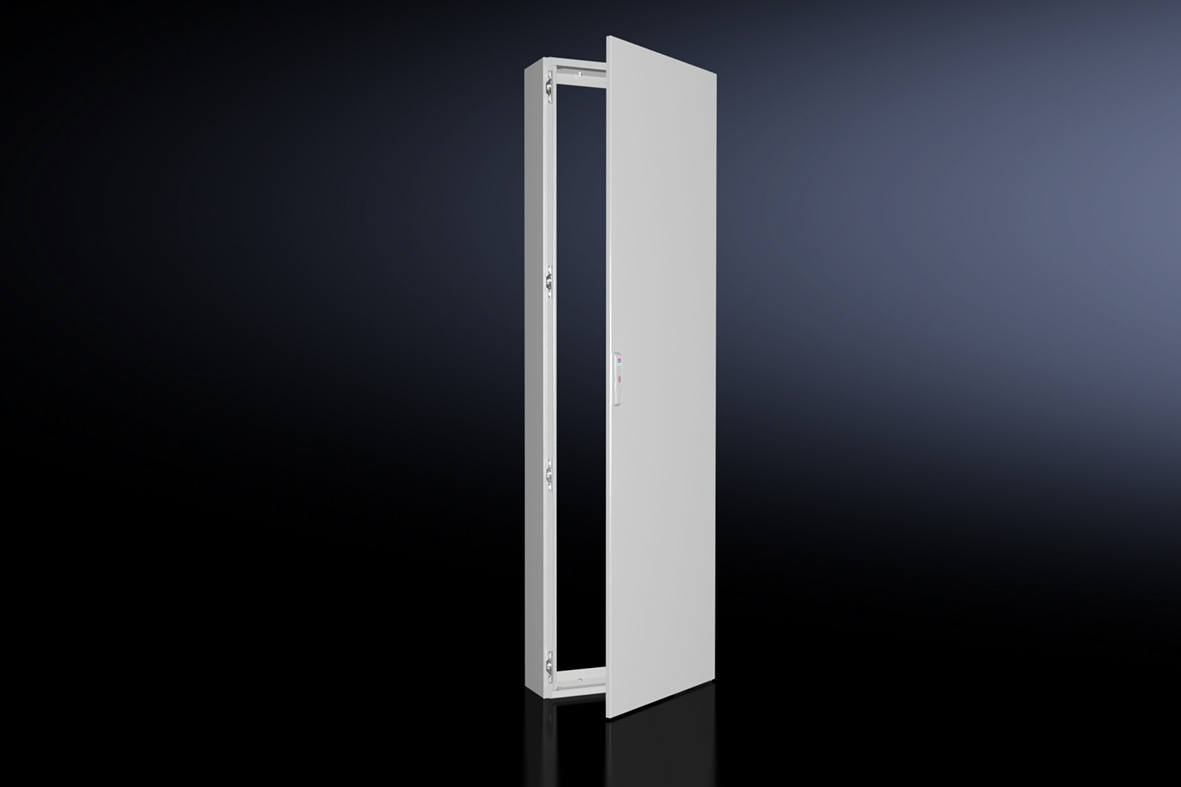

Rittal 8609220 VX cover hood with door, height: 2000x500 mm,

Your rating:
Average rating
product review for Rittal 8609220 VX cover hood with door, height: 2000x500 mm,
( 4.5 / 5 ) 19 ratings
Rittal 8609220
This image may differ from the desired article.
Rittal 8609220Rittal 8609220Rittal 8609220
447,93 EUR 460,46 EUR
( 533,04 EUR incl. VAT )
≈ £374.92  |  ≈ $492.28
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 8609220 VX cover hood with door, height: 2000x500 mm,
Datasheet:file_download Download
Lieske Part No.:1440933
Mfg Part No: 8609220
UPC/EAN: 4028177921672
Weight:45 kg
Type:VX 8609.220

Product information for Rittal 8609220:

The Rittal VX 8609.220 is a cover hood with door, specifically designed for enclosures of the VX series. It serves to protect and visually conceal connectors or other installations on the front side of the enclosure. The cover hood is designed for enclosures with a height of 2,000 mm and a depth of 500 mm, thus fitting the standard dimensions of the VX series. The construction allows for optional cable entry from the top or bottom, increasing flexibility during installation.

Applications

The cover hood is used in industrial plants where clean and protected cabling on the front side of the enclosure is required. It is particularly suitable for applications where connectors, cable ties, or other components need to be protected against dust, splashing water, or mechanical impacts. Its use in combination with VX switches ensures uniform visual design and secure mounting.

Functions and Equipment in Detail

The cover hood is made of sheet steel with a thickness of 1.5 mm, and the door is made of sheet steel with a thickness of 2.0 mm. The surface is dip-primed and externally powder-coated, ensuring high corrosion resistance and uniform color. The color corresponds to RAL 7035, a gray tone commonly used in industrial environments. The door is equipped with a bar lock and a double-bar lock insert, enabling secure and easy operation. The delivery includes two cover plates for the upper and lower edges of the cover hood to ensure a clean finishing edge.

Technology Explained Simply

The cover hood achieves a protection rating of IP 55 when used with enclosures of the VX series, meaning it is dust-tight and protected against splashing water from all directions. This makes it suitable for use in industrial environments with increased contamination risk or humid conditions. The NEMA 12 protection rating is also achieved when combined with VX or VX IT switches, confirming suitability for indoor use with moderate contamination levels. Dimensions are 202.7 mm in width, 1,998 mm in height, and 499 mm in depth, ensuring a precise fit for the intended enclosure sizes.

Compatibility and Accessories

The cover hood is exclusively intended for enclosures of the VX series with a minimum height of 2,000 mm and a minimum depth of 500 mm. Compatibility with VX IT switches is also specified, enabling use in IT and industrial applications. The cover hood is not suitable for other enclosure types or dimensions. Combination with other Rittal accessories, such as cable ducts or mounting plates, is possible as long as dimensions and mounting conditions match.

Mounting and Installation

Mounting is done on the front side of the enclosure, securing the cover hood via the designated mounting holes. The door can be attached after the cover hood is mounted. The cover plates are installed at the upper and lower edges to achieve a clean visual finishing edge. Cable entry is possible from the top or bottom, depending on installation requirements. Mounting does not require special tools, although the use of a screwdriver or screw clamp is recommended.

Operational Advantages

The cover hood provides a high protection level for front-side installations, extending the service life of components. The powder-coated surface is robust and resistant to mechanical stress. The integrated door with locking mechanism allows secure access to connectors without having to open the entire enclosure front. Uniform coloring and clean appearance contribute to a professional plant design. The cover hood is easy to clean and low-maintenance, reducing operating costs.

General
MaterialCover: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryCover hood, door with rod lock and double barb lock insert, 2 covers for top and bottom
Width202,7 mm
Height1.998 mm
Depth499 mm
Suitable forHousing type: VX, Height: = 2,000 mm, Depth: = 500 mm
Degree of protection IP according to IEC 60 529IP 55 in conjunction with VX series cabinets
NEMA degree of protectionNEMA 12 (in conjunction with cabinets of VX, VX IT series)
PCF/VE (Cradle-to-Gate)114.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8609220, EAN: 4028177921672

Questions & answers

What is the delivery time of Rittal 8609220 VX cover hood with door, height: 2000x500 mm, ?

The article Rittal 8609220 VX cover hood with door, height: 2000x500 mm, is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8609220 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8609220 VX cover hood with door, height: 2000x500 mm, always at the best possible price. We can give you a discount of 2% on Rittal 8609220 VX cover hood with door, height: 2000x500 mm, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
