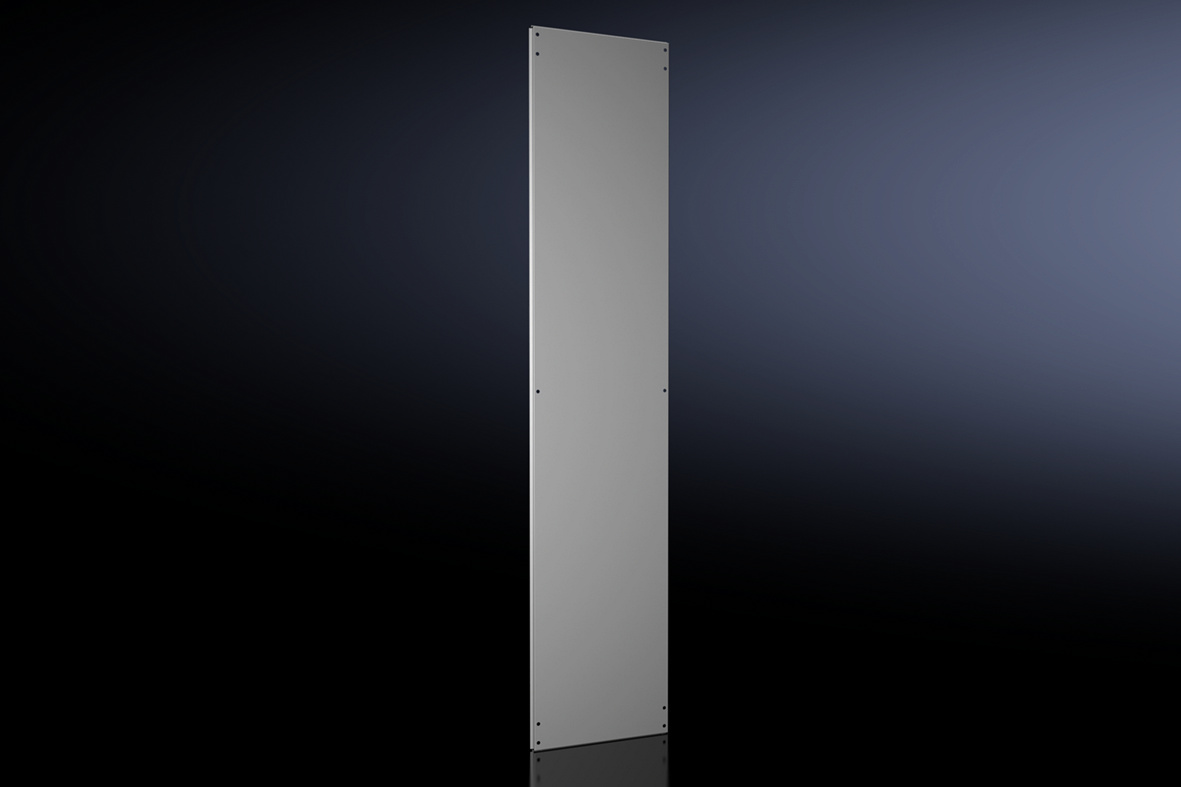

Rittal 8609204 VX partition panel, height: 2000x500 mm

Your rating:
Average rating
product review for Rittal 8609204 VX partition panel, height: 2000x500 mm
( 4.4 / 5 ) 18 ratings
Rittal 8609204
This image may differ from the desired article.
Rittal 8609204Rittal 8609204Rittal 8609204
87,98 EUR
( 104,70 EUR incl. VAT )
≈ £73.64  |  ≈ $96.69
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 8609204 VX partition panel, height: 2000x500 mm
Datasheet:file_download Download
Lieske Part No.:1440941
Mfg Part No: 8609204
UPC/EAN: 4028177817784
Weight:10.75 kg
Type:VX 8609.204

Product information for Rittal 8609204:

The Rittal VX partition panel, type 8609.204, is a system accessory for enclosures of the VX housing type, specifically designed for enclosures with a height of 2,000 mm and a depth of 500 mm. It is used to compartmentalize individual enclosure cells, enabling an organized and functional division of the interior space. The partition panel is mounted on the outer mounting plane, leaving the inner plane free for additional installation components. The material consists of steel sheet with a thickness of 1.5 mm, galvanized to prevent corrosion and ensure a long service life. The delivery includes the mounting hardware for installation.

Applications

The partition panel is suitable for the structured division of enclosures, particularly in industrial applications where a clear separation of electrical components or different functional units is required. Due to the symmetrical design of the frame system, the partition panel can also be mounted on the rear side of the enclosure. This allows, for example, the installation of frequency converters whose heat sinks are directed outward to ensure efficient heat dissipation. In such cases, the partition panel can be combined with a cover hood to visually blend the components and protect them from external influences.

Functions and Equipment in Detail

The partition panel features a continuous, double folded edge, which ensures mechanical stability and serves as a mounting surface for a seal. This construction supports a clean and tight separation of enclosure cells. Installation is carried out on the outer mounting plane, leaving the inner plane free for additional mounting elements. The partition panel is designed for use in enclosures of the VX system with a height of 2,000 mm and a depth of 500 mm.

Technology Explained Simply

The steel sheet construction with a thickness of 1.5 mm provides sufficient strength for industrial use. The galvanized surface protects the material from corrosion, especially in environments with high humidity or aggressive atmospheres. The protection class IP 54 according to IEC 60 529 means that the partition panel is dust-tight and protected against splashing water from any direction, making it suitable for use in indoor environments with increased contamination risk. The double folded edge ensures a stable structure and allows for the installation of a seal to improve the separation of enclosure cells.

Compatibility and Accessories

The partition panel is specifically designed for enclosures of the VX system with dimensions height 2,000 mm and depth 500 mm. For baying enclosures in combination with a partition panel, additional elements are required: either the baying bracket inside (part number 8617500) or the baying connector outside (part number 8617502). As suitable accessories, the VX cover hood with door, height 2000x500 mm (part number 8609220), is also offered, which can be used for visual blending and protection of installed components.

Mounting and Installation

Installation is carried out on the outer mounting plane of the enclosure, using the included mounting hardware. The inner mounting plane remains free to allow installation of additional mounting elements or devices. The partition panel can also be mounted on the rear side of the enclosure, which is particularly advantageous when installing heat-dissipating components such as frequency converters. The symmetrical design of the frame system enables this flexible installation.

Advantages in Operation

The partition panel provides a clear spatial separation within the enclosure, increasing clarity and maintainability. The possibility to mount the partition panel at the rear extends the range of applications, especially when integrating devices with external cooling. The IP 54 protection class ensures sufficient protection against dust and splashing water, supporting reliability in industrial environments. The double folded edge and galvanized surface contribute to durability and stability.

General
MaterialSheet steel, 1.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Suitable forHousing type: VX, Height: = 2,000 mm, Depth: = 500 mm
Mounting optionsInstallation is on the outer mounting plane; the inner plane remains free for further expansion
Mounting noteFor mounting in combination with a partition, the mounting bracket inside 8617500 or the mounting connector outside 8617502 is required
Degree of protection IP according to IEC 60 529IP 54


Product data sheet
Datasheet for Rittal 8609204, EAN: 4028177817784

Questions & answers

What is the delivery time of Rittal 8609204 VX partition panel, height: 2000x500 mm?

The article Rittal 8609204 VX partition panel, height: 2000x500 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8609204 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8609204 VX partition panel, height: 2000x500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8609204 VX partition panel, height: 2000x500 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
