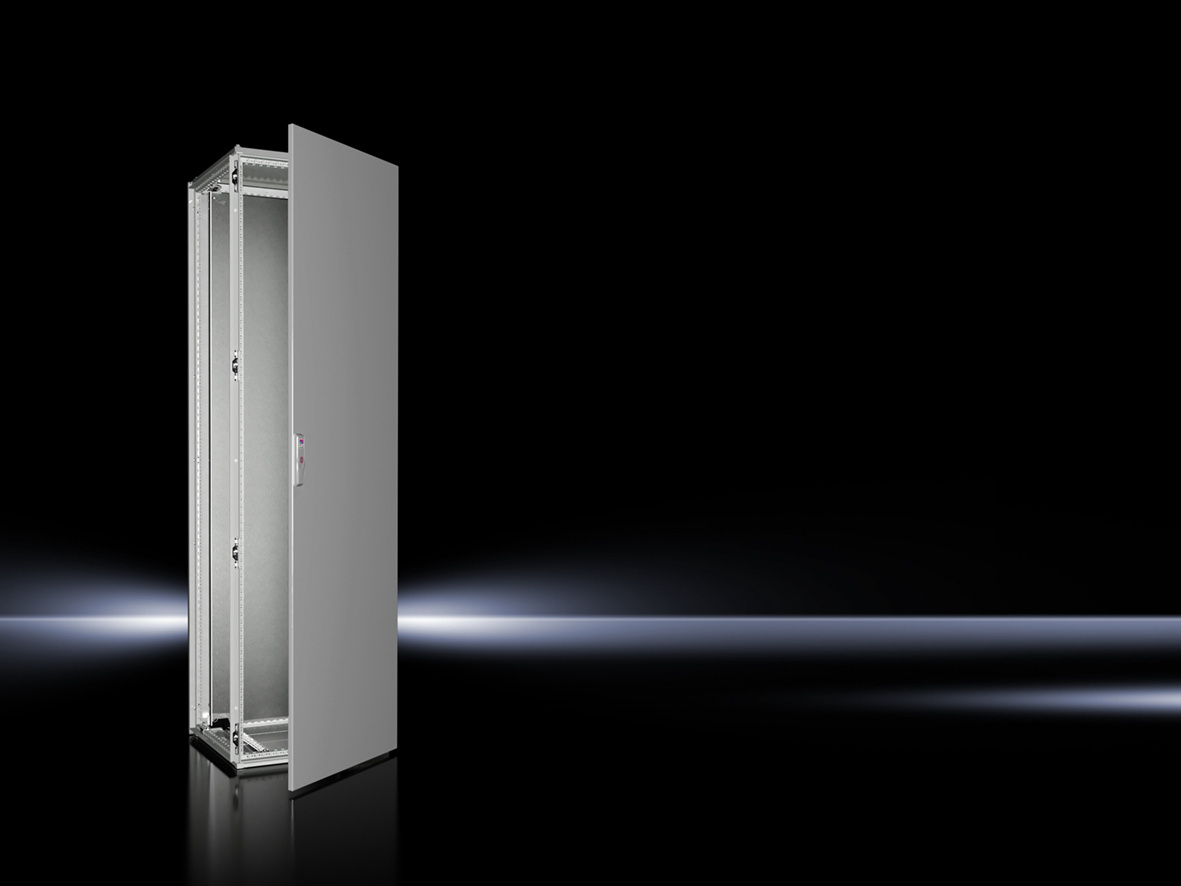

Rittal 8605000 VX bayed enclosure system, 1-door, W x H x D: 600x2000x500 mm,
|
583,05 EUR 593,02 EUR |
|
|
( 693,83 EUR incl. VAT ) ≈ £488.01 | ≈ $640.77 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440948 |
| Mfg Part No: | 8605000 |
| UPC/EAN: | 4028177813724 |
| Weight: | 98 kg |
| Type: | VX 8605.000 |
Product information for Rittal 8605000:
Applications
This enclosure system is suitable for indoor use as well as in environments with increased contamination risk. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for areas with moist or dusty atmospheres. The NEMA classification includes NEMA 1 and NEMA 12, confirming suitability for dry indoor environments and areas with slight contamination risk. The type rating according to UL 50E includes Type 1 and Type 12, confirming compliance with North American safety standards. The IK code IK10 indicates high mechanical resistance against mechanical impacts, such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure system consists of an enclosure frame made of sheet steel with a wall thickness of 1.5 mm, a roof, a door made of 2.0 mm sheet steel, a rear panel, floor plates, and a mounting plate made of 3.0 mm sheet steel. The surface of the enclosure frame is dip-primed, while the door, roof, and rear panel are dip-primed and externally powder-coated with a textured finish. The mounting plate and floor plates are galvanized. The color of the enclosure system is RAL 7035. The door is standard right-hinged but can be converted to left-hinged. The delivery includes two mounting rails with dimensions 18 x 39 mm and a lock with a 3 mm double bar. The mounting plate has dimensions 499 mm (W) x 1,896 mm (H) and is depth-adjustable in 25 mm increments. The door features a PU foam seal and a four-point locking rod lock with double bar insert according to DIN 43668. The door opening angle is 130° and can be toollessly extended to 180°. The clearance from the floor is 17 mm.
Technology Explained Simply
The construction of the enclosure system is based on a symmetrical profile frame made of closed and profiled hollow profiles. The profiles are perforated with a 25 mm grid, enabling flexible mounting of components. The horizontal profiles feature an additional groove above the PU foam seal to protect the seal. The mounting planes are accessible from inside and outside, enabling space-saving and quick internal installation. The floor plates are three-piece, removable, and replaceable. The rear panel and roof plate are removable and fitted with PU foam seals. Electrical conductivity between frame, rear panel, roof, and floor plates ensures automatic equipotential bonding according to DIN 62 208. The mounting plate is side C-bent and depth-adjustable via integrated plastic glides.
Compatibility and Accessories
The enclosure system is bayable on all sides and can be expanded with various accessories. Compatible accessories include levelling feet M12 with an adjustment height of 18–43 mm, TS mounting rails for the external mounting plane, VX partial mounting plates, transport eyes, dust protection strips, mounting plate spacers, TFT/monitor brackets with VESA connection, VX comfort handles, C-profile rails, cable entry ferrules in various diameters, multi-locking mechanisms, circuit diagram pockets, multitools, system chassis, and other mounting and fastening elements. These accessories allow individual adaptation of the enclosure system to specific requirements.
Mounting and Installation
Mounting is done via integrated blind rivet nuts M6 on the profile, enabling protection-rated fastening of fittings. The entire construction features rounded profile edges to minimize injury risks. The floor plates are attached to a welded floor frame with integrated floor reinforcement, enabling secure mounting to the floor. The mounting plate is depth-adjustable via integrated plastic glides and provides a mounting grid to simplify component positioning.
Operational Advantages
The enclosure system offers high mechanical stability and load capacity up to 15,000 N. The robust construction from sheet steel and the high protection rating IP 55 ensure long service life and reliable operation in demanding environments. The depth-adjustable mounting plate and flexible mounting plane simplify internal installation and maintenance. The integrated sealing and removable components enable easy cleaning and maintenance. The use of galvanized and powder-coated components ensures high corrosion resistance. QR codes on the roof, door, mounting plate, rear panel, and nameplate enable unique identification and labeling of the enclosure system.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 600 mm |
| Height | 2.000 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 499 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 281.43 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8605000 VX bayed enclosure system, 1-door, W x H x D: 600x2000x500 mm, ?
The article Rittal 8605000 VX bayed enclosure system, 1-door, W x H x D: 600x2000x500 mm, is currently in stock
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8605000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8605000 VX bayed enclosure system, 1-door, W x H x D: 600x2000x500 mm, always at the best possible price. We can give you a discount of 2% on Rittal 8605000 VX bayed enclosure system, 1-door, W x H x D: 600x2000x500 mm, if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
