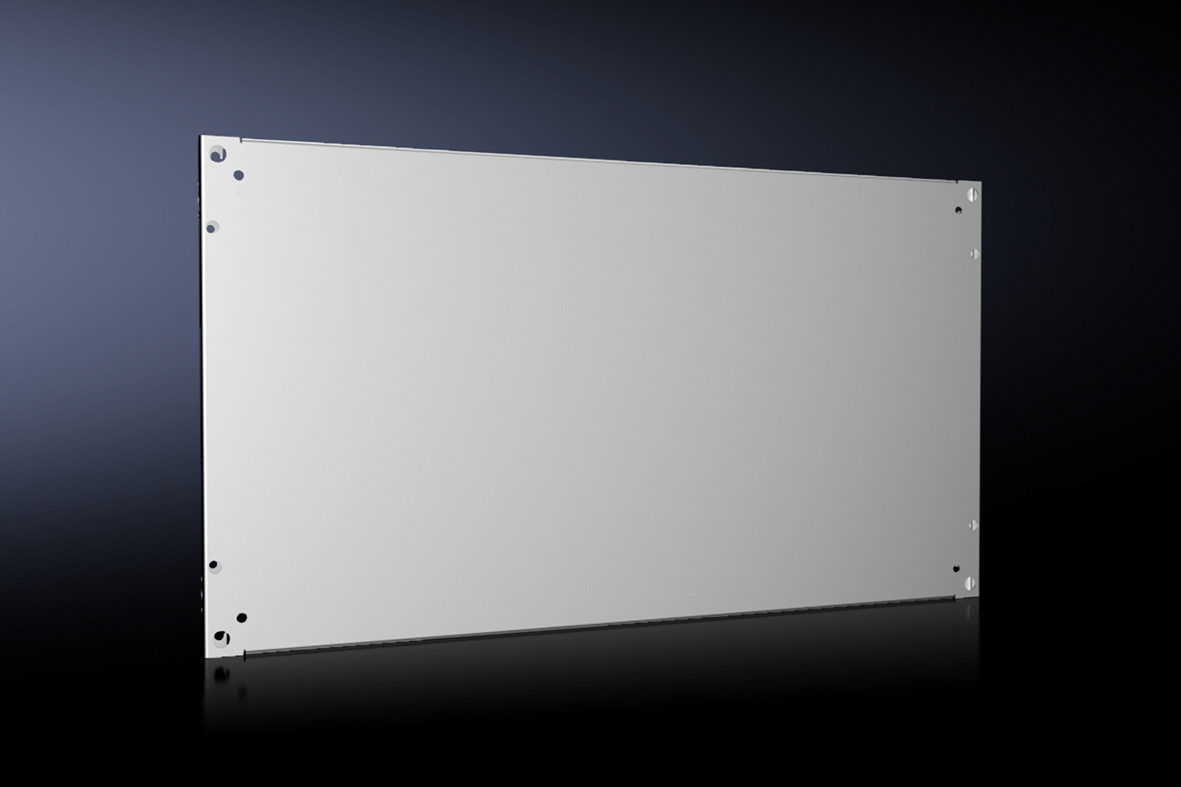

Rittal 8617610 VX partial mounting plate, W x H: 900x500 mm

Your rating:
Average rating
product review for Rittal 8617610 VX partial mounting plate, W x H: 900x500 mm
( 4.5 / 5 ) 19 ratings
Rittal 8617610
This image may differ from the desired article.
Rittal 8617610Rittal 8617610Rittal 8617610
71,30 EUR
( 84,85 EUR incl. VAT )
≈ £59.68  |  ≈ $78.36
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8617610 VX partial mounting plate, W x H: 900x500 mm
Datasheet:file_download Download
Lieske Part No.:1440887
Mfg Part No: 8617610
UPC/EAN: 4028177919464
Weight:11.36 kg
Type:VX 8617.610

Product information for Rittal 8617610:

Rittal VX 8617.610 is a partial mounting plate made of sheet steel with a thickness of 2.5 mm, specifically designed for use in enclosures of the VX, VX SE and PC series. With dimensions of 900 mm width and 500 mm depth, it provides a stable mounting surface for additional components inside the enclosure. The surface is zinc-coated, ensuring a corrosion-resistant and durable coating. The plate is supplied with fastening materials intended for direct mounting on the enclosure profile.

Applications
The partial mounting plate is used for the flexible installation of electrical or electronic components, such as control units, power supply modules or connection parts. It enables a modular and structured arrangement of components within the enclosure, simplifying maintenance and servicing. The plate is particularly suitable for enclosures with a door width of 1,000 mm and adapts to the standard dimensions of the mentioned enclosure types.

Functions and Equipment in Detail
Mounting can be done either in vertical position as a vertical mounting surface or in horizontal orientation as a horizontal base. In a pre-assembled setup, the plate can be mounted at any desired mounting level in the enclosure using system chassis. For multi-level arrangements, where multiple partial mounting plates are mounted in sequence, a swivelling version with hinge mounting is available. This allows quick access to the rear levels without fully dismantling the front plates.

Technology Explained Simply
The use of sheet steel with a thickness of 2.5 mm ensures high mechanical stability and load capacity for mounted components. The zinc-coated surface protects the material from corrosion, especially in environments with high humidity or aggressive atmospheres. Mounting is done directly onto the enclosure profile, ensuring a secure and vibration-resistant installation. The dimensions of 900 mm width and 500 mm depth correspond to standard sizes for enclosures with a door width of 1,000 mm.

Compatibility and Accessories
The partial mounting plate is compatible with enclosure types VX, VX SE and PC. For installation in VX SE, PC and IW, the use of the VX adapter rail is required. The plate is designed for enclosures with a width of 600 mm or 1,000 mm and a depth of 600 mm. Mounting is done directly onto the enclosure profile, with the fastening materials included in the delivery scope.

Mounting and Installation
Installation is carried out by fastening to the existing enclosure profiles. In a pre-assembled setup, the plate is mounted via system chassis, allowing flexible positioning at various heights. In multi-level mounting configurations, the plate can be mounted swivelling via hinge fastenings to facilitate access to rear levels.

Advantages in Operation
The partial mounting plate offers a flexible and structured mounting option for additional components within the enclosure. The swivelling version enables efficient maintenance and inspection, as individual levels can be accessed without dismantling the front plates. The robust construction made of zinc-coated sheet steel ensures a long service life and high reliability in industrial use. Compatibility with various enclosure types increases application flexibility and reduces the need for special adaptations.

General
MaterialSheet steel, 2.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Suitable for door width1.000 mm
Mounting optionsInstallation can be either vertical as upright mounting surface or horizontal as flat floor; mounting is directly to cabinet profile; with pre-assembled construction, mounting is via system chassis at any mounting level within the cabinet; with multi-level installation of partial mounting plates in sequence, these can be hinged for quick access to rear levels
NoteFor installation in VX SE, PC, IW, the VX adapter rail is required
Width900 mm
Depth500 mm
Suitable for housing typeVX, VX SE, PC
Suitable forEnclosure type: VX, VX SE, PC, Width: = 600 mm, = 1,000 mm, Depth: = 600 mm
PCF/VE (Cradle-to-Gate)43.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8617610, EAN: 4028177919464

Questions & answers

What is the delivery time of Rittal 8617610 VX partial mounting plate, W x H: 900x500 mm?

The article Rittal 8617610 VX partial mounting plate, W x H: 900x500 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617610 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617610 VX partial mounting plate, W x H: 900x500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617610 VX partial mounting plate, W x H: 900x500 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
