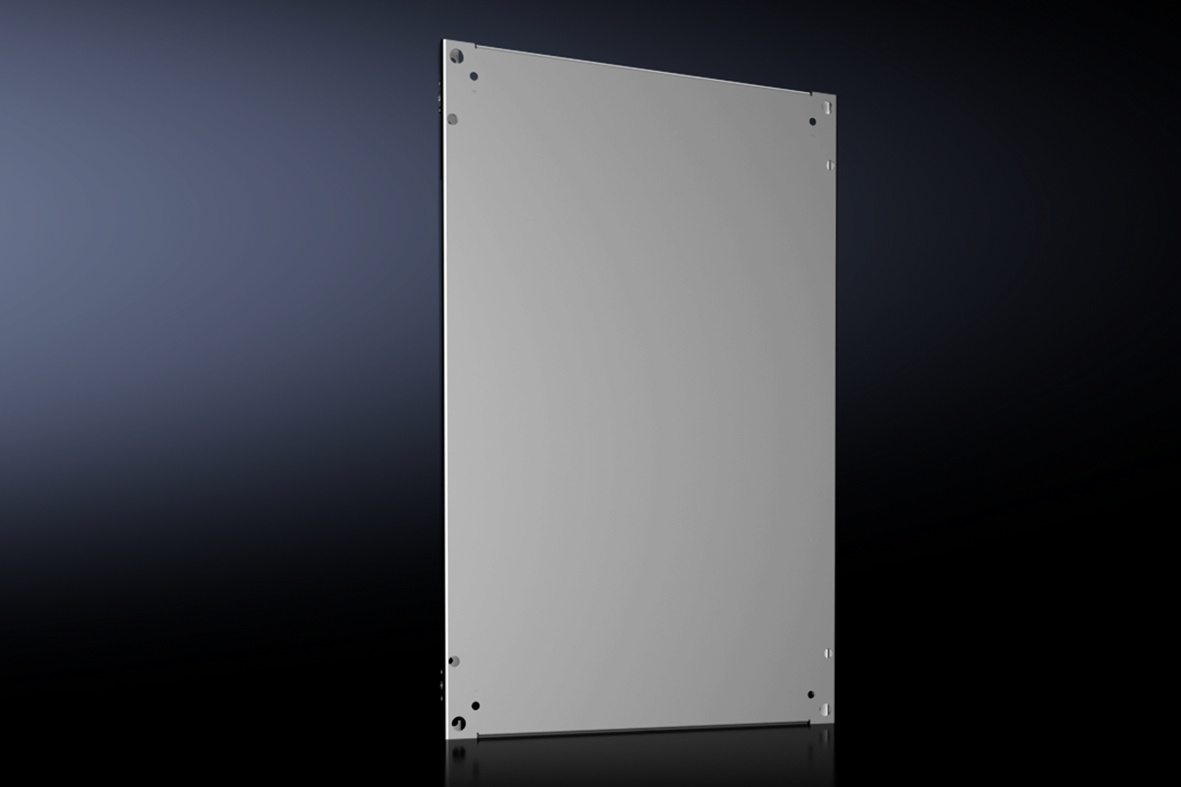

Rittal 8617550 VX partial mounting plate, W x H: 500x775 mm

Your rating:
Average rating
product review for Rittal 8617550 VX partial mounting plate, W x H: 500x775 mm
( 4.6 / 5 ) 13 ratings
Rittal 8617550
This image may differ from the desired article.
Rittal 8617550Rittal 8617550Rittal 8617550
-10% 53,94 EUR 60,16 EUR
( 64,19 EUR incl. VAT )
≈ £45.15  |  ≈ $59.28
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8617550 VX partial mounting plate, W x H: 500x775 mm
Datasheet:file_download Download
Lieske Part No.:1440878
Mfg Part No: 8617550
UPC/EAN: 4028177919402
Weight:9.84 kg
Type:VX 8617.550

Product information for Rittal 8617550:

The Rittal VX 8617.550 is a partial mounting plate made of steel sheet with a thickness of 2.5 mm, designed for use in enclosures of type VX, VX SE and PC. The plate serves to mount additional components within the enclosure and provides a flexible mounting surface for various applications. With dimensions of 500 mm width and 775 mm depth, it is specifically designed for enclosures with a door width of 600 mm. The surface is zinc-coated, ensuring a corrosion-resistant and durable coating.

Applications
The partial mounting plate is used in industrial environments where modular and flexible arrangement of components within the enclosure is required. It enables the integration of controls, power electronics, sensors or other electrical components that cannot be mounted directly on the enclosure walls. The plate can be installed both vertically and horizontally, allowing it to adapt to different mounting concepts. In pre-assembled construction, it can be mounted at any mounting level within the enclosure using system chassis.

Functions and Equipment in Detail
Mounting is done directly to the enclosure profile. For installation in enclosures of types VX SE, PC and IW, the use of a VX adapter rail is required. The plate is supplied with fastening material sufficient for mounting to the enclosure profiles. In multi-level installations, where several partial mounting plates are arranged in sequence, a swivelling version with hinge mounting can be selected to enable quick access to the rear levels.

Technology Explained Simply
The use of steel sheet with a thickness of 2.5 mm ensures sufficient mechanical stability to safely support even heavier components. The zinc-coated surface protects the material from corrosion, especially in environments with high humidity or aggressive atmosphere. The dimensions of 500 mm width and 775 mm depth are matched to standard enclosure dimensions with 600 mm door width and 600 mm depth, achieving optimal space utilisation.

Compatibility and Accessories
The partial mounting plate is compatible with enclosure types VX, VX SE and PC. It is specifically designed for enclosures with a width of 600 mm and a depth of 600 mm. The plate can be used in various mounting variants, with fastening directly to the enclosure profile.

Mounting and Installation
Installation is carried out by fastening to the enclosure profiles. In pre-assembled construction, the plate is mounted at any mounting level within the enclosure using system chassis. Fastening is done using the included material. In multi-level installations, a swivelling version can be chosen to facilitate access to rear levels.

Advantages in Operation
The partial mounting plate offers a flexible and modular solution for mounting electrical components within the enclosure. The ability to mount the plate vertically or horizontally, as well as the option for a swivelling version, increases flexibility in planning and maintenance of the system. The zinc-coated surface ensures long service life and low maintenance requirements. The dimensions are matched to standard enclosure sizes, enabling easy integration into existing systems.

General
MaterialSheet steel, 2.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Suitable for door width600 mm
NoteFor installation in VX SE, PC, IW, the VX adapter rail is required
Width500 mm
Depth775 mm
Suitable for housing typeVX, VX SE, PC
Suitable forCabinet type: VX, VX SE, PC, width: = 600 mm, depth: = 600 mm
PCF/VE (Cradle-to-Gate)37.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8617550, EAN: 4028177919402

Questions & answers

What is the delivery time of Rittal 8617550 VX partial mounting plate, W x H: 500x775 mm?

The article Rittal 8617550 VX partial mounting plate, W x H: 500x775 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617550 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617550 VX partial mounting plate, W x H: 500x775 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617550 VX partial mounting plate, W x H: 500x775 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
