Rittal 5368050 PC enclosure system, W 600 mm, viewing door, drawer, Ge
|
-8% 1.746,85 EUR 1.891,88 EUR |
|
|
( 2.078,75 EUR incl. VAT ) ≈ £1,462.11 | ≈ $1,919.79 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910630 |
| Mfg Part No: | 5368050 |
| UPC/EAN: | 4028177959446 |
| Weight: | 110 kg |
| Type: | PC 5368050 |
Product information for Rittal 5368050:
Applications
This enclosure system is suitable for use in production facilities, control centers, laboratory environments, and other technical installations where a PC is used as an operating or control element. The protection rating IP 55 according to IEC 60 529 and the NEMA 12 approval make it suitable for areas where moisture, dust, or splashing water may occur. The type rating according to UL 50E (Type 1 and Type 12) confirms its suitability for indoor environments with increased requirements for protection against mechanical damage and contamination.
Functions and Equipment in Detail

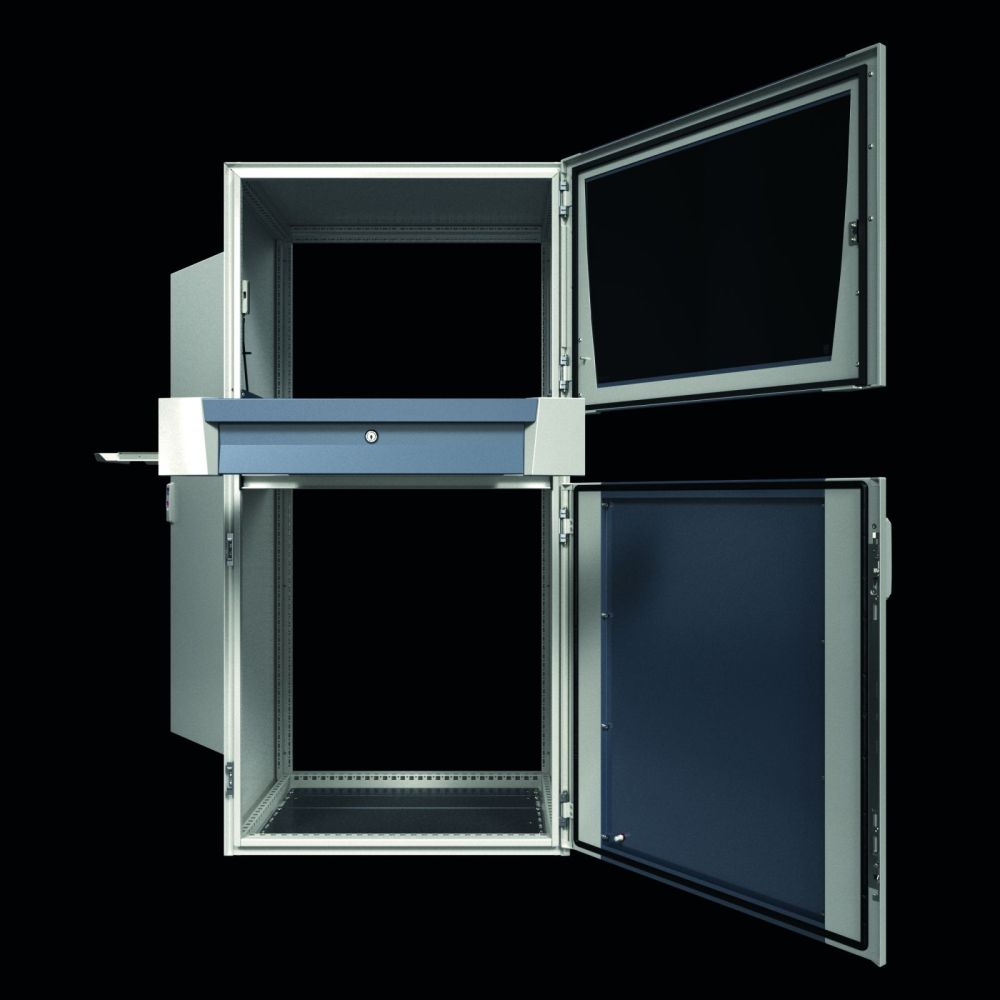

The system features a viewing door on top, which is secured from inside with a frame and hinged on the right. The door is equipped with vertical plastic decor panels and a single-pane safety glass window with a screen-printed mask. The keyboard drawer provides space for keyboards with maximum dimensions of 480 mm (width) × 70 mm (height) × 260 mm (depth). The drawer includes a keyboard pull-out and a mouse pad pull-out. The front trim panel features a grip strip and can be folded down to serve as a palm rest. The lower door and rear door are also hinged on the right and equipped with a bar lock and double-bar lock insert. The component shelf is perforated and fixed in place to securely position the monitor.
Technology Explained Simply
The enclosure is made of sheet steel and features a dip-primed, powder-coated exterior surface finished with a textured lacquer. The color scheme is RAL 7035 for the enclosure, door, decor panels, and shelves, while the handle, monitor panel, and central door section are in RAL 7015. The materials are selected to provide high mechanical stability and corrosion resistance. The IP 55 protection rating means the device is protected against dust and splashing water, making it suitable for outdoor use or in damp indoor environments. The NEMA 12 approval corresponds to a protection level intended for industrial environments with increased risk of contamination.
Compatibility and Accessories
The enclosure system is expandable with various accessories that ensure optimal use. These include, for example, an extendable drawer tray, a paper removal flap, comfort handles in various designs, an extendable component shelf, and adapter and plinth elements for integration into VX systems. These components allow individual adaptation of the enclosure to specific requirements, such as the use of lock cylinders or integration into existing mounting systems.
Mounting and Installation
The enclosure system is designed for standalone installation and features profiled mounting profiles on the side panels and roof, enabling secure mounting. The continuous system perforation in a 25 mm grid provides flexibility for interior equipment and allows mounting of additional components. The base unit is three-piece and made of galvanized sheet steel, providing a stable foundation for the enclosure.
Operational Advantages
The combination of a robust sheet steel enclosure, high protection rating, and ergonomic equipment ensures long service life and safe operation. The integrated keyboard drawer and viewing door enhance daily operating comfort, while the protective features shield against contamination, moisture, and mechanical impacts. The modular construction allows flexible adaptation to different operational requirements.
| General | |
| Model | with top sight door, keyboard drawer and equipment floor |
| Material | Casing, door, rear door, mounting panel, shelves: sheet steel, handles, decorative panels: plastic, door panels: aluminium, viewing window: single-pane safety glass |
| Surface protection | Housing and door: dip primed, externally powder-coated, textured lacquer |
| Basic colour | RAL 7035 |
| Colour | Housing, door, decorative panels, shelves: RAL 7035, handle: RAL 7015, monitor panel, door centre section: RAL 7015 |
| Scope of delivery | Housing, door, rear door, base plates, vision door, top, keyboard drawer, equipment base |
| Width | 600 mm |
| Height | 1.600 mm |
| Depth | 836 mm |
| Degree of protection IP according to IEC 60 529 | IP 55 |
| NEMA degree of protection | NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| Max. keyboard dimensions (WxHxD) | 480 x 70 x 260 mm |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 422.9 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5368050 PC enclosure system, W 600 mm, viewing door, drawer, Ge?
The article Rittal 5368050 PC enclosure system, W 600 mm, viewing door, drawer, Ge is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5368050 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5368050 PC enclosure system, W 600 mm, viewing door, drawer, Ge always at the best possible price. We can give you a discount of 2% on Rittal 5368050 PC enclosure system, W 600 mm, viewing door, drawer, Ge if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
