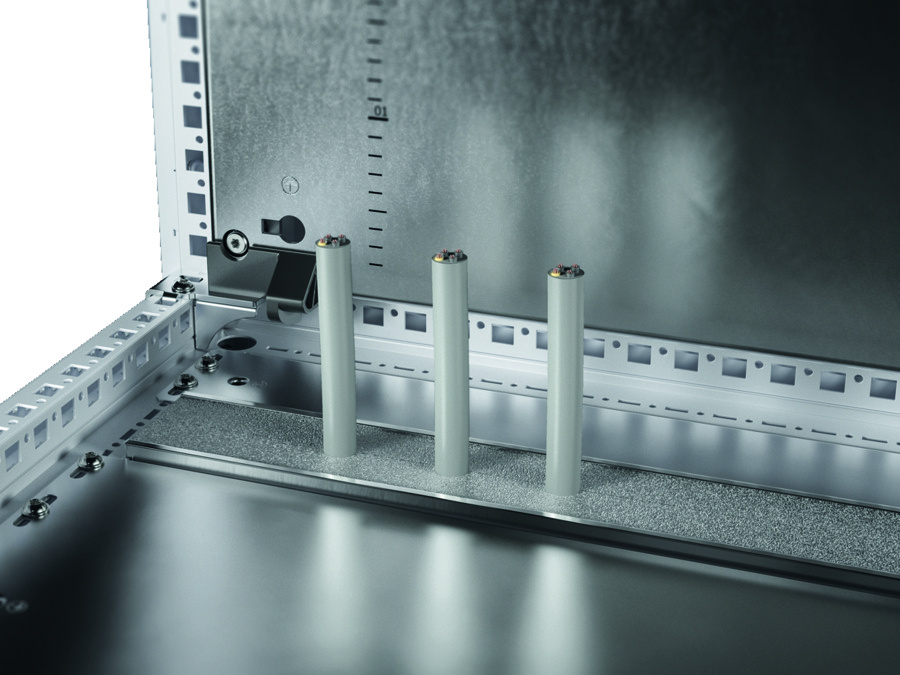

Rittal 8618800 VX profile for cable entry, central, W: 600 mm
|
19,65 EUR 19,66 EUR |
|
|
( 23,38 EUR incl. VAT ) ≈ £16.45 | ≈ $21.60 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441939 |
| Mfg Part No: | 8618800 |
| UPC/EAN: | 4028177922747 |
| Weight: | 0.167 kg |
| Type: | VX 8618.800 |
Product information for Rittal 8618800:
Applications
The profile is intended for use in various housing types, including the enclosure series VX (from 600 mm width), VX SE, as well as CX console sub-units and CX stand consoles. It is mounted directly onto base plates, allowing cables to be routed directly to a cable strain relief rail without large bending radii. This is particularly advantageous when mounting mounting plates in a forward position, as it enables clean and mechanically gentle cable routing.
Functions and Equipment in Detail
The profile is made of rigid PVC, which is hard to ignite and self-extinguishing. The material properties ensure temperature resistance up to +60 °C, making it suitable for typical industrial operating conditions. The integrated sealing made of PU foam ensures effective sealing and prevents ingress of dust or moisture. The cross-sectional dimension is 30 x 25 mm, providing sufficient routing capacity for most cable types. The delivery includes the snap-on profiles including elastic clamping profiles, which contribute to secure fastening and sealing.
Technology Explained Simply
The profile is simply snapped onto the base plates without additional fastening elements. The elastic clamping profiles ensure a secure fit and tight connection. The full-surface contact minimizes the risk of cable damage due to uneven loading. The combination with a cable strain relief rail enables optimal adaptation between the cable entry and the mounting plate, making the installation more efficient and error-free.
Compatibility and Accessories
The profile is specifically designed for enclosures with a width of 600 mm. From a cabinet width of 1000 mm, the base group is divided into two sections, allowing a cable entry point to be installed on both sides. Compatible accessories include C-profile rails 30/15 EN 60 715 TS L555 mm and VX cable strain relief rail, angle profile, W: 600 mm, which can be used for additional cable routing and fixation.
Mounting and Installation
Installation is performed by snapping the profile onto the designated base plates. Two pieces per cable entry point are required. The installation is simple and does not require additional tools or mounting aids. The elastic clamping profiles ensure a secure connection and prevent the profile from shifting during operation.
Advantages in Operation
Using the VX 8618.800 reduces installation time and minimizes the risk of cable damage due to inadequate routing. The high sealing protects the interior of the enclosure from environmental influences. The materials are designed for industrial use and ensure a long service life under normal operating conditions. The combination with additional accessories such as the cable strain relief rail enables a flexible and adaptable installation that meets the requirements of various projects.
| General | |
| Applications | For mounting on floor plates |
| Material | Rigid PVC, Flame retardant, self-extinguishing, temperature resistant up to +60 °C, Seal: PU foam, Cross-section: 30 x 25 mm |
| Scope of delivery | Clip-on profiles, including elastic clamp profiles |
| Note | Two pieces required per cable entry point. For cabinet width 1000 mm and above, the base group is divided into two width sections. Two cable entry points (left/right) can be used. |
| Suitable for | Cabinet type: VX: = 600 mm, Cabinet type: VX SE, Cabinet type: Console subunit CX, Cabinet type: Floor console CX |
Questions & answers
What is the delivery time of Rittal 8618800 VX profile for cable entry, central, W: 600 mm?
The article Rittal 8618800 VX profile for cable entry, central, W: 600 mm is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8618800 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8618800 VX profile for cable entry, central, W: 600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8618800 VX profile for cable entry, central, W: 600 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
