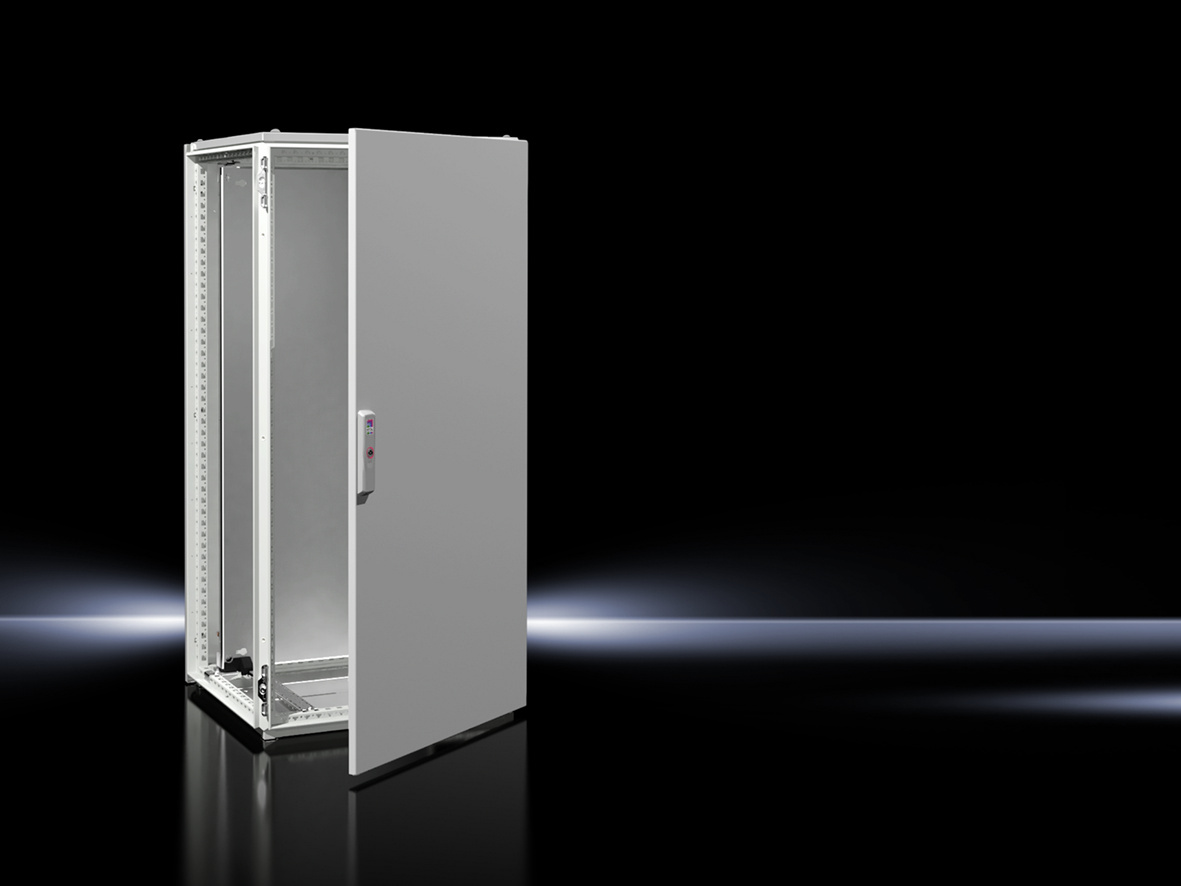

Rittal 8615000 VX bayed enclosure system, 1-door, W x H x D: 600x1200x500 mm
|
506,00 EUR |
|
|
( 602,14 EUR incl. VAT ) ≈ £423.52 | ≈ $556.09 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440931 |
| Mfg Part No: | 8615000 |
| UPC/EAN: | 4028177813755 |
| Weight: | 66 kg |
| Type: | VX 8615.000 |
Product information for Rittal 8615000:
Applications
This enclosure system is designed for use in industrial environments where high mechanical stability and protection against dust and splashing water are required. It is suitable for use in production halls, machine controls, plant automation, and other areas where enclosures are mounted in baying configurations. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from all directions, making it suitable for outdoor use as well. The NEMA classification includes NEMA 1 and NEMA 12, indicating protection against contact and falling dust as well as splashing water. The Type rating according to UL 50E includes Type 1 and Type 12, confirming suitability for dry indoor environments and areas with minor contamination risks. The IK code IK10 indicates high mechanical resistance against impact and shock loads.
Functions and Equipment in Detail
The enclosure system consists of a frame made of 1.5 mm thick sheet steel, hot-dip galvanized. The door, roof, and rear panel are also made of sheet steel, with the door being 2.0 mm thick and the other surfaces 1.5 mm. These components are externally powder-coated with a textured paint in the color RAL 7035. The base plates and mounting plate are zinc-coated to prevent corrosion. The roof plate is equipped with M12 mounting screws, enabling secure installation. The rear panel is removable and features a positioning aid to facilitate precise mounting. The door includes a PU foam seal ensuring a tight closure and can be toollessly opened to an angle of 180°. The clearance from the floor is 17 mm, ensuring sufficient ventilation and accessibility.
Technology Explained Simply
The construction of the enclosure system is based on a symmetrical profile frame with closed and profiled hollow profiles, perforated in a 25 mm grid. This allows for flexible component mounting and quick installation. The horizontal profiles feature a groove above the seal, providing additional protection. The entire construction is equipped with integrated blind rivet nuts M6, enabling protection-rated fastening of fittings. The surfaces are electrically connected to the frame, ensuring automatic equipotential bonding according to DIN 62 208 and simplifying grounding. The mounting plate is fitted with integrated plastic gliding pieces and reusable mounting rails, enabling depth-adjustable mounting.
Compatibility and Accessories
The enclosure system is designed for baying and can be connected on all sides. It is designed to withstand a load of up to 15,000 N. Compatible accessories include levelling feet M12, TS mounting brackets, VX partial mounting plates, transport eyes, dust protection strips, monitor brackets, comfort handles, C-profile rails, cable entry ferrules, multi-locking mechanisms, circuit diagram pockets, multitools, system chassis, and side panels. These components allow for individual customization of the enclosure to meet specific requirements.
Mounting and Installation
Mounting is performed via the integrated mounting levels, accessible from inside and outside. The mounting plate is depth-adjustable in 25 mm increments, enabling flexible arrangement of components. The base plates are split and removable, ensuring easy cleaning and replacement. The door can be toollessly opened to 180°, facilitating installation and maintenance. The entire construction is designed for quick and space-saving internal fitting.
Operational Advantages
The enclosure system offers high mechanical stability, reliable protection rating, and flexible mounting. The integrated mounting plate and depth-adjustable rails simplify component installation. The removable rear panel and roof facilitate maintenance and component replacement. The conductive connection of the surfaces to the frame ensures secure grounding. The IP 55 protection rating and IK10 rating make the system suitable for demanding industrial environments. The modular design allows for flexible expansion and adaptation to future requirements.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 600 mm |
| Height | 1.200 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 499 mm x 1.096 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 192.13 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8615000 VX bayed enclosure system, 1-door, W x H x D: 600x1200x500 mm?
The article Rittal 8615000 VX bayed enclosure system, 1-door, W x H x D: 600x1200x500 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8615000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8615000 VX bayed enclosure system, 1-door, W x H x D: 600x1200x500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8615000 VX bayed enclosure system, 1-door, W x H x D: 600x1200x500 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
