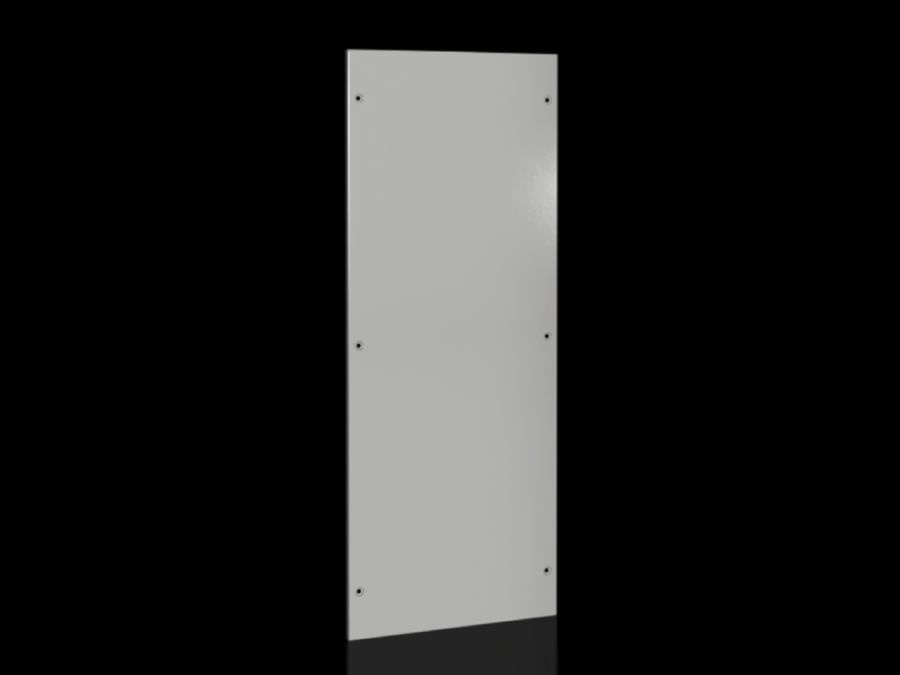

Rittal 8115245 Side panels VX screwable H×D 1200×500 mm 2 pcs

Your rating:
Average rating
product review for Rittal 8115245 Side panels VX screwable H×D 1200×500 mm 2 pcs
( 4.6 / 5 ) 21 ratings
Rittal 8115245
This image may differ from the desired article.
Rittal 8115245Rittal 8115245Rittal 8115245
120,85 EUR
( 143,81 EUR incl. VAT )
≈ £101.15  |  ≈ $132.81
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8115245 Side panels VX screwable H×D 1200×500 mm 2 pcs
Datasheet:file_download Download
Lieske Part No.:1440674
Mfg Part No: 8115245
UPC/EAN: 4028177827516
Weight:14.8 kg
Type:VX 8115.245

Product information for Rittal 8115245:

The Rittal VX 8115.245 is a screw-mounted side panel made of sheet steel, specifically designed for enclosures in the VX system. It is intended for enclosures with a height of 1,200 mm and a depth of 500 mm, serving as a stable and protection-compliant cover for the side surfaces. The component is made of 1.5 mm thick sheet steel, which is dip-primed and externally powder-coated, resulting in a uniform, durable surface in the colour RAL 7035. The side panel is designed for use in industrial environments where high mechanical load capacity and protection against dust and splashing water are required.

Applications
The side panel VX 8115.245 is used in industrial enclosure systems, particularly in manufacturing and automation technology, where protection class IP 55 and Type 1/Type 12 according to UL 50E are required. These protection classes ensure that the side panel repels dust and splashing water, making it suitable for indoor areas with increased contamination risk. Use in VX enclosures enables a modular and standardized construction approach that can be adapted to different requirements.

Functions and Equipment in Detail
The side panel is mounted by screwing, with the use of clip-on side panel holders reducing mounting time. The holders allow for quick and precise fastening, enabling installation by a single person. The hanging aid facilitates easy positioning in height and depth, simplifying alignment during installation. An integrated earthing bolt with a large, paint-free contact surface ensures a reliable electrical connection and efficient equipotential bonding.

Technology Explained Simply
The side panel is equipped with flat part holders that feature internal contact elements. This construction ensures automatic equipotential bonding and enhances EMC protection, as the electrical connection between the side panel and the enclosure is direct and does not require additional connecting wires. The use of sheet steel with a thickness of 1.5 mm provides sufficient mechanical strength to protect the side panel against external influences. The surface treatment with dip priming and powder coating increases corrosion resistance and the durability of the panel during operation.

Compatibility and Accessories
The side panel is specifically designed for VX enclosures with a height of 1,200 mm and a depth of 500 mm. Compatible accessories include screw-mounted hinges for the side panel and a VX internal locking system for the side panel, which enables additional securing. These components can be used to extend functionality and improve accessibility or safety of the enclosure.

Mounting and Installation
Mounting is done by screwing the side panel onto the designated holders inside the enclosure. The clip-on holders and hanging aid simplify positioning and fastening. The delivery includes mounting hardware, so no additional installation parts are required. Single-person installation is possible, as the design is intended for easy handling.

Advantages in Operation
The side panel provides reliable protection against dust and splashing water, increasing the lifespan of the electronic components installed inside. The automatic equipotential bonding and improved EMC protection reduce the risk of interference and increase operational safety. The simple mounting and modular construction enable quick installation and maintenance, increasing the enclosure’s operational readiness. The use of sheet steel and the powder-coated surface ensure high mechanical and chemical resistance, even in demanding environments.

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forhousing type: VX, height: = 1,200 mm, depth: = 500 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)46.08 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8115245, EAN: 4028177827516

Questions & answers

What is the delivery time of Rittal 8115245 Side panels VX screwable H×D 1200×500 mm 2 pcs?

The article Rittal 8115245 Side panels VX screwable H×D 1200×500 mm 2 pcs is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8115245 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8115245 Side panels VX screwable H×D 1200×500 mm 2 pcs always at the best possible price. We can give you a discount of 2% on Rittal 8115245 Side panels VX screwable H×D 1200×500 mm 2 pcs if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
