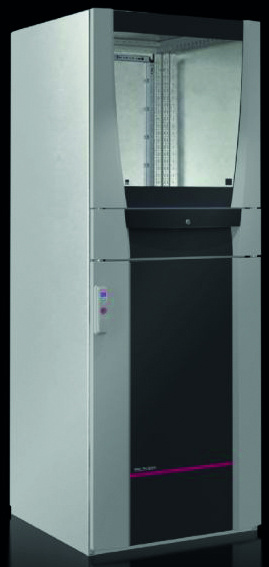

Rittal 5366050 PC enclosure system, W 600 mm, viewing door, drawer, component shelf

Your rating:
Average rating
product review for Rittal 5366050 PC enclosure system, W 600 mm, viewing door, drawer, component shelf
( 0 / 5 ) 0 ratings
Rittal 5366050
This image may differ from the desired article.
Rittal 5366050Rittal 5366050Rittal 5366050Rittal 5366050Rittal 5366050Rittal 5366050
1.617,82 EUR
( 1.925,21 EUR incl. VAT )
≈ £1,354.12  |  ≈ $1,777.98
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 5366050 PC enclosure system, W 600 mm, viewing door, drawer, component shelf
Datasheet:file_download Download
Lieske Part No.:1910626
Mfg Part No: 5366050
UPC/EAN: 4028177959422
Weight:95.8 kg
Type:PC 5366050

Product information for Rittal 5366050:

The Rittal PC enclosure system type 5366050 is a stationary housing for the secure installation of PC components, including monitor, computer, and keyboard. It is designed for use in industrial and technical environments where protection against moisture, dust, dirt, temperature fluctuations, and unauthorized access is required. The enclosure is made of sheet steel and offers a robust, long-lasting construction with external dimensions of 600 mm width, 1,600 mm height, and 636 mm depth. The surface is dip-primed and externally powder-coated with a textured lacquer, achieving high mechanical and chemical resistance. The base color of the enclosure, door, decor trim panels, and shelves is RAL 7035, while the handle, monitor panel, and central door section are in RAL 7015.

Applications
This enclosure system is suitable for use in production facilities, automation technology, machine control systems, laboratory environments, and other areas where protected and accessible operation of PC systems is required. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water, making it suitable for outdoor use as well. The NEMA classification NEMA 12 and the type rating according to UL 50E (Type 1, Type 12) confirm suitability for industrial environments with increased protection requirements.

Functions and Equipment in Detail
The system features an upper viewing door, internally secured with a frame and hinged on the right side. The door is equipped with vertical plastic decor trim panels and a single-pane safety glass viewing window, which includes a screen-printed mask. The keyboard drawer includes a keyboard pull-out and a mouse pad pull-out, enabling ergonomic operation. The maximum keyboard dimensions are 480 mm (W) × 70 mm (H) × 260 mm (D). The component shelf is perforated and fixed in place to securely position the monitor. The lower door and rear door are also hinged on the right side and equipped with a bar lock and double-bar lock insert, ensuring a secure closure.

Technology Explained Simply
The construction of the enclosure system allows for individual interior fitting through a continuous system hole pattern on a 25 mm grid. Profiled mounting profiles are installed on the side panels and roof, enabling flexible installation of interior components. The base group consists of three-piece base sheets made of galvanized sheet steel, providing a stable foundation. The use of single-pane safety glass in the viewing door ensures transparency and safety, as the glass breaks into small, non-sharp fragments.

Compatibility and Accessories
Various accessories are available for this enclosure system, extending its functionality. These include, for example, an extendable component shelf for 600 mm, a steel sheet PC plinth, drawer trays, paper extraction flaps, comfort handles in various designs, plinth trim panels and corner pieces, as well as VX system chassis and profiles for cable entry. These components allow application-specific adaptation of the enclosure system to individual requirements.

Mounting and Installation
Installation is carried out using the pre-defined mounting profiles and system holes. The base sheets are included in the delivery scope and enable stable installation on the floor. The doors are hinged on the right side and can be secured with the provided locks. The interior fitting can be customized individually, with the system hole pattern and mounting profiles enabling flexible installation of devices and cables.

Advantages in Operation
The enclosure system provides a high protection standard for the installed PC components. The ergonomic design with keyboard drawer and viewing door facilitates daily operation. The robust construction from sheet steel and the powder-coated surface ensure long service life and resistance to mechanical stress and environmental influences. The integrated mounting profiles and system holes enable flexible and space-saving interior fitting. The protection rating IP 55 and NEMA 12 make the system suitable even for demanding industrial environments.

The delivery scope includes the enclosure, door, rear door, base sheets, upper viewing door, keyboard drawer, and component shelf. All components are designed for direct mounting and use.

General
Modelwith top sight door, keyboard drawer and equipment floor
MaterialCasing, door, rear door, mounting panel, shelves: sheet steel, handles, decorative panels: plastic, door panels: aluminium, viewing window: single-pane safety glass
Surface protectionHousing and door: dip primed, externally powder-coated, textured lacquer
Basic colourRAL 7035
ColourHousing, door, decorative panels, shelves: RAL 7035, handle: RAL 7015, monitor panel, door centre section: RAL 7015
Scope of deliveryHousing, door, rear door, base plates, vision door, top, keyboard drawer, equipment base
Width600 mm
Height1.600 mm
Depth636 mm
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 12
Type rating according to UL 50EType 1, Type 12
Max. keyboard dimensions (WxHxD)480 x 70 x 260 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)386.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5366050, EAN: 4028177959422
