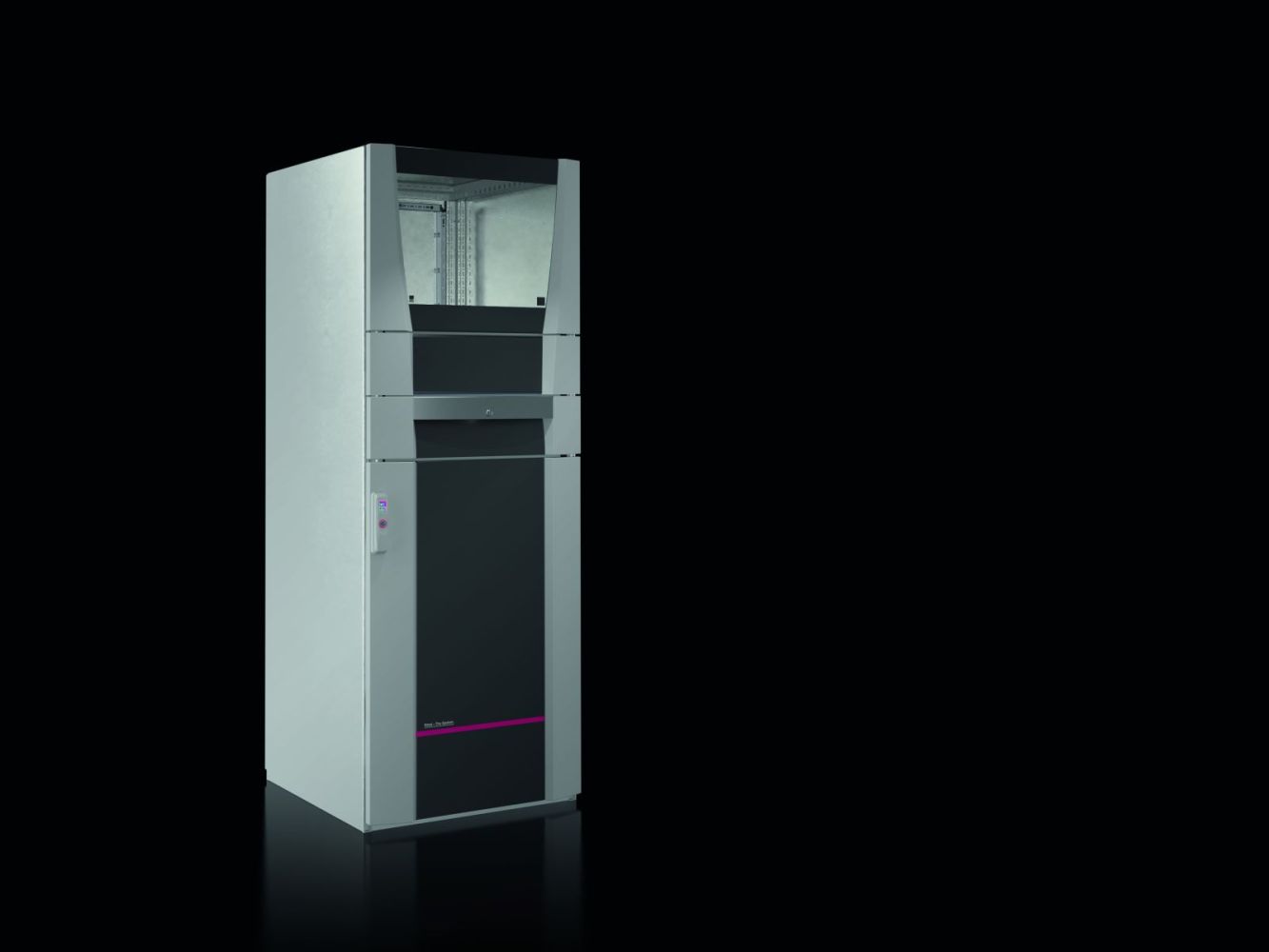

Rittal 5366350 PC enclosure system, W 600 mm, viewing door, drawer, component shelf

Your rating:
Average rating
product review for Rittal 5366350 PC enclosure system, W 600 mm, viewing door, drawer, component shelf
( 4.5 / 5 ) 2 ratings
Rittal 5366350
This image may differ from the desired article.
Rittal 5366350Rittal 5366350Rittal 5366350Rittal 5366350Rittal 5366350Rittal 5366350Rittal 5366350
1.649,91 EUR
( 1.963,39 EUR incl. VAT )
≈ £1,380.97  |  ≈ $1,813.25
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 5366350 PC enclosure system, W 600 mm, viewing door, drawer, component shelf
Datasheet:file_download Download
Lieske Part No.:1910628
Mfg Part No: 5366350
UPC/EAN: 4028177959439
Weight:100 kg
Type:PC 5366350

Product information for Rittal 5366350:

The Rittal PC enclosure system type 5366350 is a closed housing for the secure installation of PC components, including monitor, computer, and keyboard. It is designed for use in industrial or technical environments where protection against moisture, dust, dirt, temperature fluctuations, and unauthorized access is required. The housing is made of sheet steel and offers a robust, durable construction with external dimensions of 600 mm width, 1,600 mm height, and 636 mm depth. The surface is dip-primed and externally powder-coated with a textured lacquer, providing high mechanical and chemical resistance. The base color of the housing, door, decor trim panels, and shelves is RAL 7035, while the handle, monitor panel, and central door section are in RAL 7015.

Applications
This enclosure system is suitable for use in production plants, machine controls, administrative areas with increased security requirements, or environments with a high risk of contamination. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water, making it suitable for outdoor use as well. The NEMA classification NEMA 12 and the Type rating according to UL 50E (Type 1 and Type 12) confirm its suitability for industrial applications with high environmental requirements.

Functions and Equipment in Detail
The system features a viewing door at the top, secured with an internal frame lock and hinged on the right. The door is equipped with vertical decor trim panels and a single-pane safety glass viewing window with a screen-printed mask. A small mounting panel, also hinged on the right and fastened from the inside on the left, allows for the installation of controls or displays. The keyboard drawer includes a keyboard pull-out and a mouse pad pull-out, and features a front trim panel with a handle bar serving as a wrist rest. The drawer is equipped with a locking mechanism compatible with the release mechanism for the top viewing door. The maximum keyboard dimensions are 480 mm (W) × 70 mm (H) × 260 mm (D). A fixed, perforated component shelf for the monitor is included, providing space for mounting components.

Technology Explained Simply
The construction of the enclosure system allows for individual interior fitting through a continuous system perforation on a 25 mm grid. Profiled mounting profiles are provided on the side panels and roof, enabling flexible installation of interior components. The base group consists of three-piece base sheets made of galvanized sheet steel, providing a stable foundation. The rear door is also hinged on the right and equipped with a bar lock and a double-bar lock insert, ensuring a secure closure. The bottom door features vertical ribs with a bar lock and double-bar lock insert, also hinged on the right.

Compatibility and Accessories
Various accessories are available for this enclosure system, extending its functionality. These include, for example, a pull-out component shelf for 600 mm, a stationary PC plinth, a drawer tray, a paper removal flap, comfort handles in various designs, plinth trim panels, adapter and mounting profiles, and partial mounting plates. These elements allow for application-specific adaptation of the enclosure system to meet specific requirements.

Mounting and Installation
Installation is carried out by securing to the predefined mounting profiles and mounting levels. The system perforation on a 25 mm grid enables flexible and space-saving interior fitting. The base sheets are already integrated and provide a stable foundation. The doors and mounting panels are pre-assembled and can be directly installed into the housing.

Operational Advantages
The enclosure system provides a high protection standard for the installed components. The integrated keyboard drawer and mounting panel enable user-friendly operation. The powder-coated surface ensures high corrosion resistance and easy cleaning. The combination of robust sheet steel housing and modern design makes the system a reliable solution for demanding operating conditions.

Scope of Delivery
The product is delivered with housing, door, rear door, base sheets, top viewing door, small mounting panel, keyboard drawer, and component shelf. The mentioned components are already integrated and allow for direct installation without additional parts.

General
ModelWith sight door on top, keyboard drawer, small mounting panel and equipment floor
MaterialCasing, door, rear door, mounting panel, shelves: sheet steel, handles, decorative panels: plastic, door panels: aluminium, viewing window: single-pane safety glass
Surface protectionHousing and doors: dip primed, externally powder-coated, textured lacquer, mounting field, shelf: powder-coated
Basic colourRAL 7035
ColourHousing, door, decorative panels, shelves: RAL 7035, handle: RAL 7015, monitor panel, door centre section: RAL 7015
Scope of deliveryHousing, door, rear door, base plates, vision door, top, mounting panel, small, keyboard drawer, equipment base
Width600 mm
Height1.600 mm
Depth636 mm
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 12
Type rating according to UL 50EType 1, Type 12
Max. keyboard dimensions (WxHxD)480 x 70 x 260 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)363.9 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5366350, EAN: 4028177959439

Questions & answers

What is the delivery time of Rittal 5366350 PC enclosure system, W 600 mm, viewing door, drawer, component shelf?

The article Rittal 5366350 PC enclosure system, W 600 mm, viewing door, drawer, component shelf is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5366350 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5366350 PC enclosure system, W 600 mm, viewing door, drawer, component shelf always at the best possible price. We can give you a discount of 2% on Rittal 5366350 PC enclosure system, W 600 mm, viewing door, drawer, component shelf if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
