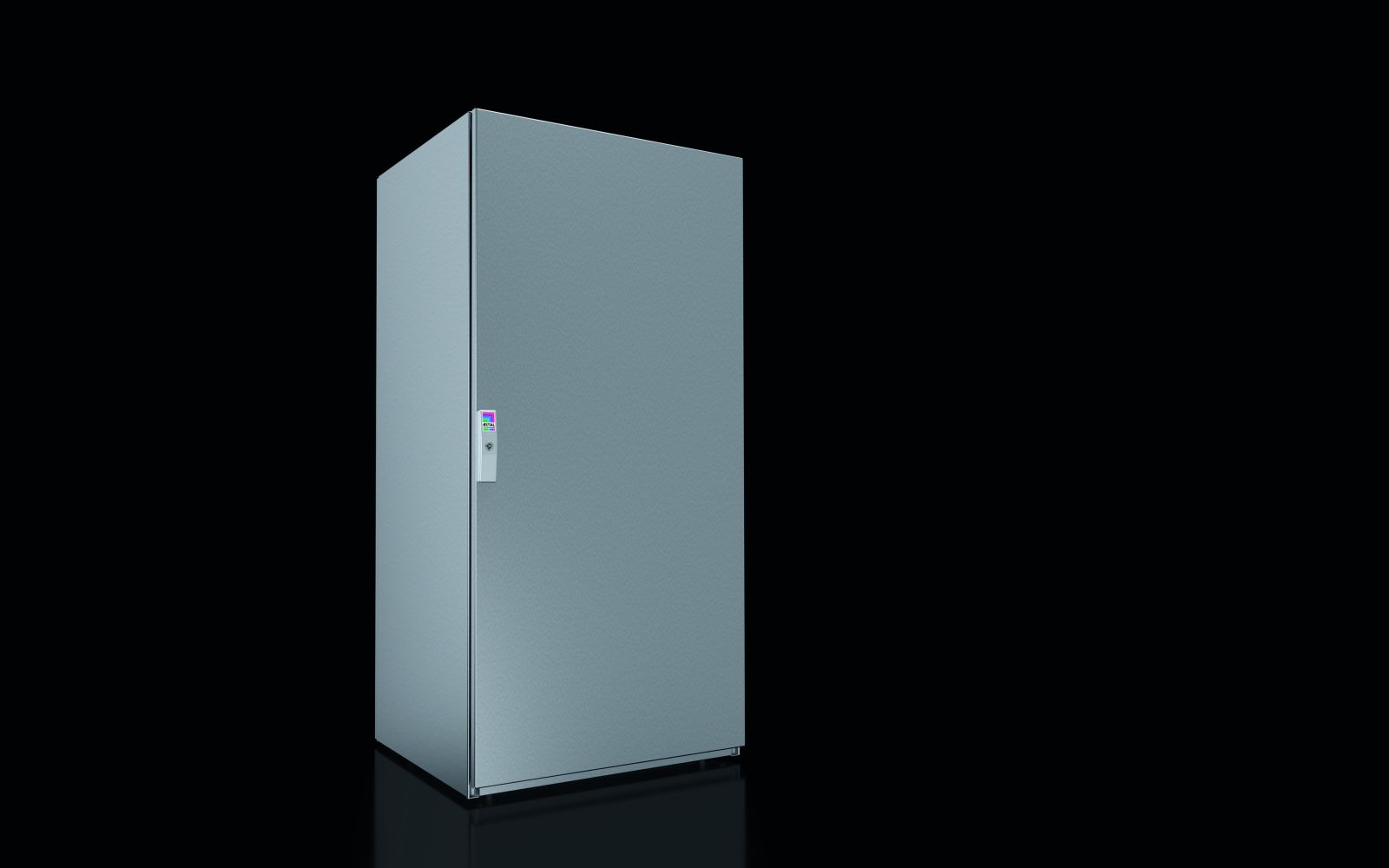

Rittal 5856600 SE system single enclosure 600x1200x500 mm stainless steel
|
1.873,58 EUR |
|
|
( 2.229,56 EUR incl. VAT ) ≈ £1,568.19 | ≈ $2,059.06 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1101882 |
| Mfg Part No: | 5856600 |
| UPC/EAN: | 4028177970298 |
| Weight: | 73.012 kg |
| Type: | SE 5856600 |
Product information for Rittal 5856600:
Applications
The enclosure is suitable for use in industrial plants, process automation, or environments with increased mechanical stress. The choice of stainless steel 1.4301 ensures high corrosion resistance, particularly in humid or aggressive environments. The protection rating IP 55 according to EN 60 529 protects against dust and splashing water, allowing the enclosure to be used outdoors or in production halls with high cleanliness requirements. Certifications according to NEMA 3R and NEMA 12, as well as type ratings according to UL 50E (Type 1, 2, 3, 3R, 12), extend the application range to countries with corresponding normative requirements. The IK code IK10 guarantees high protection against mechanical impacts, such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure is made of stainless steel sheet with a wall thickness of 1.5 mm for the enclosure, rear panel, and base plates, while the door has a thickness of 2.0 mm. The surface of the enclosure, door, and rear panel is finished with a linear grind (grit 400), providing a uniform, easy-to-clean surface finish. The base plates are plain, and the mounting plate is galvanized. The mounting plate is C-flanged on the sides and depth-adjustable in 25 mm increments via integrated plastic glides and mounting rails, enabling flexible positioning of components. The rear panel is screwed and can be removed to facilitate access to the interior. The door features a PU foam seal, ensuring effective sealing.
Technology Explained Simply
The enclosure construction is designed for high mechanical stability and easy assembly. The side and roof panels are made from a single piece, eliminating the need for additional assembly work on the side panels. The integrated mounting levels in the enclosure profile enable space-saving system expansion. The mounting plate features a mounting grid, simplifying the positioning of components. The base plates are divided into three parts, removable, and replaceable, allowing flexible adaptation to different installation situations. The door can be opened tool-free to 180°, improving access to the interior. The hinges are equipped with screwed-on stops and non-removable hinge pins, ensuring secure and durable assembly.
Compatibility and Accessories
The enclosure is fully compatible with the baying system VX25, allowing integration into existing enclosure installations. Suitable accessories include, among others, transport eyes made of stainless steel 1.4301, system chassis, mounting rails 23 x 23 mm, comfort handles, lock inserts, mounting brackets for internal and external mounting levels, 180° hinges, door latches for escape routes, and partial mounting plates. These components enable individual adaptation of the enclosure to specific requirements.
Assembly and Installation
Assembly is performed via the integrated mounting levels and the mounting plate. The mounting rails are included in the delivery and enable quick and secure fastening of components. The base plates are pre-installed and can be replaced if necessary. The door is tool-free openable to 180°, facilitating access to the interior. The mounting plate is depth-adjustable in 25 mm increments, enabling flexible positioning of components.
Operational Advantages
The enclosure offers high mechanical stability, corrosion resistance, and high protection against dust, splashing water, and mechanical impacts. The integrated mounting plate and mounting rails simplify the installation of components. The removable rear panel and 180° door opening improve access to the interior. Compatibility with the VX25 system enables flexible expansion and integration into existing installations. The use of stainless steel 1.4301 ensures long service life and low maintenance requirements. Due to the material hardness, it is recommended to use the internal hexagon sheet screw 2486.400 for internal assembly to avoid damage.
| General | |
| Material | Housing: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, Door: stainless steel 1.4301 (AISI 304), 2.0 mm, outside brushed finish, Rear panel: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, Base plates: stainless steel 1.4301 (AISI 304), 1.5 mm, Mounting plate: sheet steel, 3.0 mm |
| Surface protection | Housing, door and rear panel: brushed finish, grain 400, base plates: plain, mounting plate: galvanised |
| Scope of delivery | Housing top and sides closed, door(s), for single-door cabinets door hinge on right, changeable to left, rear panel, removable, mounting plate, base plates, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 600 mm |
| Height | 1.200 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 499 mm x 1.096 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Note | Due to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 248,94 |
