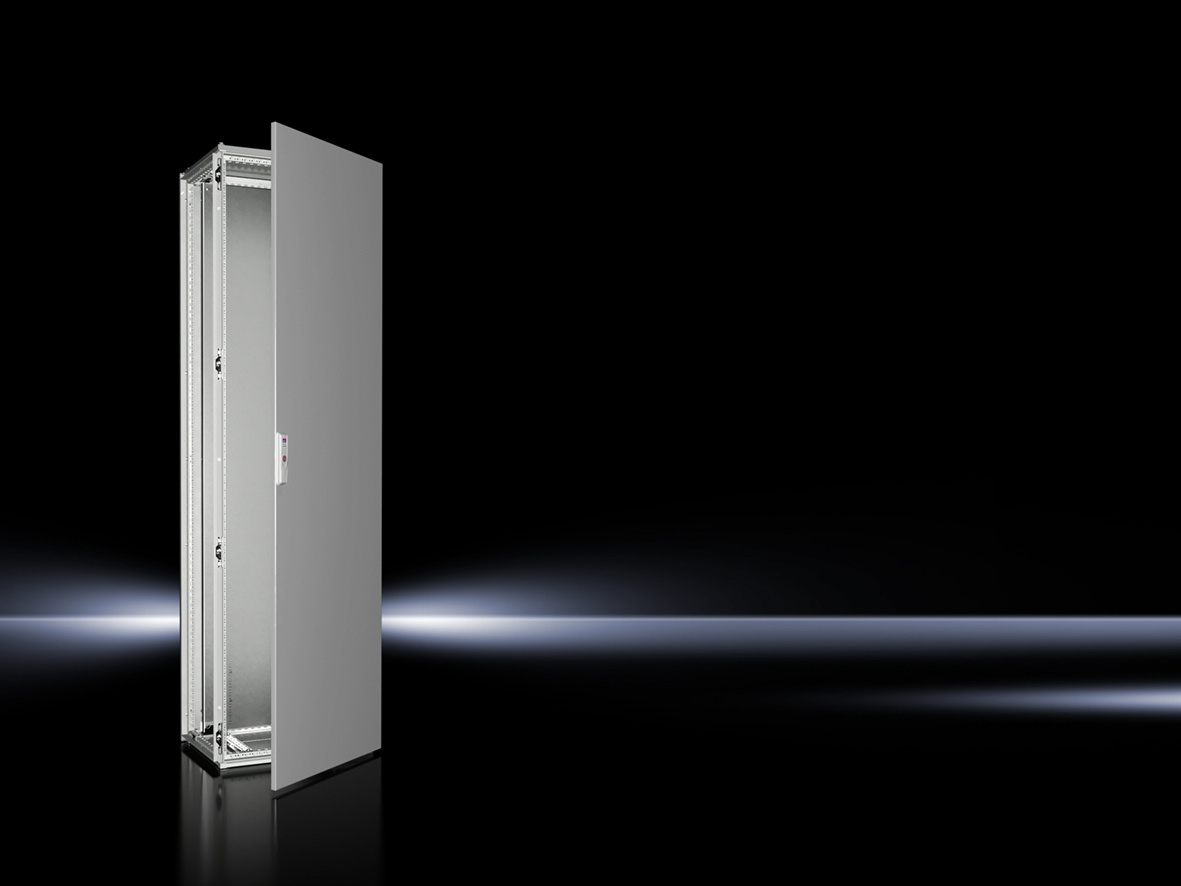

Rittal 8604000 VX bayed enclosure system, 1-door, W x H x D: 600x2000x400 mm,
|
543,13 EUR |
|
|
( 646,32 EUR incl. VAT ) ≈ £454.60 | ≈ $596.90 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440949 |
| Mfg Part No: | 8604000 |
| UPC/EAN: | 4028177813717 |
| Weight: | 95.4 kg |
| Type: | VX 8604.000 |
Product information for Rittal 8604000:
Applications
This enclosure system is suitable for use in production plants, automation technology, machine building and other industrial applications where a robust and flexible enclosure solution is required. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for use in damp or dusty environments. Additionally, the device meets protection ratings NEMA 1 and NEMA 12 as well as Type ratings Type 1 and Type 12 according to UL 50E, confirming its suitability for indoor and light industrial environments. The IK code IK10 indicates high mechanical resistance against mechanical impacts.
Functions and Equipment in Detail
The enclosure system includes an enclosure frame made of sheet steel with a wall thickness of 1.5 mm, a door made of 2.0 mm sheet steel, a roof plate, a rear panel, split base plates and a mounting plate made of 3.0 mm sheet steel. The door is fitted with a foamed PU foam seal and features a four-point locking rod lock with double bar insert according to DIN 43668. The door hinges are factory-mounted on the right side but can be repositioned to the left. The door opening is standard 130° and can be toollessly extended to 180°. The clearance height is 17 mm.
Technology Explained Simply
The surface of the enclosure frame is dip-primed, while the door, roof and rear panel are dip-primed and externally powder-coated with a textured lacquer. The mounting plate and base plates are galvanized, providing an additional corrosion protection layer. The color of the enclosure system is RAL 7035. The mounting plate is side C-bent and depth-adjustable in 25 mm increments via integrated plastic gliding pieces and reusable mounting rails. The rear panel, roof plate and base plates are conductively connected to the frame, enabling automatic equipotential bonding according to DIN 62 208. The mounting plates are equipped with a mounting grid to simplify component positioning.
Compatibility and Accessories
Various accessories are compatible with the enclosure system, meeting individual requirements for mounting and operation. These include levelling feet M12 with an adjustment height of 18–43 mm, transport eyes, dust protection strips, mounting plate spacers, SM TFT/monitor holders with VESA connection, C-profile rails, cable entry ferrules in various diameters, multi-locking systems for padlocks, circuit diagram pockets, an AS Multitool, system chassis in various dimensions, comfort handles, and screwable side panels for height 2000 mm and depth 400 mm.
Mounting and Installation
Mounting is performed via the integrated mounting levels and the 25 mm hole grid. The mounting plates are depth-adjustable, allowing flexible adaptation to different components. The base plates are split and removable, enabling easy cleaning and replacement. The rear panel and roof plate are removable and secured with screws. Mounting is done using integrated blind rivet nuts M6, enabling protection-rated fastening of fittings.
Advantages in Operation
The enclosure system offers high mechanical stability and a robust construction designed for industrial use. The integrated mounting levels and 25 mm grid simplify installation and maintenance. The conductive connection of flat parts to the frame ensures secure equipotential bonding. The tool-free door opening extension and replaceable base plates increase operational flexibility. The protection rating IP 55 and mechanical resistance IK10 ensure reliable performance even under demanding conditions.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 600 mm |
| Height | 2.000 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 499 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 275.8 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
