Rittal 8618020 VX viewing door, W x H: 600x2000 mm

Your rating:
Average rating
product review for Rittal 8618020 VX viewing door, W x H: 600x2000 mm
( 4.4 / 5 ) 13 ratings
Rittal 8618020

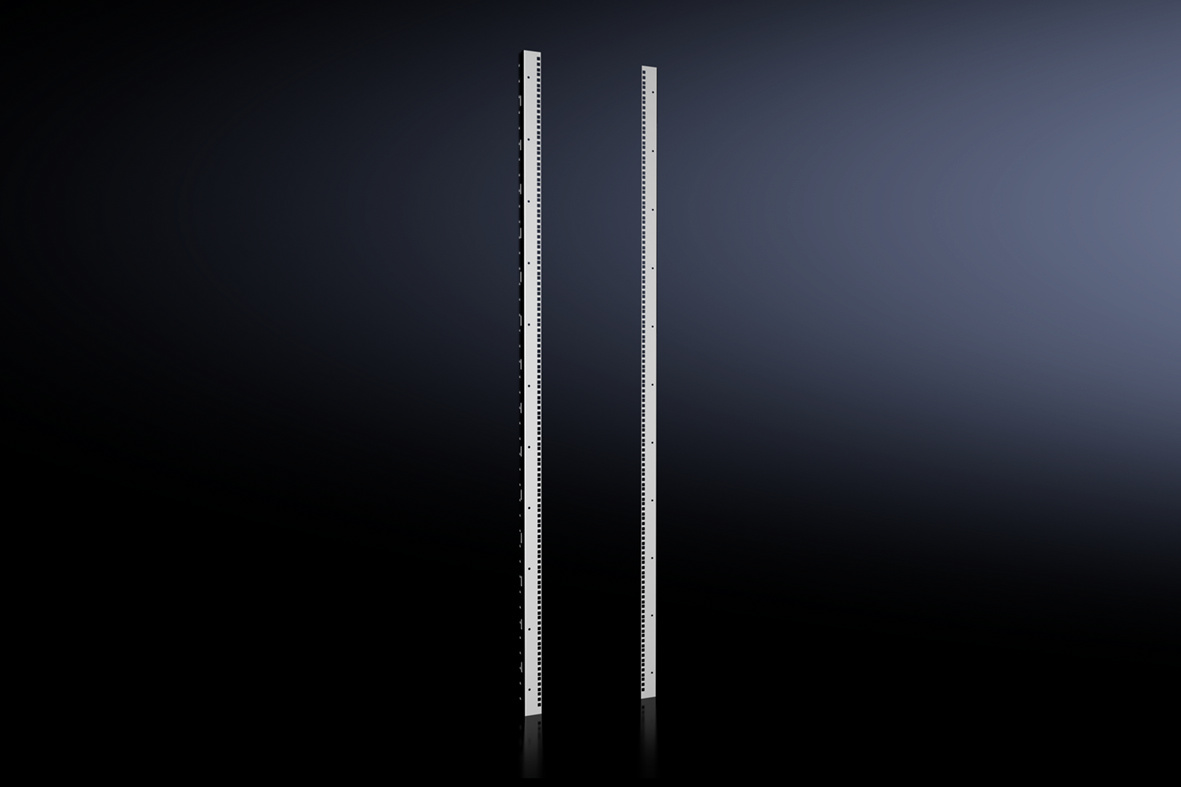

This image may differ from the desired article.
Rittal 8618020Rittal 8618020Rittal 8618020
445,51 EUR
( 530,16 EUR incl. VAT )
≈ £372.89  |  ≈ $489.62
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 8618020 VX viewing door, W x H: 600x2000 mm
Datasheet:file_download Download
Lieske Part No.:1440914
Mfg Part No: 8618020
UPC/EAN: 4028177921054
Weight:14.2 kg
Type:VX 8618.020

Product information for Rittal 8618020:

The Rittal VX 8618.020 is a viewing door for enclosures of type VX, designed as a replacement for a sheet metal door or rear panel. It enables visual inspection of the installed components without having to open the enclosure. The door is specifically designed for enclosures with a width of 600 mm and a height of 2,000 mm, thus fitting standard VX enclosures of these dimensions. The construction from aluminium extruded profile ensures high mechanical stability and low weight, facilitating easy installation. The viewing pane is made of single-glazed safety glass with a thickness of 3 mm, ensuring safe observation of internal components without compromising the protective function of the enclosure.

Applications
The viewing door is used in industrial plants where continuous monitoring of electrical or electronic components is required, for example in automation systems, control installations, or in manufacturing industry. It is particularly suitable for environments where maintenance and servicing of devices can be carried out without fully opening the enclosure. Use in outdoor areas is limited due to the protection class IP 55, as this class provides dust and splash water protection but does not protect against prolonged water exposure or condensation. The IK08 rating ensures high mechanical protection against impact, making the door suitable for locations with increased mechanical stress.

Functions and Equipment in Detail
The door is supplied with a rod lock with double-bar lock insert, ensuring secure and reliable locking. The four 180° hinges allow full opening of the door, facilitating access to the components behind it. The powder-coated surface in RAL 7035 provides a robust and durable coating, resistant to corrosion and mechanical stress. The viewing pane features an internally printed mask in RAL 9005, enhancing the visual perception of internal components and ensuring uniform colour design.

Technology Explained Simply
The protection class IP 55 according to IEC 60 529 means that the door is dust-tight and protected against splashing water from any direction. This makes it suitable for indoor use and partially for outdoor applications, provided there is no prolonged moisture or direct sunlight. The IK08 code guarantees protection against mechanical impacts, such as shocks or impacts with tools, which is advantageous in industrial environments. The type rating according to UL 50E (Type 1 and Type 12) confirms suitability for dry indoor spaces as well as environments with light contamination, with Type 12 additionally offering protection against splashing water.

Compatibility and Accessories
The viewing door is specifically designed for VX enclosures with dimensions of 600 mm width and 2,000 mm height. Compatible accessories include the VX lock part, which is used for secure attachment of the door to the rear panel of the enclosure. Combining it with other VX accessories allows flexible adaptation to different mounting requirements.

Installation and Mounting
Mounting is done in place of a standard sheet metal door or rear panel. The pre-fabricated hinges and rod lock simplify installation, with precise attachment to the enclosure frame ensured by designated mounting points. When used as a replacement for the rear panel, the use of special lock parts for frame 8618.110 is required to ensure secure locking. Installation does not require special tools, although adherence to the manufacturer’s mounting instructions is recommended to ensure proper function.

Operational Advantages
The viewing door enables quick visual inspection of installed components, accelerating maintenance and servicing tasks. The mechanical stability of the aluminium frame and the robust coating ensure long service life, even under industrial conditions. The integrated safety glass viewing pane provides clear visibility without compromising the protective function of the enclosure. The use of 180° hinges and a secure rod lock ensures reliable and safe operation in daily use.

General
MaterialFrame: aluminium extruded profile, viewing panel: single-pane safety glass, 3 mm
Surface protectionPowder-coated
ColourFrame: RAL 7035, viewing window (internally printed mask): RAL 9005
Scope of deliveryVision door, bar lock with double-bar insert, 180° hinges (4 pieces)
IK codeIK08
NoteWhen mounted instead of rear panel, locking parts for frame 8618.110 are required
Type rating according to UL 50EType 1, Type 12
Degree of protection IP according to IEC 60 529IP 55
Suitable forEnclosure type: VX, width: = 600 mm, height: = 2,000 mm


Product data sheet
Datasheet for Rittal 8618020, EAN: 4028177921054

Questions & answers

What is the delivery time of Rittal 8618020 VX viewing door, W x H: 600x2000 mm?

The article Rittal 8618020 VX viewing door, W x H: 600x2000 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8618020 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8618020 VX viewing door, W x H: 600x2000 mm always at the best possible price. We can give you a discount of 2% on Rittal 8618020 VX viewing door, W x H: 600x2000 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
