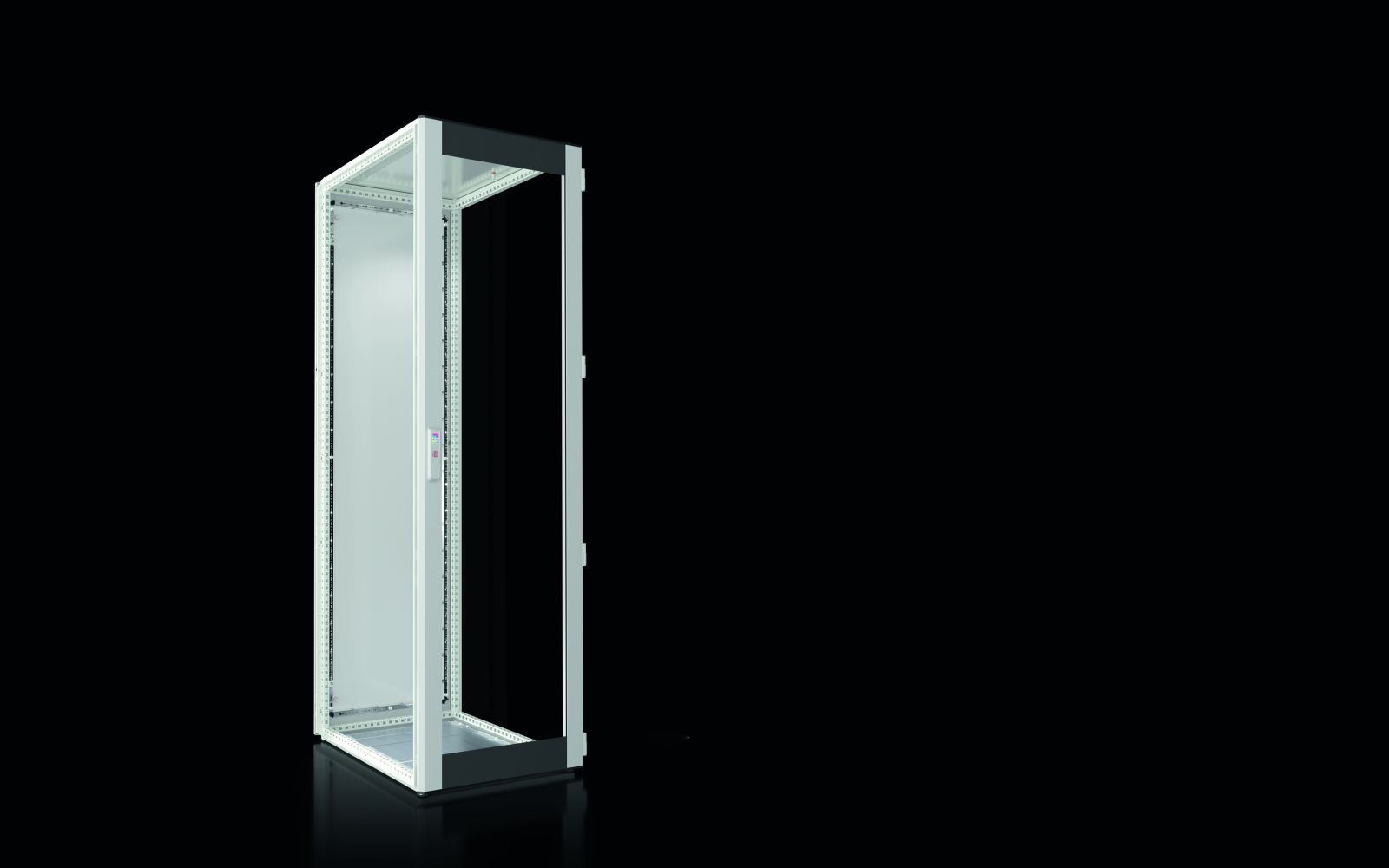

Rittal 8840130 VX bayed enclosure system 600x2000x800 mm viewing door
|
841,80 EUR |
|
|
( 1.001,74 EUR incl. VAT ) ≈ £704.59 | ≈ $925.14 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910678 |
| Mfg Part No: | 8840130 |
| UPC/EAN: | 4028177951396 |
| Weight: | 75.4 kg |
| Type: | VX 8840130 |
Product information for Rittal 8840130:
Applications
This enclosure system is designed for use in industrial environments where high mechanical load capacity and protection against dust and splashing water are required. It is suitable for installations in manufacturing, power supply, process engineering or automation technology. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from any direction, making it suitable for outdoor areas or humid indoor spaces. The protection ratings NEMA 1 and NEMA 12 as well as the type rating according to UL 50E (Type 1, Type 12) confirm suitability for dry and humid indoor environments as well as environments with slight contamination risk. The IK code IK08 indicates high mechanical strength against impact loads, making the enclosure system suitable for environments with increased mechanical stress.
Functions and Equipment in Detail
The enclosure system features an aluminium viewing door on the front side with an opening angle of 180°. The door is fitted with a foamed PU foam seal and secured by a four-point locking bar lock with double bar insert according to DIN 43668. The door hinges are reversible, and the hinges are equipped with non-removable hinge pins. The rear side is fitted with a sheet steel door, also equipped with a PU foam seal and an opening angle of 130°. This door can be toollessly extended to 180° and features a removable square tube frame with a 25 mm grid hole pattern as well as integrated hammerhead cutouts for cable strain relief. The door is also fitted with a four-point locking bar lock and double bar insert according to DIN 43668.
Technology Explained Simply
The enclosure system consists of a frame made of sheet steel with a wall thickness of 1.5 mm for the enclosure frame, roof and base plates. The viewing door consists of single-pane safety glass with a thickness of 3 mm, and the rear door is made of sheet steel with a wall thickness of 2.0 mm. The surface of the enclosure frame is dip-primed, while the door, roof and rear wall are additionally externally powder-coated using a textured lacquer. The colour corresponds to RAL 7035. The base plates are triple-divided, removable and replaceable, enabling easy cleaning and maintenance. The roof plate is removable and fitted with roof mounting screws M12. The rear door, roof and base plates are electrically connected to the frame, ensuring automatic equipotential bonding according to DIN 62 208 and meeting the requirements for mounting earthing straps. A QR code is printed on the roof, rear door and type plate to enable unique identification and easy access to product information as well as traceability of individual parts.
Compatibility and Accessories
The enclosure system is compatible with various accessories that meet individual requirements for internal equipment. These include mounting ledges, levelling feet, mounting plate spacers, C-profile rails, cable entry ferrules in various diameters, circuit diagram pockets, SM TFT/monitor holders, VX system chassis in various sizes, VX side panels, VX comfort handles for various locking systems, and the AS Multitool AX/VX. These accessories enable flexible and application-specific equipment of the enclosure system.
Mounting and Installation
Mounting is performed via the integrated base frame with base reinforcement, enabling fastening to the floor. The frame profiles are accessible from inside and outside, allowing space-saving and quick internal equipment. The entire hole pattern in a 25 mm grid supports the use of cage nuts and metric screws up to M8. The enclosure construction is load-bearing up to 15,000 N, ensuring high mechanical stability. The bayable construction enables flexible arrangement of multiple enclosures in a row.
Operational Advantages
The enclosure system offers high mechanical stability, reliable protection rating and flexible internal equipment. The integrated sealing and conductive connection of components ensure high functionality and safety. Unique identification via QR codes simplifies maintenance and traceability. The toolless extension of the rear door to 180° and the replaceability of the base plates increase maintainability. The use of sheet steel and safety glass ensures long service life and high safety in operation.
| General | |
| Material | Cabinet frame: sheet steel, 1.5 mm, Roof: sheet steel, 1.5 mm, Vision door: single-pane safety glass, 3 mm, Rear door: sheet steel, 2.0 mm, Floor plates: sheet steel, 1.5 mm |
| Surface protection | cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet frame, aluminium vision door front (180°), steel sheet door rear (130°), front and rear lock: 3 mm double bar, roof sheet, base sheet |
| Width | 600 mm |
| Height | 2.000 mm |
| Depth | 800 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK08 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 185.8 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8840130 VX bayed enclosure system 600x2000x800 mm viewing door?
The article Rittal 8840130 VX bayed enclosure system 600x2000x800 mm viewing door is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8840130 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8840130 VX bayed enclosure system 600x2000x800 mm viewing door always at the best possible price. We can give you a discount of 2% on Rittal 8840130 VX bayed enclosure system 600x2000x800 mm viewing door if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
