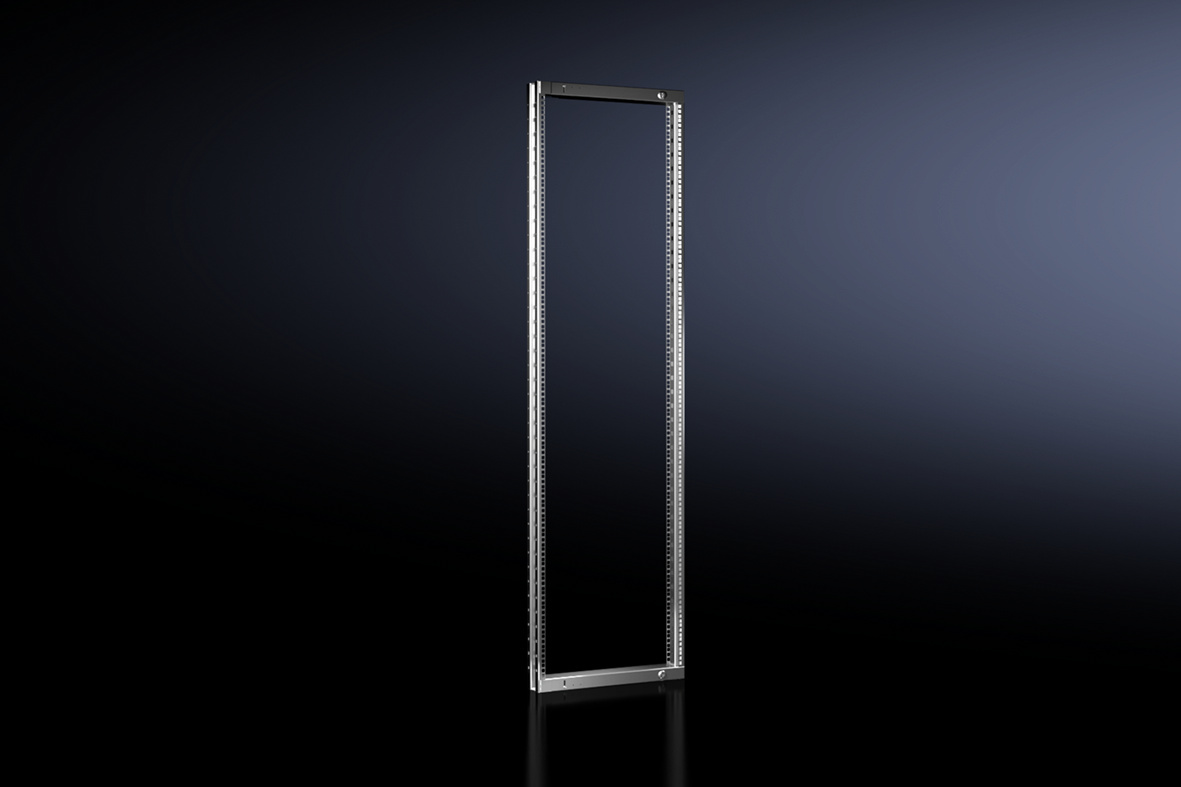

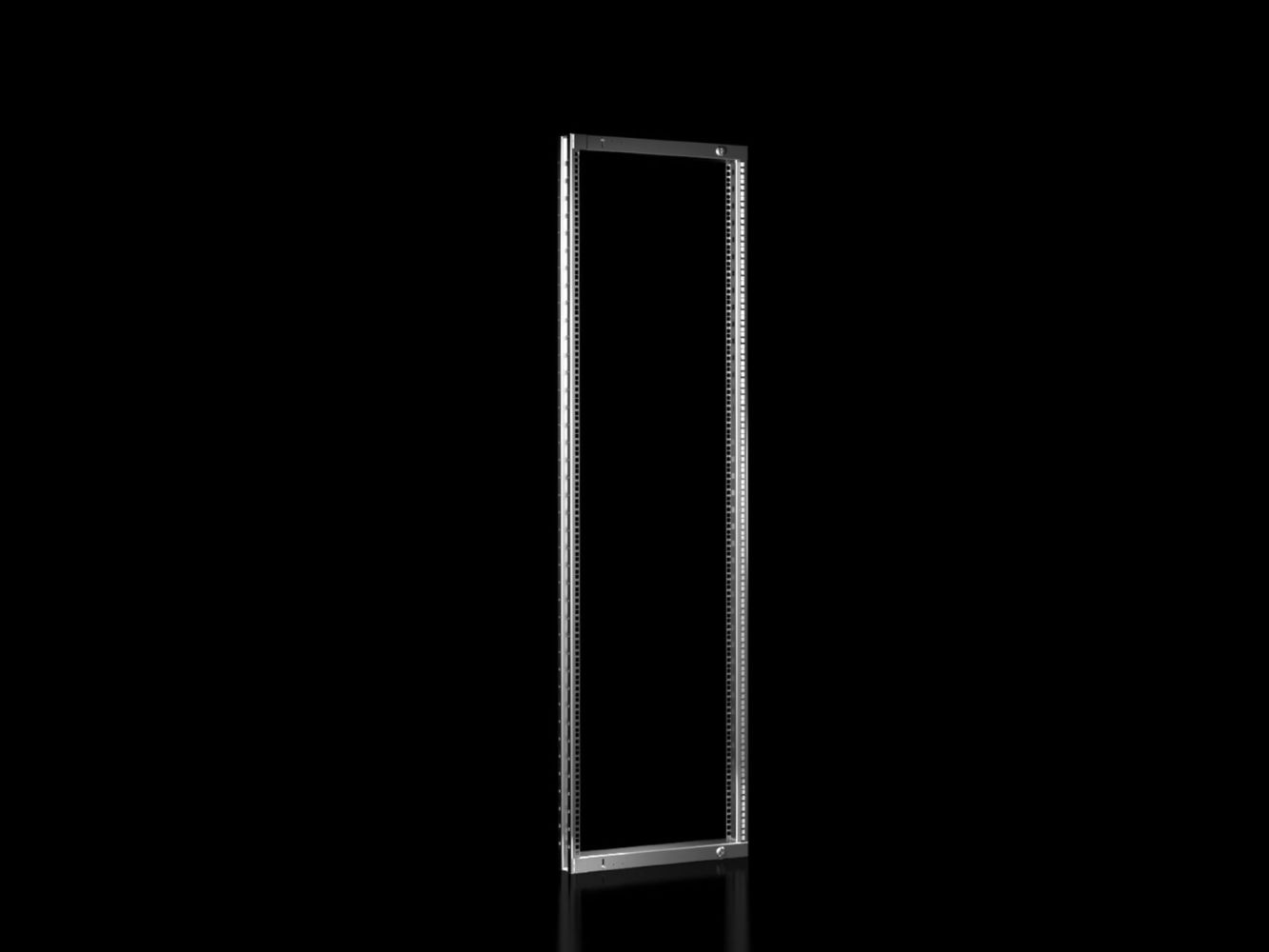

Rittal 8619013 VX swing frame, large, without trim panel, for W: 600 mm

Your rating:
Average rating
product review for Rittal 8619013 VX swing frame, large, without trim panel, for W: 600 mm
( 4.4 / 5 ) 10 ratings
Rittal 8619013
This image may differ from the desired article.
Rittal 8619013Rittal 8619013Rittal 8619013
305,21 EUR
( 363,20 EUR incl. VAT )
≈ £255.46  |  ≈ $335.43
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8619013 VX swing frame, large, without trim panel, for W: 600 mm
Datasheet:file_download Download
Lieske Part No.:1441943
Mfg Part No: 8619013
UPC/EAN: 4028177920439
Weight:12.917 kg
Type:VX 8619.013

Product information for Rittal 8619013:

The Rittal VX 8619.013 is a swing frame, large, without trim panel, specifically designed for mounting 482.6 mm (48,3 cm ( 19 inch ))-installation components in VX enclosures. It is designed for enclosures with an exact width of 600 mm and a minimum enclosure height of 2000 mm, providing space for 40 height units (HE). The frame allows access to the mounted devices by swinging, thereby facilitating maintenance and replacement operations. The version without a trim panel is suitable for applications where an open front or a custom cover is intended.

Applications

The swing frame is used in industrial and technical installations where flexible and accessible mounting of network or control components is required. It is particularly suitable for VX system enclosures with a width of 600 mm and a minimum height of 2000 mm. Typical use cases include process automation, building automation, or IT infrastructures, where secure and accessible installation of servers, switches, or other 48,3 cm ( 19 inch ) devices is necessary.

Functions and Equipment in Detail

The frame is made of sheet steel and is galvanized in the frame area to prevent corrosion. The surface of the trim panel (if present) is painted and finished in the color RAL 7035, which corresponds to a gray, neutral tone. The delivery includes the lock insert, a 130° hinge, and the material for securing to the mounting kit. Installation is carried out on a mounting kit, and depending on the expansion situation, system chassis 23 x 64 mm are required to securely fasten the frame.

Technology Explained Simply

The swing frame allows the mounted devices to be accessed by rotating around the hinges without having to open the entire enclosure. The 130° hinge provides a sufficiently large opening angle to make the devices fully accessible. The integrated lock insert ensures that the frame is securely fixed when closed.

Compatibility and Accessories

The swing frame is specifically designed for VX enclosures with a width of 600 mm. It is compatible with the corresponding VX mounting kits for large swing frames, available in widths of 600 mm, 800 mm, and 1200 mm. For installation, system chassis 23 x 64 mm in various widths (400 mm, 500 mm, 600 mm, 800 mm) are required, depending on the expansion situation.

Installation and Mounting

Installation is carried out on an already installed mounting kit within the enclosure. Fastening is done using the supplied mounting materials to the system chassis 23 x 64 mm. The installation instructions in the datasheet indicate that the appropriate chassis are required depending on the expansion configuration.

Operational Advantages

The swing frame provides secure and accessible access to the mounted devices without having to open the entire enclosure. This reduces installation and maintenance time and increases efficiency during servicing. The use of galvanized sheet steel ensures high mechanical stability and corrosion resistance. The version without a trim panel offers flexibility in designing the front of the enclosure, for example for custom covers or integrated control panels.

General
ModelWithout bezel
Materialsteel sheet
Surface protectionFrame: galvanised, faceplate: painted
ColourShutter: RAL 7035
Scope of deliveryIncluding closure system, 130° hinge, material for mounting on installation kit
Mounting noteDepending on the expansion situation, system chassis 23 x 64 mm are required
NoteTo lock the open swivel frame, the swivel frame locking mechanism is required. For further expansion options, see "Technology in detail"
Suitable forWidth: = 600 mm, Height: ≥ 2,000 mm
Height units40 HE


Product data sheet
Datasheet for Rittal 8619013, EAN: 4028177920439

Questions & answers

What is the delivery time of Rittal 8619013 VX swing frame, large, without trim panel, for W: 600 mm?

The article Rittal 8619013 VX swing frame, large, without trim panel, for W: 600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619013 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8619013 VX swing frame, large, without trim panel, for W: 600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619013 VX swing frame, large, without trim panel, for W: 600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
