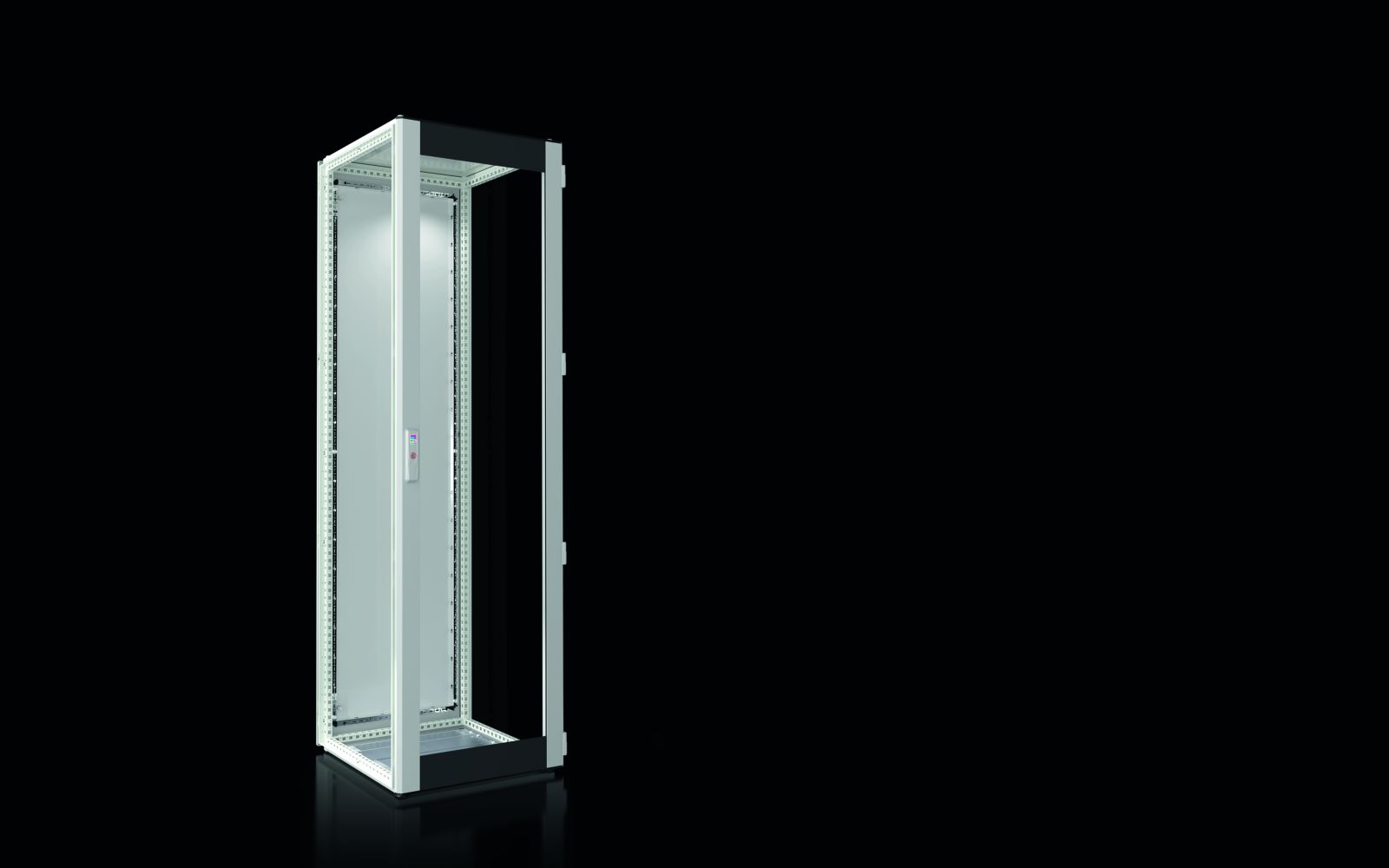

Rittal 8840120 VX bayed enclosure system 600x2000x600 mm viewing door
|
819,95 EUR |
|
|
( 975,74 EUR incl. VAT ) ≈ £686.30 | ≈ $901.13 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775581 |
| Mfg Part No: | 8840120 |
| UPC/EAN: | 4028177951402 |
| Weight: | 71 kg |
| Type: | VX 8840120 |
Product information for Rittal 8840120:
Applications
This enclosure system is designed for use in industrial environments where high mechanical load capacity and protection against dust and splashing water are required. It is suitable for use in factories, machine construction, process automation, and other areas where electrical components, controls, or network units need to be protected. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from all directions, making it suitable for outdoor use as well. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for dry indoor environments and environments with minor dust and splashing water exposure. The IK code IK08 indicates mechanical resistance against impact forces, which is relevant for use in industrial facilities.
Functions and Equipment in Detail
The enclosure system features an aluminium viewing door on the front side, allowing an opening angle of 180° and equipped with a 3 mm double-latch lock. The door is fitted with a foamed PU foam seal to ensure a tight seal. The hinges are interchangeable and fitted with non-removable hinge pins. The rear side is equipped with a steel sheet door, also fitted with a PU foam seal and a 3 mm double-latch lock. The door opens up to 130° and can be toollessly extended to 180°. The roof plate is removable and fitted with roof mounting screws M12. The base plates are triple-divided, removable, and replaceable, enabling flexible mounting and maintenance. The entire construction is equipped with an integrated blind rivet nut M6 system, allowing protection-rated fastening of fittings.
Technology Explained Simply
The construction of the enclosure system is based on a symmetrical profile frame made of steel sheet with a hole pattern in a 25 mm grid, enabling flexible mounting of internal units. The horizontal profiles feature an additional groove above the seal, ensuring a secure closure. The frame profiles are rounded at all edges and offer two mounting planes, accessible from inside and outside. The entire hole pattern allows the use of cage nuts and metric screws up to M8. The enclosure system is loadable up to 15,000 N, ensuring high mechanical stability. The electrical conductivity between the rear door, roof, base plates, and frame ensures automatic equipotential bonding according to DIN 62 208. A QR code is affixed to the roof, rear door, and type plate to enable unique identification and easy access to product information and documentation.
Compatibility and Accessories
The enclosure system is compatible with various accessories that meet individual requirements for mounting and operation. These include levelling feet M12 with an adjustment height of 18–43 mm, cable routing spaces, mounting plate spacers, C-profile rails, mounting brackets, cable entry bushings in various diameters, circuit diagram pockets, multitools, system chassis, side panels, comfort handles for various locking systems, and support rails. These components enable flexible and application-specific equipping of the enclosure system.
Mounting and Installation
Mounting is performed using the integrated blind rivet nut system M6, which enables secure and protection-rated fastening of fittings. The base plates are removable and can be replaced as needed. The roof and base plates are removable, enabling easy mounting and maintenance. The entire construction is designed for floor mounting, with the base plate providing an integrated floor reinforcement.
Operational Advantages
The enclosure system offers high mechanical stability, secure sealing against dust and splashing water, and flexible mounting via the 25 mm hole pattern. The removable doors and roof facilitate maintenance and component replacement. The integrated electrical conductivity between components ensures safe equipotential bonding. The use of textured lacquer in RAL 7035 ensures a robust and durable surface. The QR codes enable quick and unique identification of the device and access to relevant documentation.
Scope of Delivery
The enclosure system is delivered with enclosure frame, aluminium viewing door front (180°), steel sheet door rear (130°), front and rear locks (3 mm double-latch), roof plate, and base plate.
| General | |
| Material | Cabinet frame: sheet steel, 1.5 mm, Roof: sheet steel, 1.5 mm, Vision door: single-pane safety glass, 3 mm, Rear door: sheet steel, 2.0 mm, Floor plates: sheet steel, 1.5 mm |
| Surface protection | cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet frame, aluminium vision door front (180°), steel sheet door rear (130°), front and rear lock: 3 mm double bar, roof sheet, base sheet |
| Width | 600 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK08 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 174.9 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8840120 VX bayed enclosure system 600x2000x600 mm viewing door?
The article Rittal 8840120 VX bayed enclosure system 600x2000x600 mm viewing door is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8840120 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8840120 VX bayed enclosure system 600x2000x600 mm viewing door always at the best possible price. We can give you a discount of 2% on Rittal 8840120 VX bayed enclosure system 600x2000x600 mm viewing door if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
