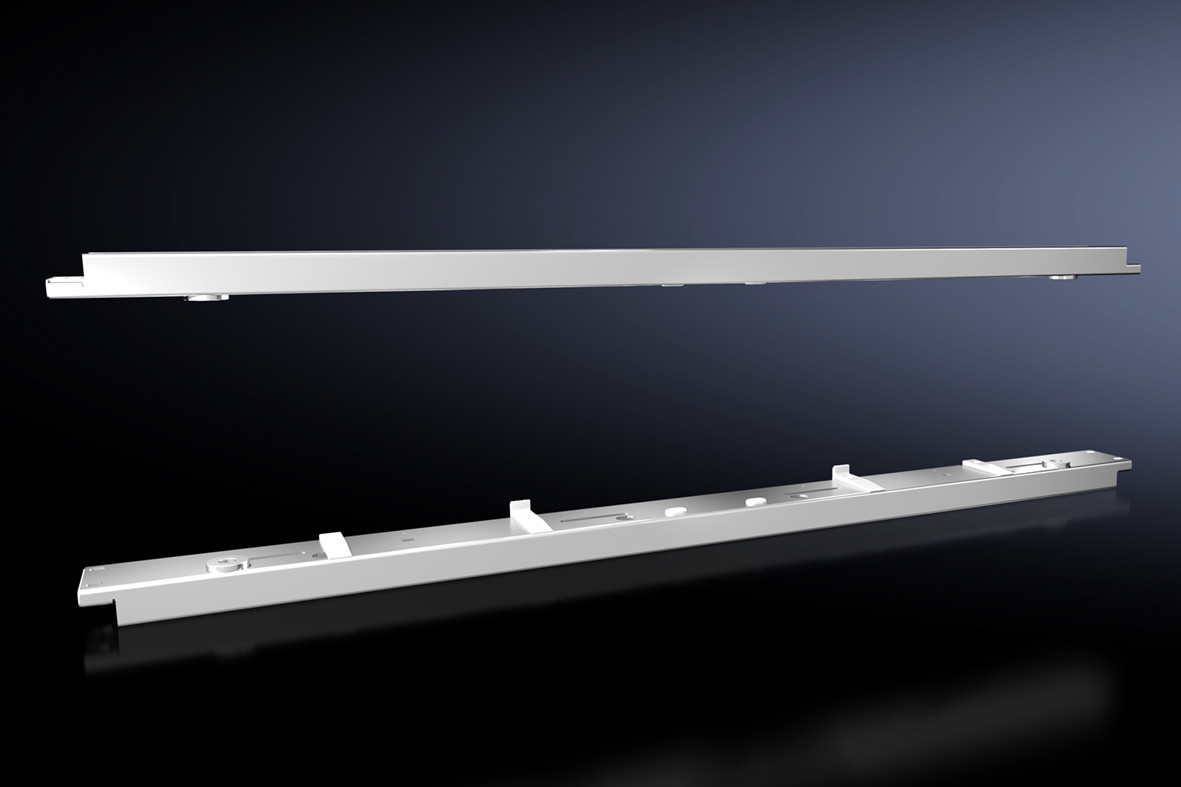

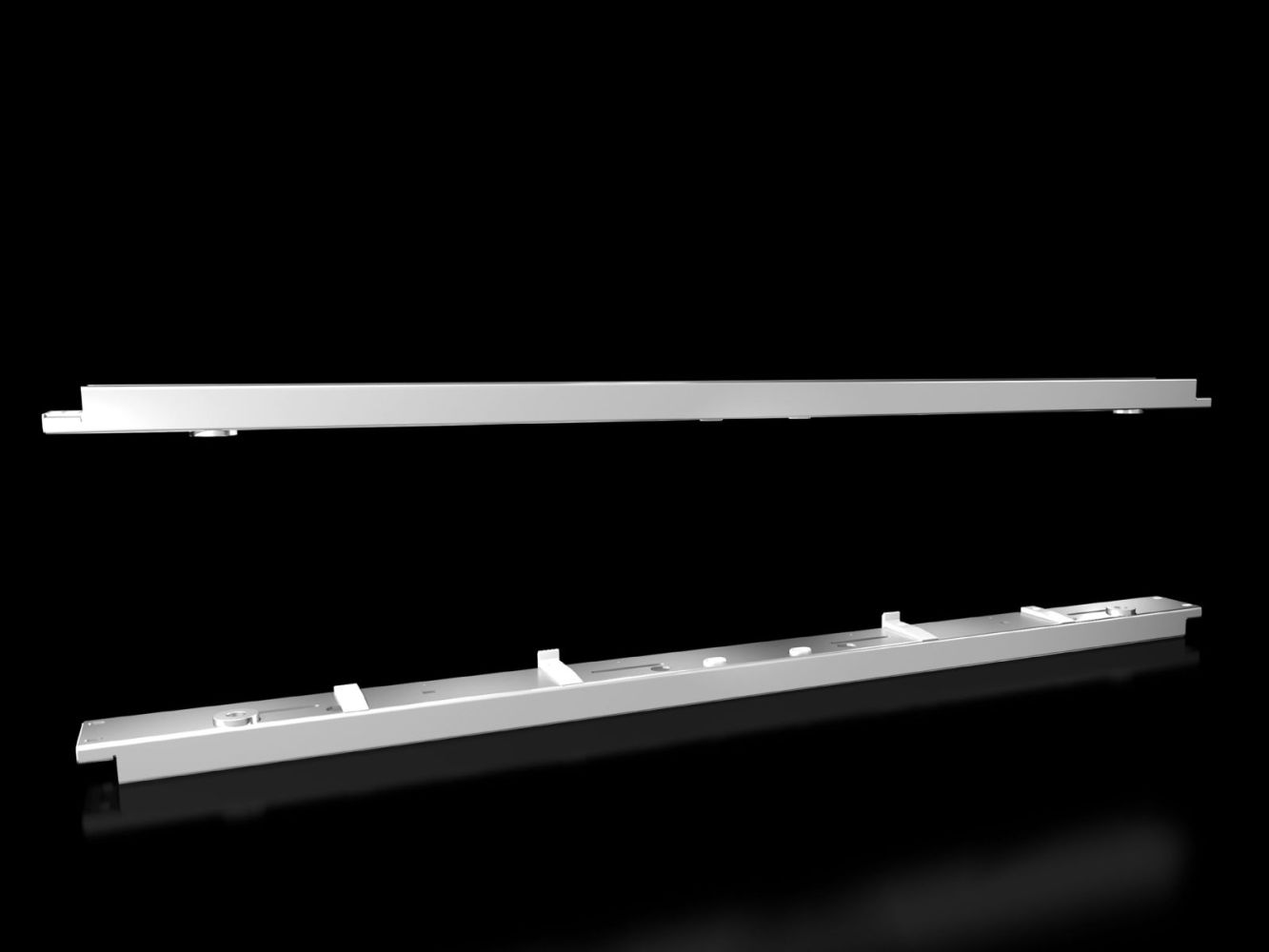

Rittal 8619042 VX mounting kit for swing frame, large, W: 1200 mm

Your rating:
Average rating
product review for Rittal 8619042 VX mounting kit for swing frame, large, W: 1200 mm
( 4.4 / 5 ) 18 ratings
Rittal 8619042
This image may differ from the desired article.
Rittal 8619042Rittal 8619042Rittal 8619042
-10% 80,50 EUR 89,80 EUR
( 95,80 EUR incl. VAT )
≈ £67.38  |  ≈ $88.47
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8619042 VX mounting kit for swing frame, large, W: 1200 mm
Datasheet:file_download Download
Lieske Part No.:1441930
Mfg Part No: 8619042
UPC/EAN: 4028177920309
Weight:6.76 kg
Type:VX 8619.042

Product information for Rittal 8619042:

The Rittal VX 8619.042 is a mounting kit for the swing frame, large, specifically designed for installation in enclosures with a width of 1,200 mm. It serves as a fixed mounting solution for the swing frame, ensuring its secure and stable installation in the enclosure. The mounting kit is made of sheet steel with a thickness of 3.0 mm, providing high mechanical strength and long-term stability under industrial conditions. The surface is painted and finished in the colour RAL 7035, offering good corrosion protection and visual harmony with other Rittal products.

Applications
The mounting kit is used in industrial enclosures, particularly in systems requiring flexible and secure mounting of swing frames. It is suitable for enclosures with a width of 1,200 mm and enables the integration of swing frames, which are typically used for mounting control panels, display units, or control devices. Its use in industrial electrical engineering and automation technology is typical, where robust and reliable mounting is required.

Functions and Equipment in DetailThe mounting kit is designed for two different mounting options: it can be mounted directly onto the enclosure profile when the swing frame is installed over the full enclosure height. Alternatively, it can be used in conjunction with a system chassis 23 x 64 mm to mount the swing frame at partial heights of the enclosure. This provides flexibility in planning and installing enclosure systems. The delivery includes mounting hardware required for installation.

Technology Explained SimplyThe static load capacity of the mounting kit is 1,500 N, meaning it can safely support a maximum static load of 150 kg. This specification is crucial for selecting the appropriate mounting solution to ensure that the mechanical load on the swing frame and the components mounted on it does not exceed the load capacity. The sheet steel material with a thickness of 3.0 mm ensures high strength and resistance to mechanical stresses, as encountered in industrial environments.

Compatibility and AccessoriesThe mounting kit is specifically designed for enclosures with a width of 1,200 mm. It is compatible with the Rittal swing frame, large, and can be used in conjunction with the system chassis 23 x 64 mm. As suitable accessories, a door position switch is offered, which can be used to monitor the door position in enclosures. This switch can be optionally installed to enhance the safety and functionality of the enclosure.

Mounting and InstallationInstallation is carried out either directly onto the enclosure profile when the swing frame is installed over the full enclosure height, or in conjunction with the system chassis 23 x 64 mm when partial-height mounting is desired. The included mounting hardware enables secure and easy installation.

Advantages in OperationThe mounting kit provides a stable and reliable mounting base for the swing frame, enhancing the safety and functionality of the mounted devices. The high static load capacity and robust material construction ensure a long service life and low maintenance. Compatibility with the system chassis 23 x 64 mm expands application possibilities and allows flexible adaptation to different enclosure configurations.

General
MaterialSheet steel, 3.0 mm
Surface protectionPainted
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Mounting optionsDirectly on cabinet profile for full-height installation, in combination with system chassis 23 x 64 mm for partial-height installation in cabinet height
Load capacity (static)1.500 N
Suitable forWidth: = 1.200 mm


Product data sheet
Datasheet for Rittal 8619042, EAN: 4028177920309

Questions & answers

What is the delivery time of Rittal 8619042 VX mounting kit for swing frame, large, W: 1200 mm?

The article Rittal 8619042 VX mounting kit for swing frame, large, W: 1200 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619042 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8619042 VX mounting kit for swing frame, large, W: 1200 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619042 VX mounting kit for swing frame, large, W: 1200 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
