Rittal 8619030 VX swing frame large, trim panel on both sides, W: 800 mm

Your rating:
Average rating
product review for Rittal 8619030 VX swing frame large, trim panel on both sides, W: 800 mm
( 4.1 / 5 ) 10 ratings
Rittal 8619030
This image may differ from the desired article.
Rittal 8619030Rittal 8619030Rittal 8619030
285,43 EUR
( 339,66 EUR incl. VAT )
≈ £238.90  |  ≈ $313.69
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 8619030 VX swing frame large, trim panel on both sides, W: 800 mm
Datasheet:file_download Download
Lieske Part No.:1441936
Mfg Part No: 8619030
UPC/EAN: 4028177920361
Weight:14.575 kg
Type:VX 8619.030

Product information for Rittal 8619030:

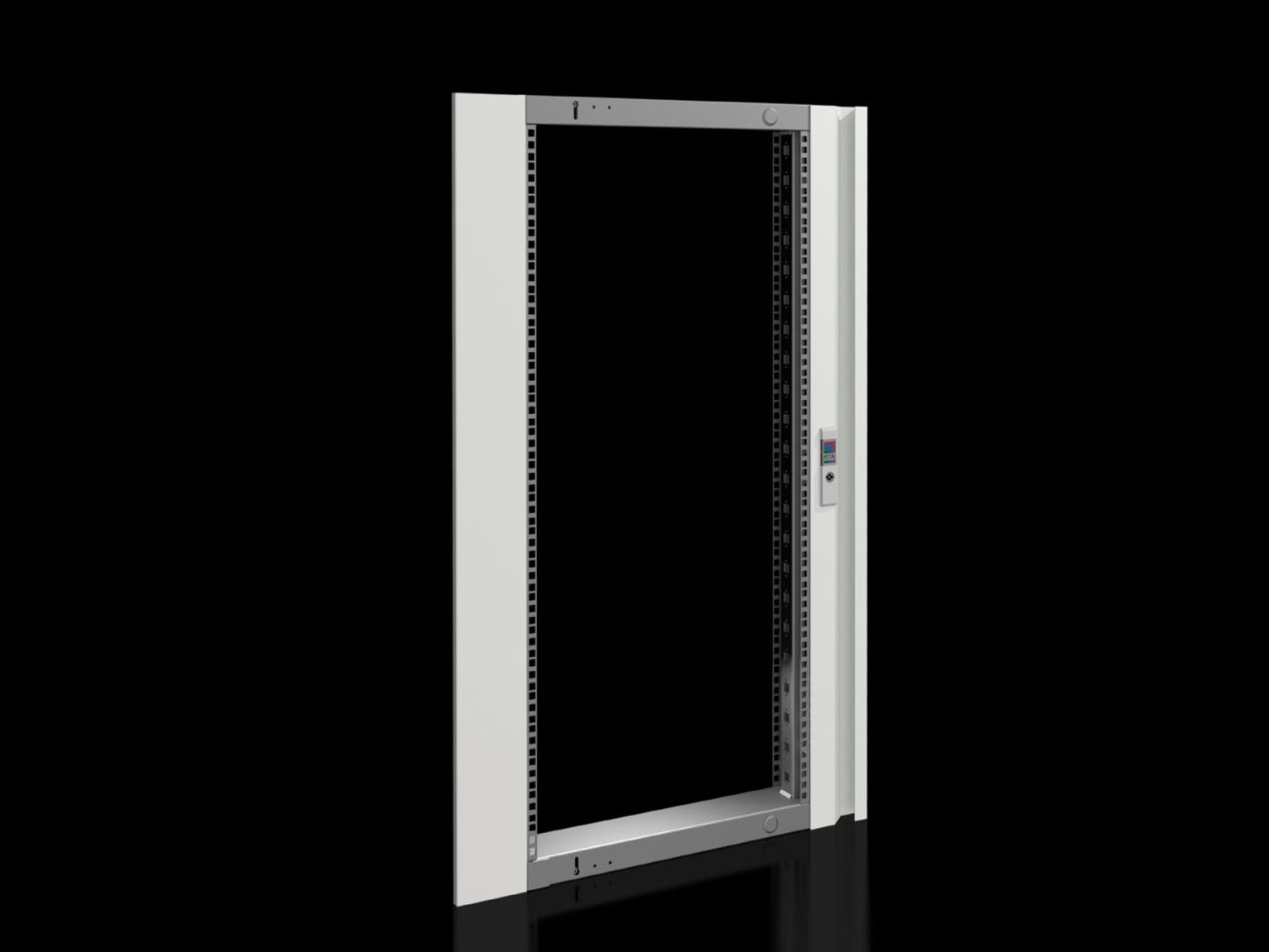

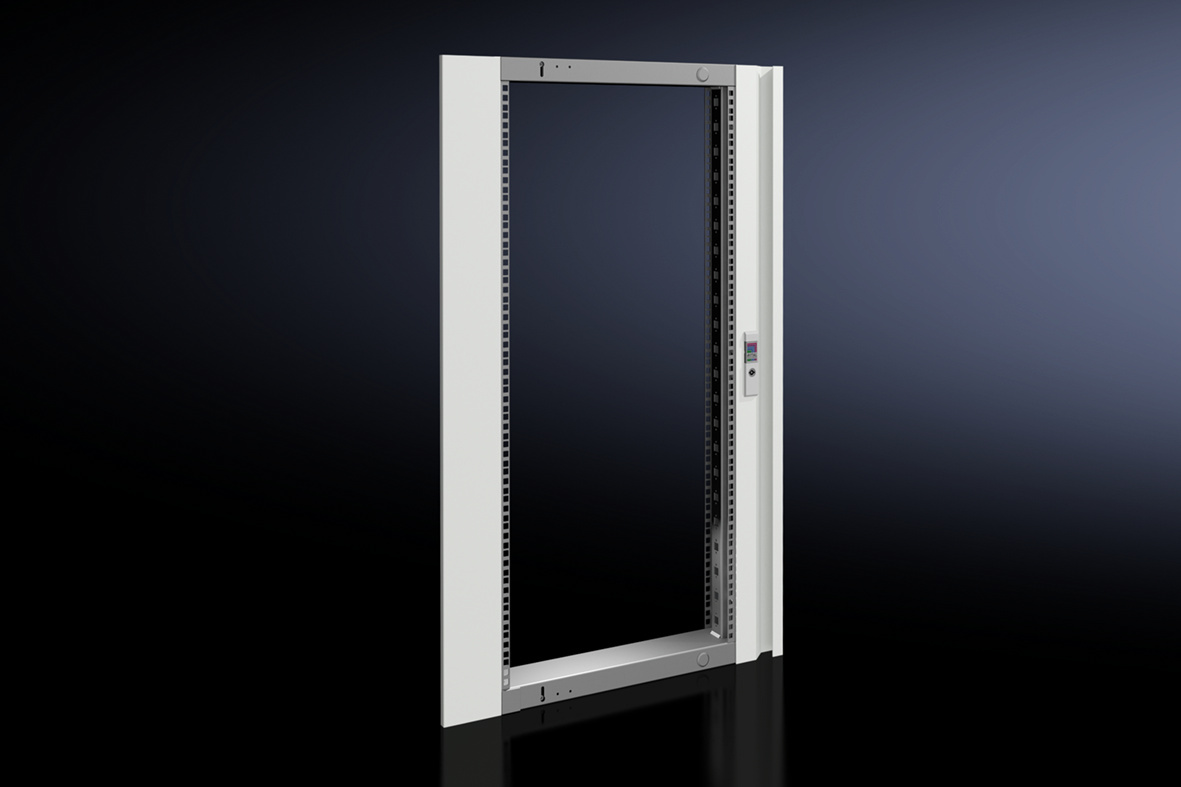

The Rittal VX 8619.030 is a swing frame, large, with trim panel on both sides, specifically designed for mounting 482.6 mm (48,3 cm ( 19 inch ))-installation components in enclosures. It is designed for enclosures with a width of exactly 800 mm and a minimum height of 1,200 mm, and provides space for 22 height units (HE). The product is made of sheet steel, with the frame galvanized and the trim panel painted in RAL 7035. The version with trim panels on both sides enables a visually uniform design of the enclosure front and simultaneously provides secure access to the mounted devices.

Applications

The swing frame is used in industrial and technical installations where flexible and secure mounting of network or control components is required. It is particularly suitable for enclosures in the VX system with a width of 800 mm. The minimum height of 1,200 mm ensures sufficient space for mounting the 22 HE and integrating the swing frame without mechanical restrictions.

Functions and Equipment in Detail

The swing frame is equipped with a locking system and a 130° hinge, enabling secure and stable latching. The trim panel is mounted on both sides, supporting a uniform visual appearance of the enclosure front. The mounting materials for attachment to the mounting kit are included in the delivery, allowing direct installation on the designated mounting kits for swing frames. Installation depends on the specific expansion situation, requiring system chassis with dimensions 23 x 64 mm.

Technology Explained Simply

The use of sheet steel as material ensures high mechanical stability and durability. The galvanized surface of the frame protects against corrosion, while the painted trim panel in RAL 7035 provides uniform and light-resistant coloration. The 130° hinge allows sufficient opening angle to easily access devices inside the enclosure. The integrated locking system ensures secure latching, protecting against unintentional opening.

Compatibility and Accessories

The swing frame is specifically designed for enclosures with a width of 800 mm and requires the appropriate mounting kits for large swing frames, 800 mm wide, for installation. Additionally, system chassis with dimensions 23 x 64 mm are required, with various lengths available (e.g. 400 mm, 500 mm, 600 mm, 800 mm). Zinc die-cast locking inserts with a length of 27 mm can be used additionally to support the locking function.

Installation and Mounting

Installation is carried out on the designated mounting kits for large swing frames, 800 mm wide. Mounting is done using the materials included in the delivery. Depending on the expansion situation, system chassis with dimensions 23 x 64 mm are required to ensure secure and stable installation.

Operational Advantages

The swing frame provides secure and flexible mounting of 48,3 cm ( 19 inch ) components. The dual-sided trim panel ensures a uniform visual appearance of the enclosure front, while the locking system and 130° hinge enable secure and convenient operation. The use of sheet steel and the galvanized frame ensure high mechanical stability and corrosion protection, extending the product's service life. Compatibility with VX system chassis and mounting kits enables standardized and efficient installation in existing enclosure systems.

General
ModelBlind plate on both sides
Materialsteel sheet
Surface protectionFrame: galvanised, faceplate: painted
ColourShutter: RAL 7035
Scope of deliveryIncluding closure system, 130° hinge, material for mounting on installation kit
Mounting noteDepending on the expansion situation, system chassis 23 x 64 mm are required
NoteTo lock the open swivel frame, the swivel frame locking mechanism is required. For further expansion options, see "Technology in detail"
Suitable forWidth: = 800 mm, Height: ≥ 1,200 mm
Height units22 HE


Product data sheet
Datasheet for Rittal 8619030, EAN: 4028177920361
