Rittal 8815000 VX bayed enclosure system, 1-door, W x H x D: 800x1200x500 mm

Your rating:
Average rating
product review for Rittal 8815000 VX bayed enclosure system, 1-door, W x H x D: 800x1200x500 mm
( 4.5 / 5 ) 44 ratings

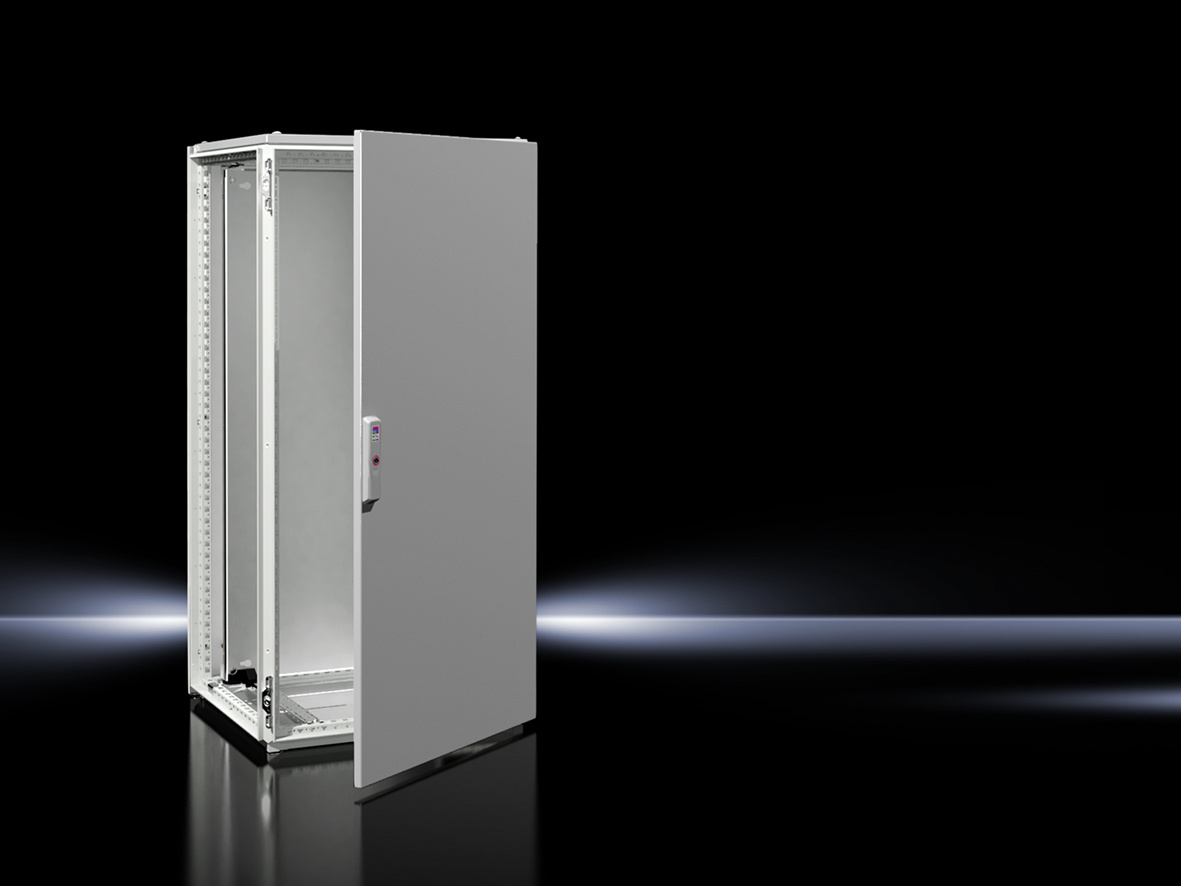

Rittal 8815000
This image may differ from the desired article.
Rittal 8815000Rittal 8815000Rittal 8815000Rittal 8815000Rittal 8815000Rittal 8815000Rittal 8815000
549,70 EUR
( 654,14 EUR incl. VAT )
≈ £460.10  |  ≈ $604.12
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 8815000 VX bayed enclosure system, 1-door, W x H x D: 800x1200x500 mm
Datasheet:file_download Download
Lieske Part No.:1441722
Mfg Part No: 8815000
UPC/EAN: 4028177813861
Weight:82.4 kg
Type:VX 8815.000

Product information for Rittal 8815000:

The Rittal VX 8815.000 is a bayed enclosure system made of sheet steel, designed for use in industrial and technical installations. It features a front door and is dimensioned at width 800 mm, height 1,200 mm, and depth 500 mm. The enclosure system is designed for efficient internal installation and offers a symmetrical profile frame construction with integrated mounting levels accessible from inside and outside. The frame profiles are perforated with a 25 mm grid, enabling flexible mounting of components. The mounting plate is laterally C-bent and depth-adjustable in 25 mm increments, ensuring adjustable mounting height for various components. The mounting plate measures 699 mm (W) × 1,096 mm (H) and is equipped with integrated plastic gliding pieces and reusable mounting rails.

Applications
This enclosure system is suitable for use in industrial environments where high mechanical load capacity and protection against dust and splashing water are required. It is bayable on all sides and can be integrated into larger enclosure installations. The load capacity reaches up to 15,000 N, enabling secure mounting even under high mechanical stress. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for indoor use and slightly damp environments. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), comply with international standards for protection against mechanical influences and environmental conditions. The IK code IK10 indicates high mechanical resistance against impact and shock.

Functions and Equipment in Detail
The enclosure system consists of an enclosure frame made of sheet steel with a wall thickness of 1.5 mm, a door made of 2.0 mm sheet steel, a roof, rear panel, and floor sheets, also made of 1.5 mm sheet steel. The mounting plate is made of 3.0 mm sheet steel. The surface of the enclosure frame is dip-primed, while the door, roof, and rear panel are dip-primed and externally powder-coated with a textured finish. The mounting plate and floor sheets are galvanized. The color corresponds to RAL 7035. The door is fitted with a foamed PU foam seal and can be retrofitted tool-free to an opening angle of 180°; the standard opening angle is 130°. The door is equipped with a 3 mm double-bar lock, which is four-point locking, and the hinges are fitted with non-removable hinge pins. The door swing is on the right, but can be changed to the left. The clearance from the floor is 17 mm.

Technology Explained Simply
The construction of the enclosure system enables space-saving and quick mounting of components. The integrated blind rivet nuts M6 in the frame allow protection-rated fastening of fittings. The horizontal profiles feature a groove above the PU foam seal, providing additional protection. The floor sheets are triple-divided, removable, and replaceable, enabling easy cleaning and maintenance. The rear panel and roof plate are removable and fitted with PU foam seals to ensure a tight seal. The rear panel includes a positioning aid, and the roof is equipped with roof mounting screws M12. The electrical conductivity between frame, rear panel, roof, and floor sheets ensures automatic equipotential bonding according to DIN 62 208, guaranteeing safe earthing.

Compatibility and Accessories
The enclosure system is compatible with various accessories that meet individual requirements for enclosure installation. These include circuit diagram pockets for various subcomponents, levelling feet with an adjustment height of 18–43 mm, cable routing spaces, mounting brackets for the external mounting level, partial mounting plates, C-profile rails, transport eyes, dust protection strips, TFT/monitor holders, comfort handles, cable entry ferrules in various diameters, multi-locking systems for padlocks, plug-through ferrules, multitools, and system chassis. These accessories enable flexible and application-specific equipment of the enclosure system.

Mounting and Installation
Mounting is performed via the integrated mounting levels and the 25 mm grid perforation. The mounting plate is depth-adjustable, allowing adaptation to different components. The floor sheets are removable, enabling fastening to the base via the inner side of the enclosure. Mounting is done using the included mounting rails (2 pieces, 18 x 39 mm) and the 3 mm double-bar lock.

Advantages in Operation
The enclosure system offers high mechanical stability, reliable protection rating, and flexible mounting. The integrated mounting levels and the 25 mm grid perforation simplify the installation of components. The removable rear panel and roof facilitate maintenance and inspection. The electrical conductivity between components ensures safe earthing. The use of sheet steel and robust construction ensure long service life and high reliability in industrial applications. The PCF values (Cradle-to-Gate) amount to 234.99 kg CO2 eq (Category B), reflecting the environmental impact of the product.

The enclosure system is available in a packaging unit of 1 piece. The net weight is 80.15 kg, the gross weight 82.4 kg. The tariff code is 94032080, the EAN number 4028177813861. The manufacturer’s number is 8815000, the type VX 8815.000. The surface is marked with a QR code on the roof, door, mounting plate, rear panel, and type plate, enabling unique identification.

General
MaterialCabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm
Surface protectionCabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised
ColourRAL 7035
Scope of deliverycabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar
Width800 mm
Height1.200 mm
Depth500 mm
Mounting plate dimensions (W x H)699 mm x 1.096 mm
Degree of protection IP according to EN 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK10
Number of doors1
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)234.99 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8815000, EAN: 4028177813861

Questions & answers

What is the delivery time of Rittal 8815000 VX bayed enclosure system, 1-door, W x H x D: 800x1200x500 mm?

The article Rittal 8815000 VX bayed enclosure system, 1-door, W x H x D: 800x1200x500 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8815000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8815000 VX bayed enclosure system, 1-door, W x H x D: 800x1200x500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8815000 VX bayed enclosure system, 1-door, W x H x D: 800x1200x500 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
