Rittal 8617570 VX partial mounting plate, W x H: 700x400 mm

Your rating:
Average rating
product review for Rittal 8617570 VX partial mounting plate, W x H: 700x400 mm
( 4.4 / 5 ) 30 ratings

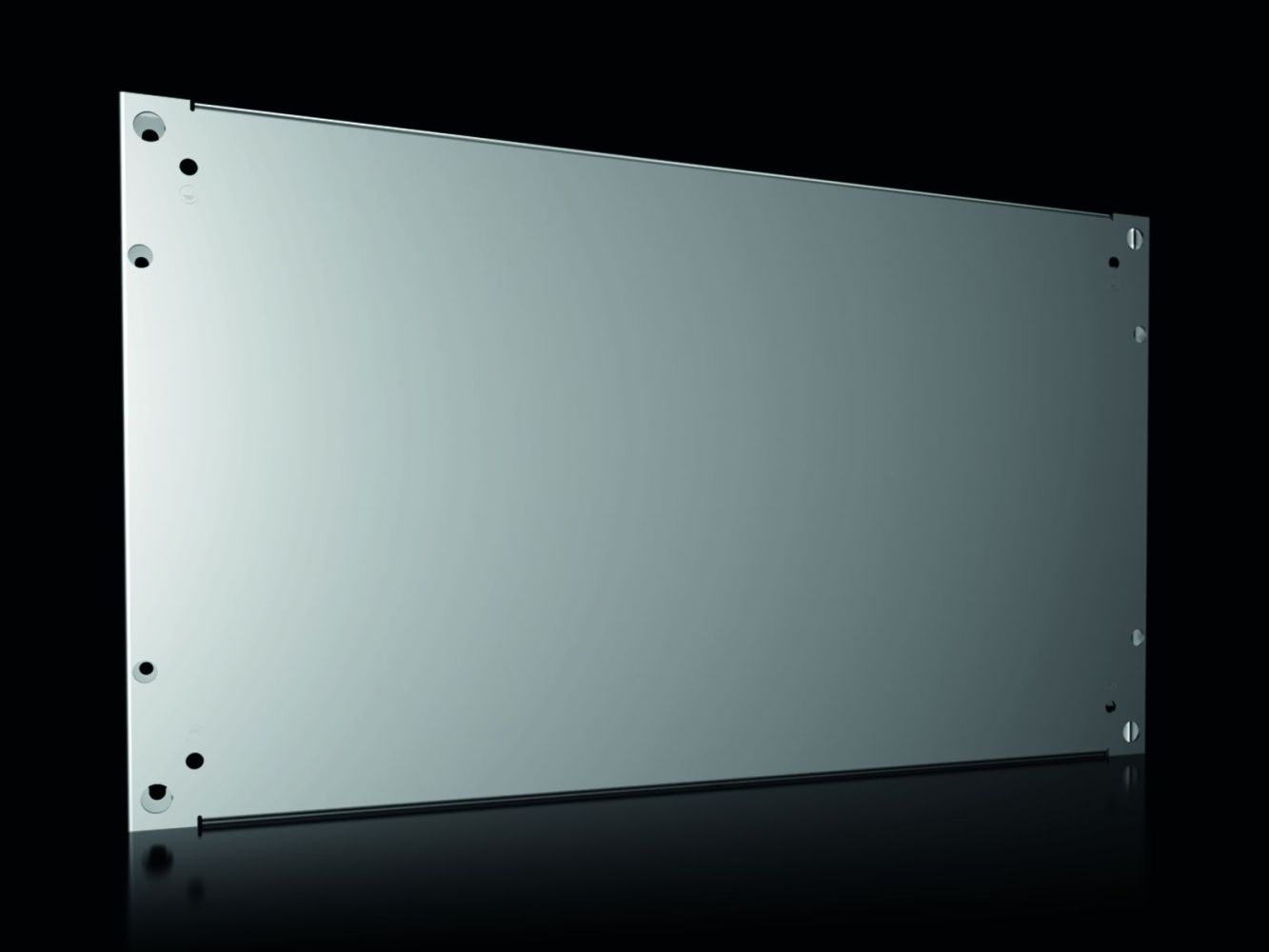

Rittal 8617570
This image may differ from the desired article.
Rittal 8617570Rittal 8617570Rittal 8617570
51,41 EUR
( 61,18 EUR incl. VAT )
≈ £43.03  |  ≈ $56.50
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8617570 VX partial mounting plate, W x H: 700x400 mm
Datasheet:file_download Download
Lieske Part No.:1440876
Mfg Part No: 8617570
UPC/EAN: 4028177919426
Weight:7.3 kg
Type:VX 8617.570

Product information for Rittal 8617570:

The Rittal VX 8617.570 is a partial mounting plate made of steel sheet with a thickness of 2.5 mm, specifically designed for use in enclosures of type VX, VX SE and PC. The plate serves to mount additional components within the enclosure and provides a flexible mounting surface for various applications. With dimensions of 700 mm width and 400 mm depth, it is designed for enclosures with a door width of 800 mm. The surface is zinc-coated, ensuring a corrosion-resistant and durable coating.

Applications
The partial mounting plate is used in industrial electrical installations where additional mounting surfaces are required for modules, controls, connection lines or other electrical components. It is particularly suitable for enclosures with a depth of 500 mm or 800 mm, where mounting can be done both vertically and horizontally. The flexible arrangement allows for optimal use of interior space and organized placement of devices.

Functions and Equipment in Detail
Mounting is done directly to the enclosure profile, secured via designated mounting points. In a pre-assembled setup, the plate can be attached at any mounting level within the enclosure using system chassis. For multi-level installations, where multiple partial mounting plates are arranged in sequence, a swivelling version with hinge mounting is available. This allows quick access to rear levels without complete disassembly. The delivery includes the mounting hardware required for installation.

Technology Explained Simply
The plate is made of robust steel sheet, designed for use in industrial environments. The zinc coating protects the material from corrosion and ensures a long service life. The dimensions of 700 mm width and 400 mm depth are matched to the standard dimensions of VX enclosure types. Mounting is modular and can vary according to requirements – either as a vertical wall or horizontal base surface. The hinge mounting in multi-level arrangements provides a practical solution for maintenance access.

Compatibility and Accessories
The partial mounting plate is intended for enclosure types VX, VX SE and PC. For installation in VX SE, PC and IW, the VX adapter rail is required. The plate is designed for enclosures with a door width of 800 mm and adapts to enclosure depths of 500 mm or 800 mm. Compatibility with the specified enclosure types ensures secure and standardized mounting.

Mounting and Installation
Installation is done by securing to the enclosure profile. In pre-assembled setups, the plate is mounted via system chassis, allowing flexible positioning within the enclosure. The hinge mounting enables a swivelling design in multi-level arrangements, facilitating access to rear levels. The included mounting hardware is sufficient for installation.

Advantages in Operation
The partial mounting plate provides a stable and flexible mounting surface that optimally utilizes the interior space of the enclosure. The swivelling version in multi-level installations improves maintainability and reduces time required for inspections. The zinc coating ensures high corrosion resistance, extending service life in industrial use. Compatibility with the specified enclosure types and modular mounting allow flexible adaptation to different requirements.

General
MaterialSheet steel, 2.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Suitable for door width800 mm
Mounting optionsInstallation can be either vertical as upright mounting surface or horizontal as flat floor; mounting is directly to cabinet profile; with pre-assembled construction, mounting is via system chassis at any mounting level within the cabinet; with multi-level installation of partial mounting plates in sequence, these can be hinged for quick access to rear levels
NoteFor installation in VX SE, PC, IW, the VX adapter rail is required
Width700 mm
Depth400 mm
Suitable for housing typeVX, VX SE, PC
Suitable forHousing type: VX, VX SE, PC, width: = 800 mm, depth: = 500 mm, = 800 mm
PCF/VE (Cradle-to-Gate)28.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8617570, EAN: 4028177919426

Questions & answers

What is the delivery time of Rittal 8617570 VX partial mounting plate, W x H: 700x400 mm?

The article Rittal 8617570 VX partial mounting plate, W x H: 700x400 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617570 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617570 VX partial mounting plate, W x H: 700x400 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617570 VX partial mounting plate, W x H: 700x400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
